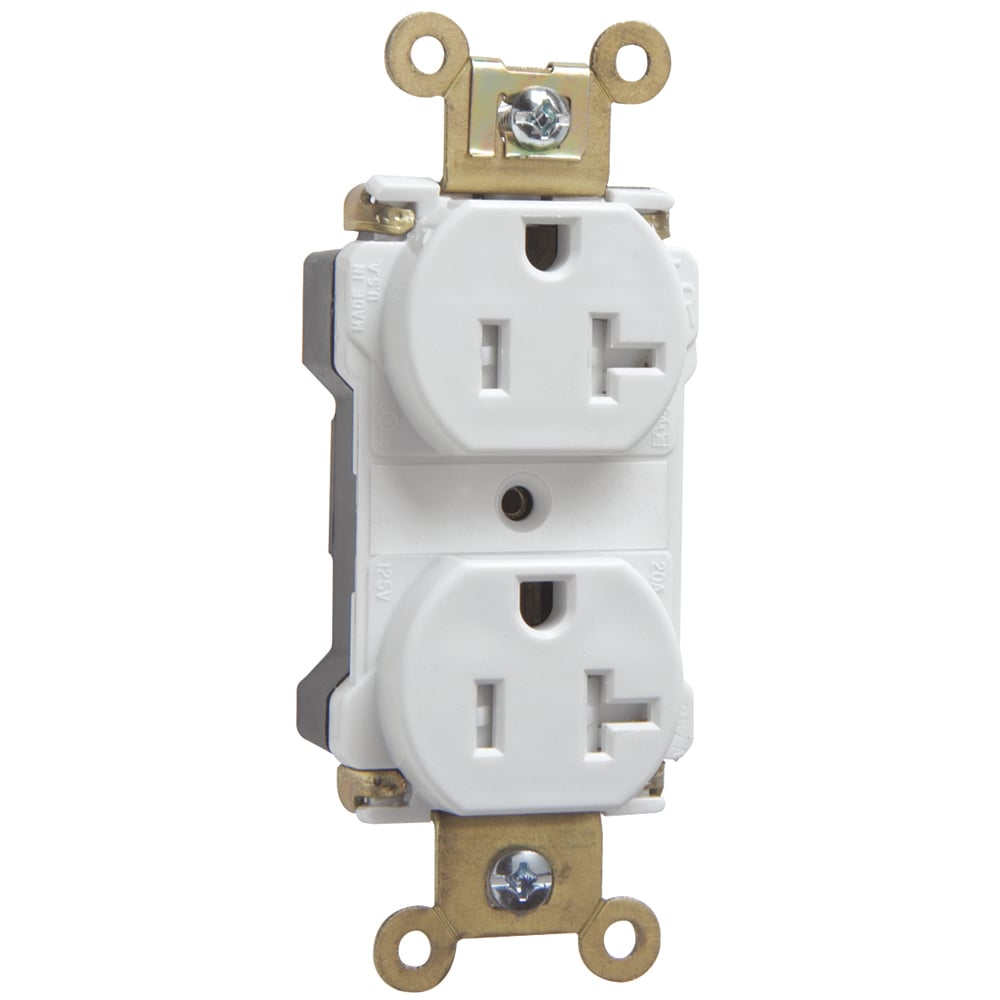

PTTR63W PlugTail Industrial Extra Heavy Duty Spec Grade Receptacle, 20 Amp, 125V, White
MFR: Legrand-Pass & Seymour
MFR #: PTTR63W
UPC: 785007860436
Item #: 74528
PTTR63W PlugTail Industrial Extra Heavy Duty Spec Grade Receptacle, 20 Amp, 125V, White
MFR #: PTTR63W
UPC: 785007860436
Item #: 74528
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$45.57
each
PlugTail Registered Industrial Extra Heavy-Duty Spec Grade Tamper-Resistant Receptacles, 20A, 125A
- Catalog Number
- PTTR63W
- Manufacturer
- Legrand-Pass & Seymour
- Brand
- Legrand-Pass & Seymour
- Country of Origin
- United States
- Made in USA
- Yes
- Amperage Rating
- 20
- Application
- Commercial
- Color
- White
- Material
- Nylon
- Mounting
- Wall
- NEMA Rating
- 5
- Number of Poles
- 2
- Number of Wires
- 3
- Special Features
- Dual mechanical shutter system to help prevent insertion of foreign objects. Exclusive patented feature, circuit label on face allows permanent circuit identification. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground.
- Standard
- cULus UL498
- UPC
- 785007860436
- GTIN
- 00785007860436
- Item Type
- PlugTail™ Tamper-Resistant Spec Grade Receptacle, Extra Heavy-Duty
- Size
- 1.625 L x .866 W x 3.281 H
- Environmental Conditions
- Flammability: UL94 V2
- Temperature Rating
- -40° - 60° C
- Voltage Rating
- 125
- Wire Size
- 12 AWG
