Appleton

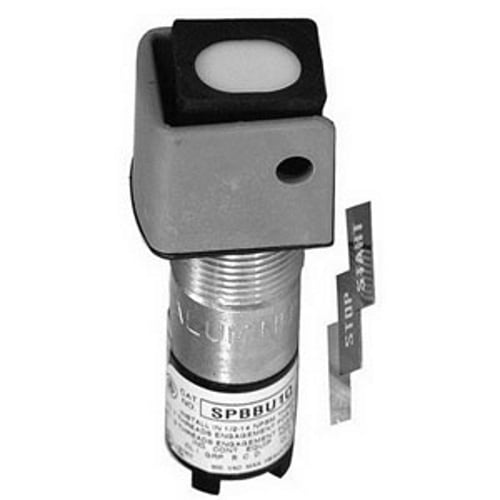

SPBBU1Q Heavy Duty Factory Sealed Universal Non-Illuminated Pushbutton With 1/2 in to 3/4 in Enlarger, Weather Boot, Guard, Start, Stop and Blank Nameplates, 1NO-1NC Contact

MFR:
Appleton Electric
MFR #:
SPBBU1Q
UPC:
781381634441
Item #:
74304

Availability

Location Available Qty
Available Available to Order
$236.03 each

Contender Single Push Button Switch, Action: Momentary, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Mounting: Surface Mount With 1/2 IN NPSM, Material: Copperfree (4/10 of 1 PCT Maximum) Aluminum, Finish: Natural, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors

Manuals and Documentation
Catalog Number SPBBU1Q
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Action Momentary
Application For Remote Control Of Motors
Contact Configuration 1 NO/1 NC
Contact Rating 10 AMP At 600 VAC
Mounting Surface
Special Features Finish is epoxy powdercoat for enhanced corrosion resistance; Large backbox for ample wiring room; Ground screw installed in bodies for ground continuity; Corrosion resistant stainless steel hex head captive screws hold covers to body; Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Smooth, rounded integral bushing in each hub protects conductor insulation; Push button contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Neoprene buttons
Standard UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
UPC 781381634441
GTIN 00781381634441
Item Type Single Push Button Switch
