100029C Platinum Tools EXO Crimp Frame Unshielded Connector, ezEX-RJ45 Connector, 23 to 22 AWG Solid/Stranded Cable, Cat 5E/6/6A
- MFR:
- NSi Industries
- MFR #:
- 100029C
- UPC:
- 849160008637
- Item #:
- 742979
100029C Platinum Tools EXO Crimp Frame Unshielded Connector, ezEX-RJ45 Connector, 23 to 22 AWG Solid/Stranded Cable, Cat 5E/6/6A
- MFR #:
- 100029C
- UPC:
- 849160008637
- Item #:
- 742979
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$50.65
each

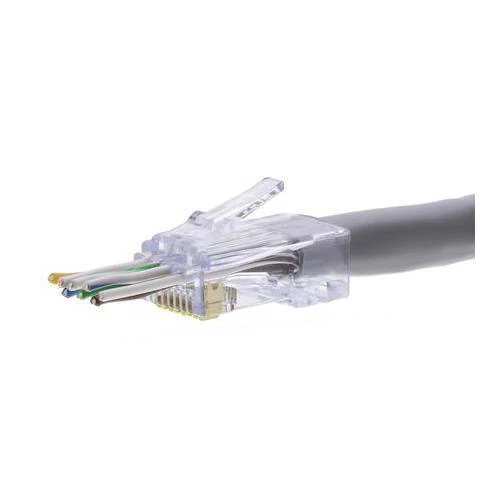

The patented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).
Manuals and Documentation
Features
- ezEX-RJ45 (ezEX48 series) pass-through RJ45 connectors
- Retail-ready clamshell packaging
- 0.043 in 0.048 in (1.09 1.22mm) max cable outer diameter
- Compatible with solid or stranded 23 - 22AWG twisted pair cable
- 50 umgold plated contacts
- Hi-Lo stagger to isolate each conductor
| Manufacturer Part Number | 100029C |
| Brand | Platinum Tools® |
| Manufacturer | NSi Industries |
| UPC | 849160008637 |
| Country Of Origin | US |
| Cable Type | Solid/Stranded |
| Category Type | Cat 5E/6/6A |
| Connector Type | ezEX-RJ45® |
| Type | Unshielded |
| Cable Size | 23 to 22 AWG |
| Alternative Part Number | 14798326 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 Year |
| Standards Approvals | RoHS Compliant | UL File No. E188111 | FCC Compliant | TIA Compliant | TAA Compliant | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Application | Cable Installation Applications |
