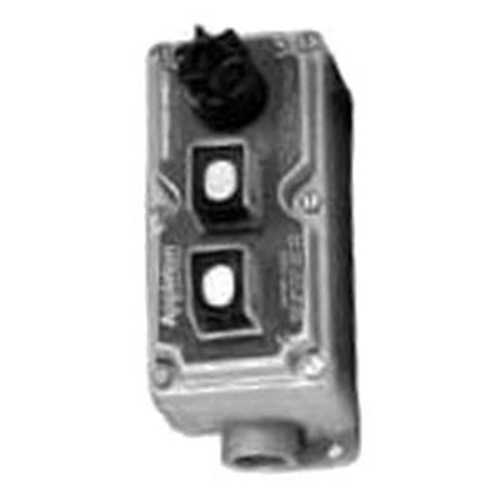

Pilot Light Station, 3-Device Combination Pushbutton, Series: EFD, 600 VAC, 10 A, Start/Stop Legend, NEMA 3/7CD/9EFG NEMA, Malleable Iron, 8.13 in H x 3.5 in W x 5.5 in D Dimensions
- MFR:
- Appleton Electric
- MFR #:
- EFDCL75-J1U2
- UPC:
- 781381133036
- Item #:
- 740269
Pilot Light Station, 3-Device Combination Pushbutton, Series: EFD, 600 VAC, 10 A, Start/Stop Legend, NEMA 3/7CD/9EFG NEMA, Malleable Iron, 8.13 in H x 3.5 in W x 5.5 in D Dimensions
- MFR #:
- EFDCL75-J1U2
- UPC:
- 781381133036
- Item #:
- 740269
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,078.27
each
EFDCL Series 3 Device Pilot Light, Voltage Rating: 600 VAC, Amperage Rating: 10 AMP, Enclosure: NEMA 3, 7CD, 9EFG, Conduit Connection: 3/4 IN Feed-Thru, Consist Of: (1) Pilot Light, (2) Pushbutton, Material: Malleable Iron Body With Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Lamp Type: S6, Height: 8.13 IN, Width: 3.5 IN, Depth: 5.5 IN, Legend: Start/Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, D, Class I, Division 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Manuals and Documentation
| Catalog Number | EFDCL75-J1U2 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 10 |
| Application | For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors |
| Enclosure | NEMA 3, 7CD, 9EFG |
| Special Features | Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered |
| Standard | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, D, Class I, Division 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| UPC | 781381133036 |
| GTIN | 00781381133036 |
| Item Type | EFDCL Series 3 Device Pilot Light |
| Voltage Rating | 600 |
