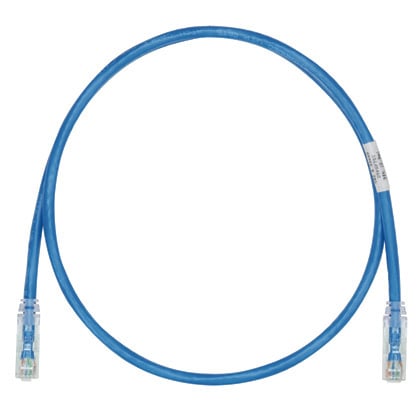

UTP28SP12BU PanNet TX6-28 Small Diameter Patch Cord, Cat 6/Class E, 28 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 12 ft L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTP28SP12BU
- UPC:
- 074983652983
- Item #:
- 740029
UTP28SP12BU PanNet TX6-28 Small Diameter Patch Cord, Cat 6/Class E, 28 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 12 ft L Cord, Blue
- MFR #:
- UTP28SP12BU
- UPC:
- 074983652983
- Item #:
- 740029
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$26.96
each
The TX6-28 Cat 6 UTP Patch Cord is a 12-Foot, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
| Catalog Number | UTP28SP12BU |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Color | Blue |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 |
| UPC | 074983652983 |
| GTIN | 00074983652983 |
| Item Type | Patch Cord |
| Length | 12.00 |
| Length UOM | Inch |
| Outside Diameter | 0.15 IN |
| Temperature Rating | 167 °F |
| Wire Size | 28 |
