Telemecanique

XUX8AKSAT16 OsiSense XU Simply Easy 3-Wire Compact Photoelectric Sensor With Reverse Polarity Protection and Background Suppression, Rectangle Shape, 6.56 ft, Infrared Sensing Beam, <3.5 ms Response, NPN/PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUX8AKSAT16
Item #:
739806

Availability

Location Available Qty
Available Available to Order
$439.42 each

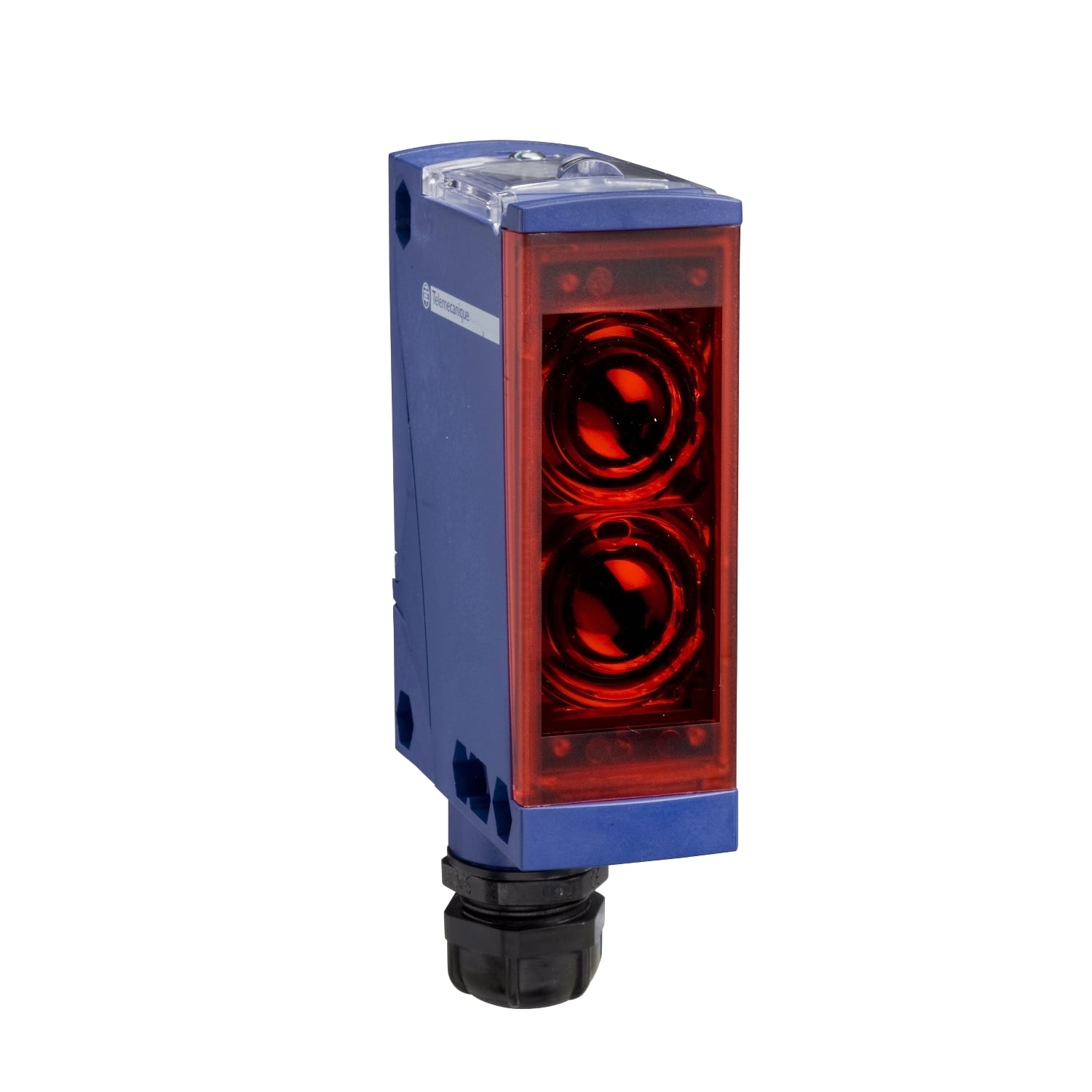

This photo-electric sensor is part of the XU range. It is a compact design, 92mm x 77mm, plastic sensor, with ISO 16 cable gland terminal connections. It is a diffuse system sensor with adjustable background suppression, with infrared transmission. 2m nominal sensing distance with high accuracy. 3-wire, PNP or NPN programmable, with NO or NC programmable function. This sensor is suitable for wrapping and outer wrapping applications.

Manuals and Documentation
Catalog Number XUX8AKSAT16
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Long sensing distance with high accuracy
Connection Screw-clamp terminals, 1 x 0.75...1 x 1.5 mm²
Enclosure IP30 (WITH COVER OPEN) CONFORMING TO IEC 60529-IP65 (DOUBLE INSULATION) CONFORMING TO IEC 60529-IP67 (DOUBLE INSULATION) CONFORMING TO IEC 60529,PC
Output PNP or NPN;1 NO or 1 NC programmable;Discrete;Solid state
Sensing Range 2-2 M,> 3.28...16.4 FT (> 1...5 M)
Special Features Supply on 1 LED green);instability 1 LED red);output state 1 LED yellow)
Standard CE-CSA-UL,IP30 IEC 60529 WITH COVER OPEN)-IP65 IEC 60529 DOUBLE INSULATION)-IP67 IEC 60529 DOUBLE INSULATION)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7052778&lang=en-us
GTIN 03389119039895
Item Type General purpose single mode;Diffuse with background suppression;Compact 92 x 71;Photo-electric sensor
Size COMPACT 92 X 71
Operating Temperature -25-55 A�C
Voltage Rating 12...24 V DC reverse polarity protection
