Mersen

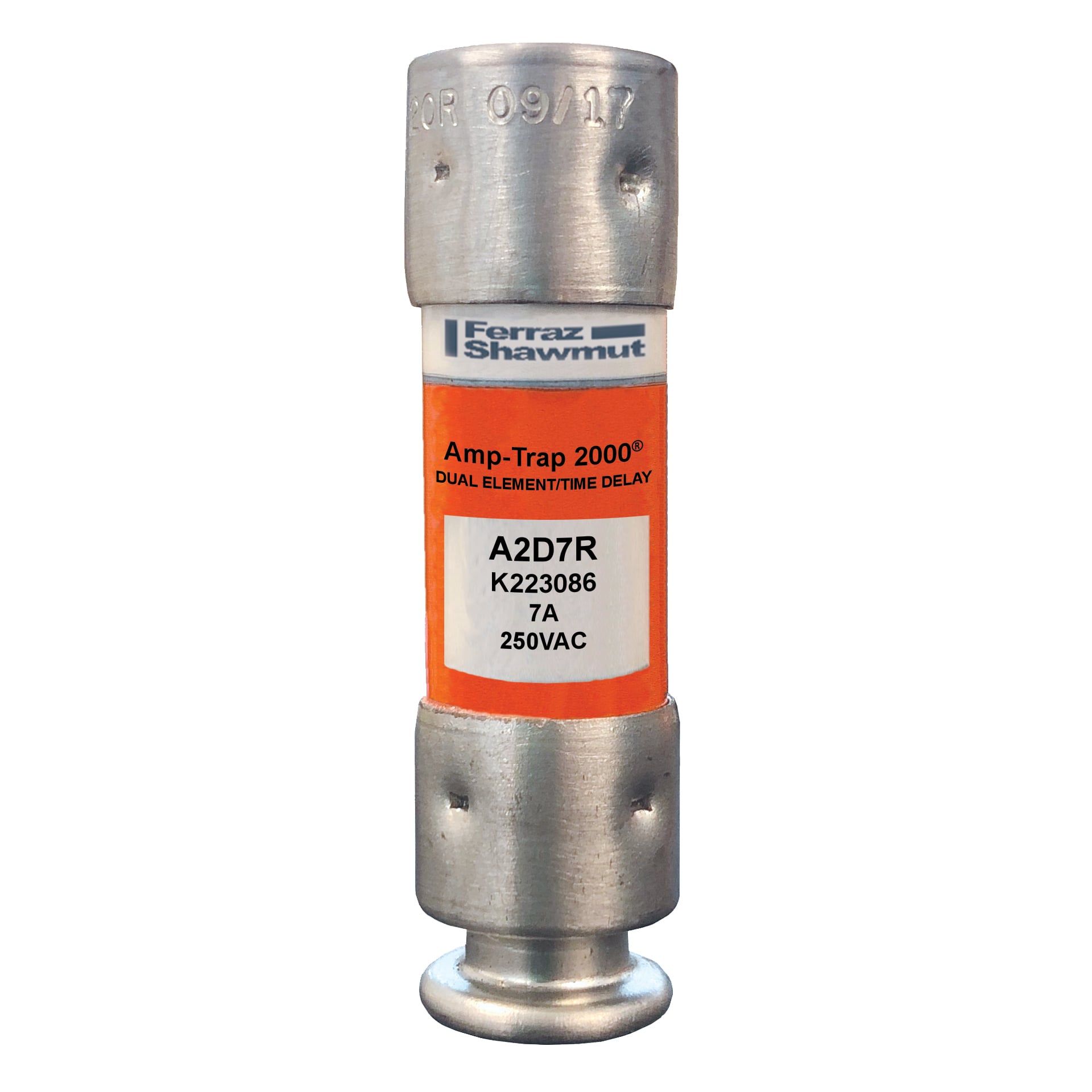

A2D7R Amp-Trap 2000 SmartSpot Current Limiting Low Voltage North American Time Delay Power Fuse, 7 A, 250 V AC, 200 kA Interrupt, RK1 Class, Cylindrical Body

MFR:
Mersen
MFR #:
A2D7R
UPC:
782001990770
Item #:
739494

Availability

Location Available Qty
Available Available to Order

Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 7A Ferrule Amp-Trap 2000

Manuals and Documentation
Catalog Number A2D7R
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 7
Application Motors Safety switches Transformers Branch circuit protection Disconnects Control panels All general-purpose circuits
Connection Ferrule
Interrupt Rating 200 KA
Mounting Clip
Special Features Non-indicating or Solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Recommended for Arc Flash energy reduction Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs” Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label gives instant brand recognition Reduced inventory by taking the place of class RK5, K, and H fuses Metal-embossed date and catalog number for easier traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings
Standard UL listed to standard 248-12 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.12
UPC 782001990770
GTIN 00782001990770
Item Type Class RK1
Size 2 x 0.56
Voltage Rating 250
