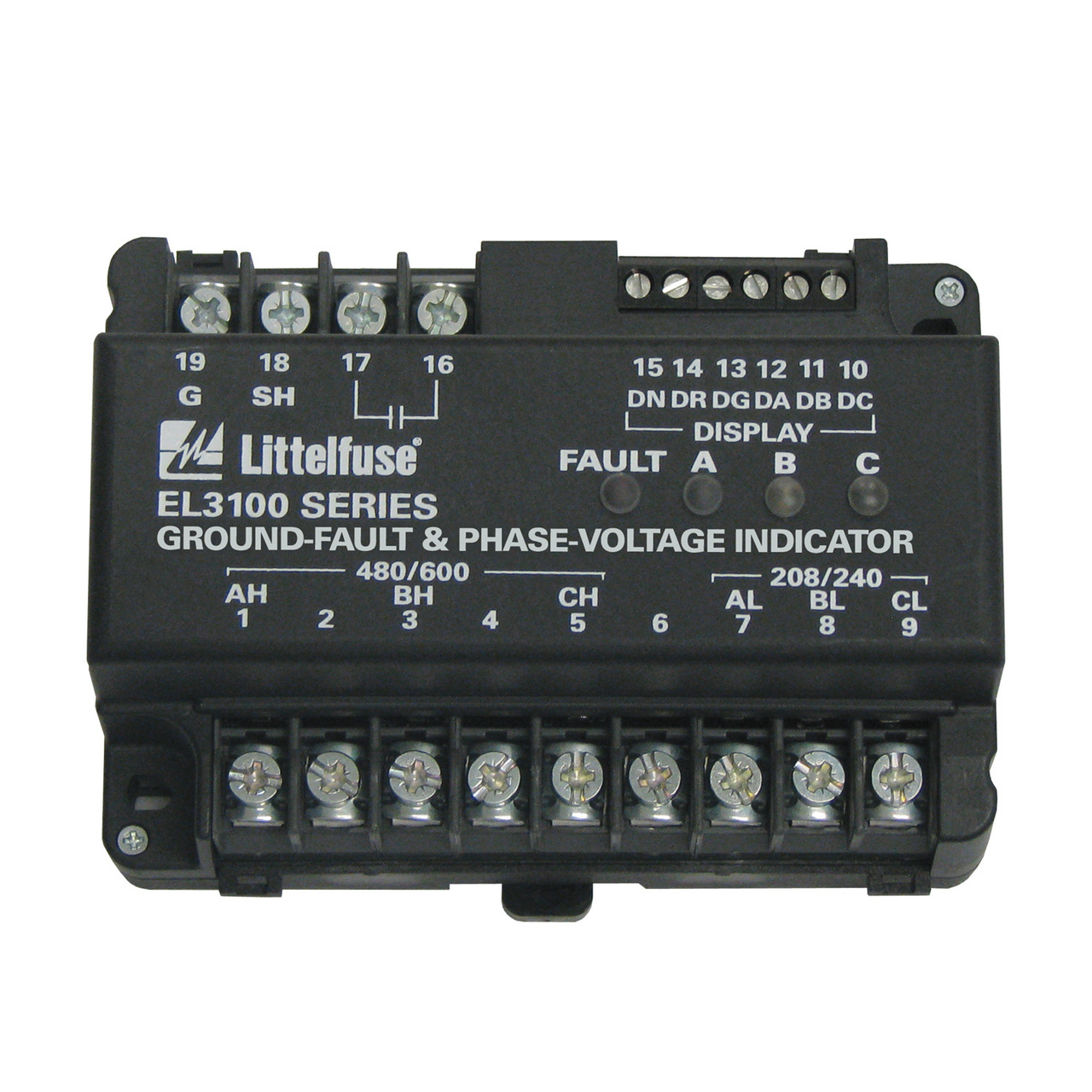

EL3100-00 Self-Powered Ground-Fault/Phase-Voltage Indicator, 208/240/480/600 V AC, DIN Rail Mount
- MFR:
- Littelfuse
- MFR #:
- EL3100-00
- UPC:
- 079458825527
- Item #:
- 738995
EL3100-00 Self-Powered Ground-Fault/Phase-Voltage Indicator, 208/240/480/600 V AC, DIN Rail Mount
- MFR #:
- EL3100-00
- UPC:
- 079458825527
- Item #:
- 738995
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Operates on AC ungrounded systems. The EL3100 is a self-powered ground-fault and phase voltage indication system for 3-phase systems. The EL3100 meets the National Electrical Code (NEC, Article 250.21(B)) and the Canadian Electrical Code (CEC) requirements for ground detectors for ungrounded alternating-current systems. Voltage connections are provided on the EL3100 for 208, 240, 480, and 600-V systems. Three green LED’s on the EL3100 indicate the presence of phase-to-ground voltage and one red LED indicates a ground fault. The EL3100 can operate stand-alone or with up to five remote LED indicators. A solid-state relay output provides indication of a ground fault. The output relay is closed when the 3-phase neutral voltage shifts as the result of ground leakage.
Manuals and Documentation
| Catalog Number | EL3100-00 |
| Manufacturer | Littelfuse |
| Brand | Littelfuse |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 079458825527 |
| GTIN | 00079458825527 |
