Discontinued
SCHNEIDER ELECTRIC

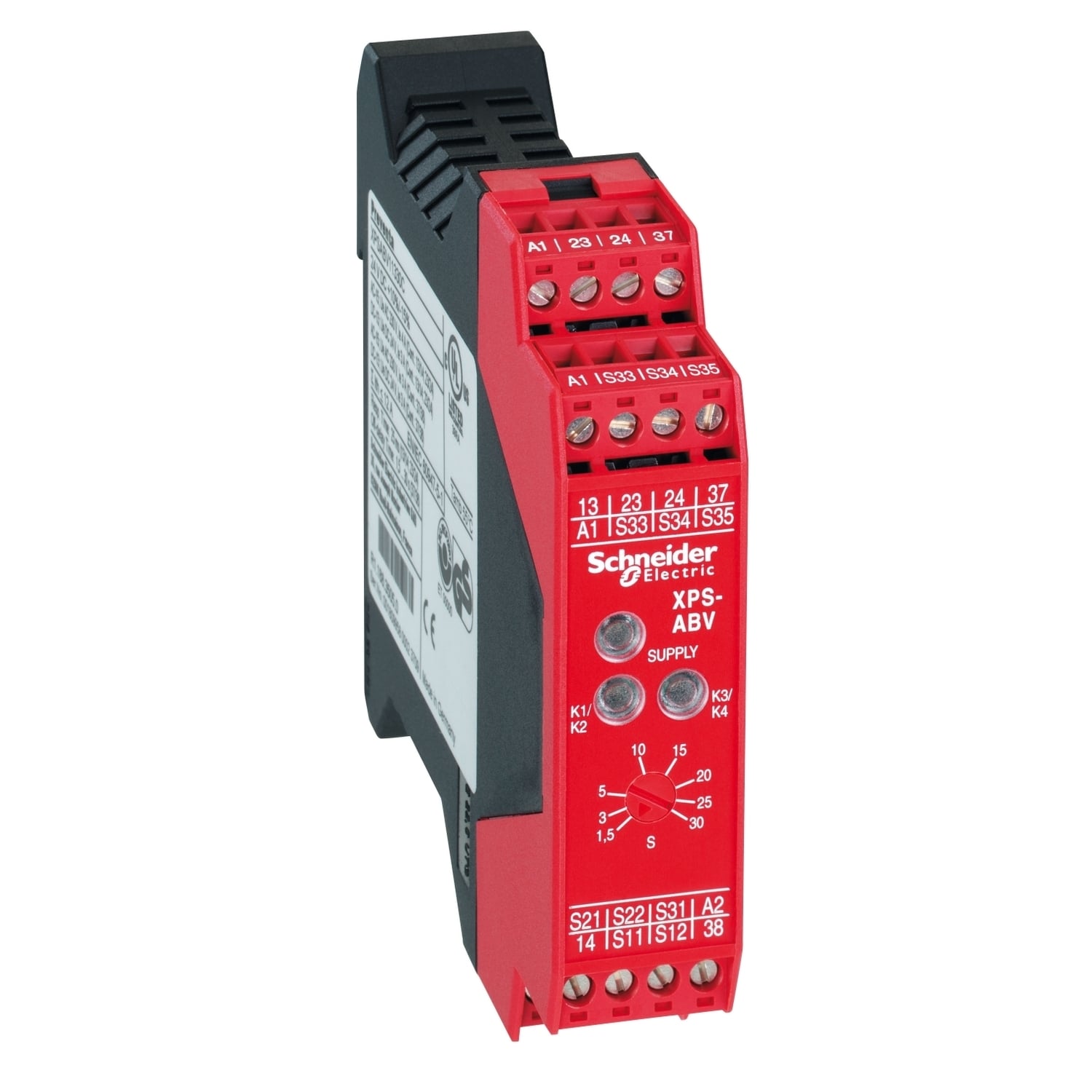

XPSABV1133P Preventa Safety Relay With (3) LEDs, 1NO-2NO 1 Form A/2 Form A Contact, 24 V DC V Coil

MFR:
Schneider Electric
MFR #:
XPSABV1133P
Item #:
73794

Availability

Location Available Qty
Available Available to Order

This XPSABV safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 (instantaneous safety outputs), PL d/Category 3 (time delayed safety outputs) conforming to EN/ISO 13849-1. It meets also the requirements of SILCL3 (instantaneous safety outputs) and SILCL2 (time delayed safety outputs) conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring Emergency stop circuits conforming to EN/ISO 13850 and EN/IEC 60204-1 standards, and electrical monitoring of switches in protection devices conforming to EN/ISO 14119 standard. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.

Manuals and Documentation
Catalog Number XPSABV1133P
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Germany
Made in USA No
Application For emergency stop and switch monitoring
Connection Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end;captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end;captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel;captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel;captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end;captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² flexible without cable end;captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel;captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1 mm² flexible with cable end, with double bezel
Mounting Din Rail
Output Relay instantaneous opening, 2 NO, volt-free;relay time delay opening, 1 NO, volt-free
Power Supply 24 V DC - 15...10 %
Standard MTTFd = 53 years instantaneous safety outputs EN/ISO 13849-1;MTTFd = 53 years time delay safety outputs EN/ISO 13849-1;DC > 99 % instantaneous safety outputs EN/ISO 13849-1;DC = 60...90 % time delay safety outputs EN/ISO 13849-1;PFHd = 3E-8 1/h instantaneous safety outputs EN/IEC 62061;PFHd = 2E-7 1/h time delay safety outputs EN/IEC 62061;Can reach PL d/category 3 time delay safety outputs EN/ISO 13849-1;can reach PL e/category 4 instantaneous safety outputs EN/ISO 13849-1;can reach SILCL 3 instantaneous safety outputs EN/IEC 62061;can reach SILCL 2 time delay safety outputs EN/IEC 62061
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=45167969&lang=en-us
GTIN 03389118376076
Item Type Preventa safety module
