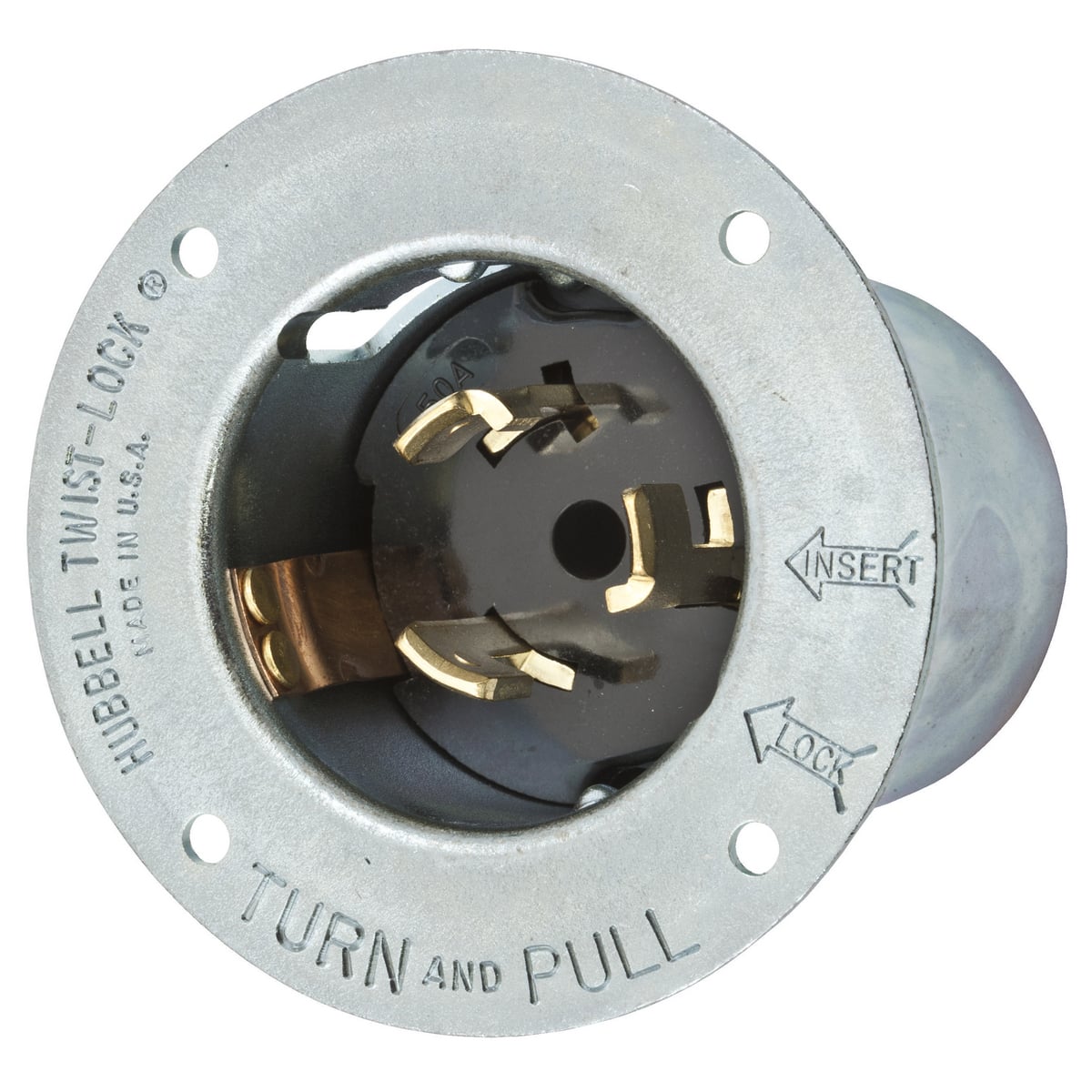

CS8375 3-Phase Extra Heavy Duty Grounding Male Single Standard Screw Mount Locking Flanged Inlet, 250 V AC, 50 A, 3 Poles, 4 Wires, Metallic
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- CS8375
- UPC:
- 783585829098
- Item #:
- 73785
CS8375 3-Phase Extra Heavy Duty Grounding Male Single Standard Screw Mount Locking Flanged Inlet, 250 V AC, 50 A, 3 Poles, 4 Wires, Metallic
- MFR #:
- CS8375
- UPC:
- 783585829098
- Item #:
- 73785
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$181.82
each
Hubbells 50 Amp Twist-Lock Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grips offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
Manuals and Documentation
| Catalog Number | CS8375 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 50 |
| Application | Extra Heavy Duty Industrial |
| Color | Metallic |
| Connection | Pressure Screw Terminals |
| Material | Steel, Zinc Plated |
| Mounting | Screw |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| UPC | 783585829098 |
| GTIN | 00783585829098 |
| Item Type | Flanged Inlet |
| Size | 2.17 in x 3.50 in x 2.62 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 3-Phase Delta 250 |
| Wattage | 12,500 W |
| Wire Size | #10 AWG to #6 AWG |
| Cross Reference Products | CS8375 |
