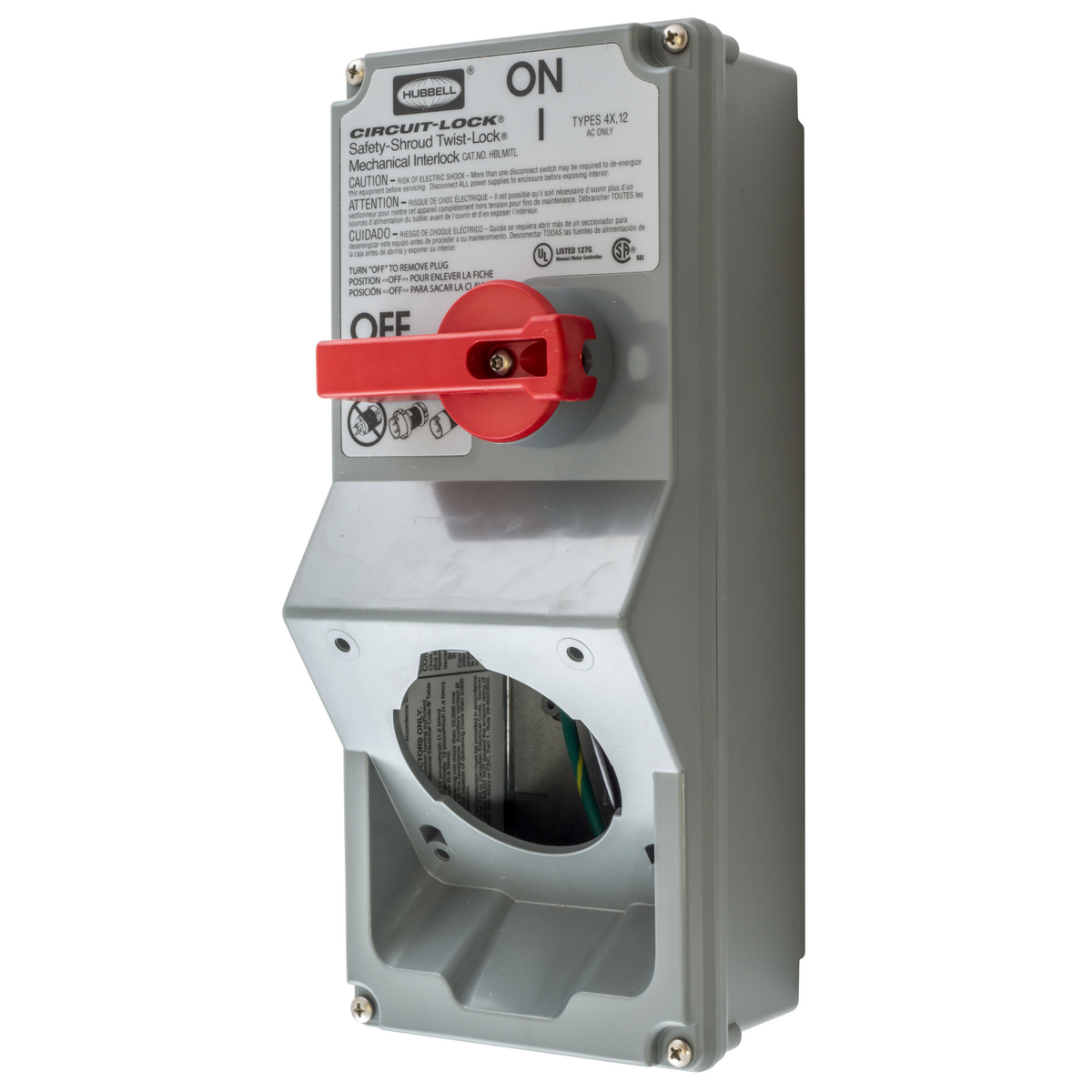

HBLMITL 3-Pole 2-Position Non-Metallic Standard Switched Unfused Mechanical Interlock, 4.19 in H x 11.44 in W x 4.88 in D, Composite
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBLMITL
- UPC:
- 783585176802
- Item #:
- 7372
HBLMITL 3-Pole 2-Position Non-Metallic Standard Switched Unfused Mechanical Interlock, 4.19 in H x 11.44 in W x 4.88 in D, Composite
- MFR #:
- HBLMITL
- UPC:
- 783585176802
- Item #:
- 7372
Availability
| Location | Available Qty |
|---|---|
| Available | 11 ea |

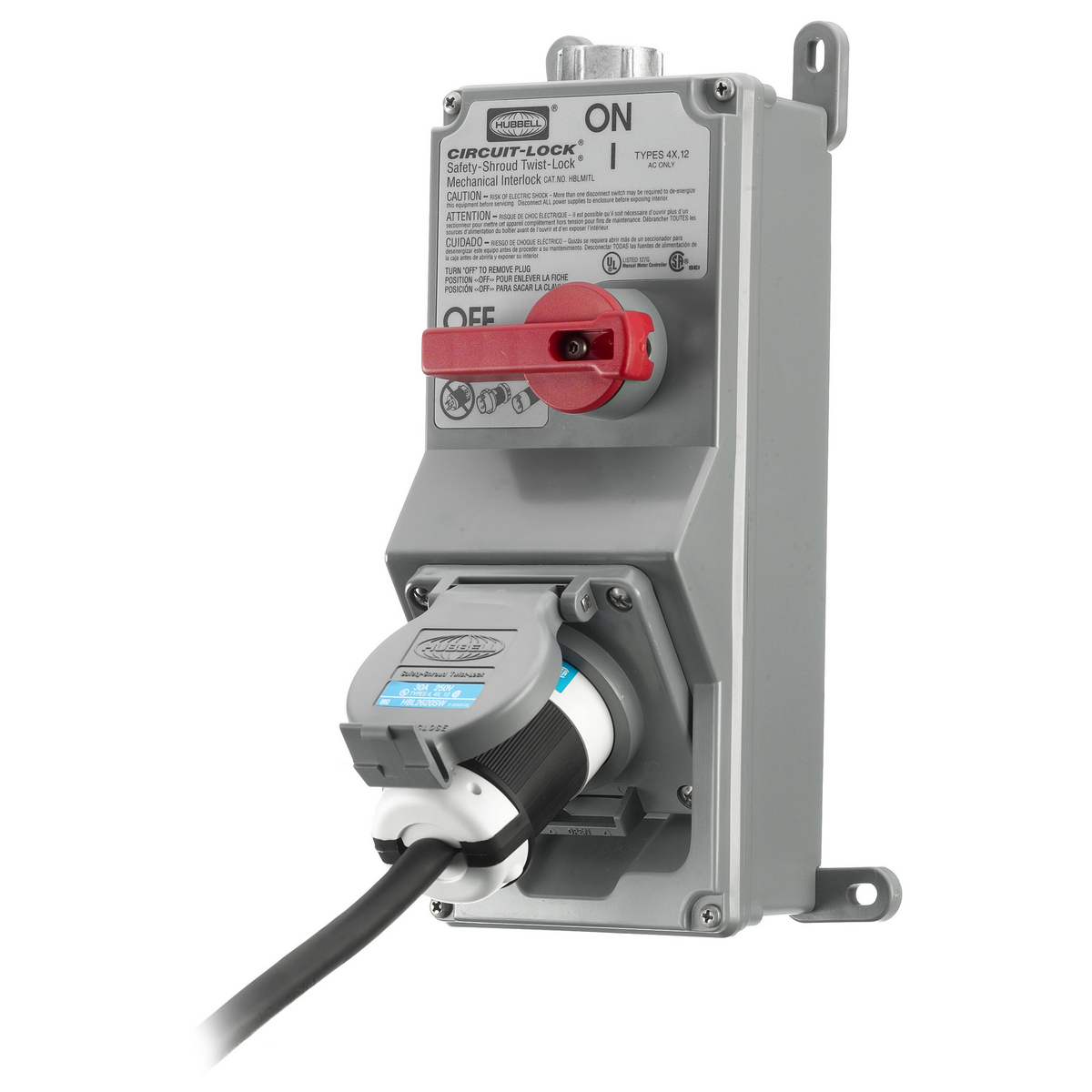

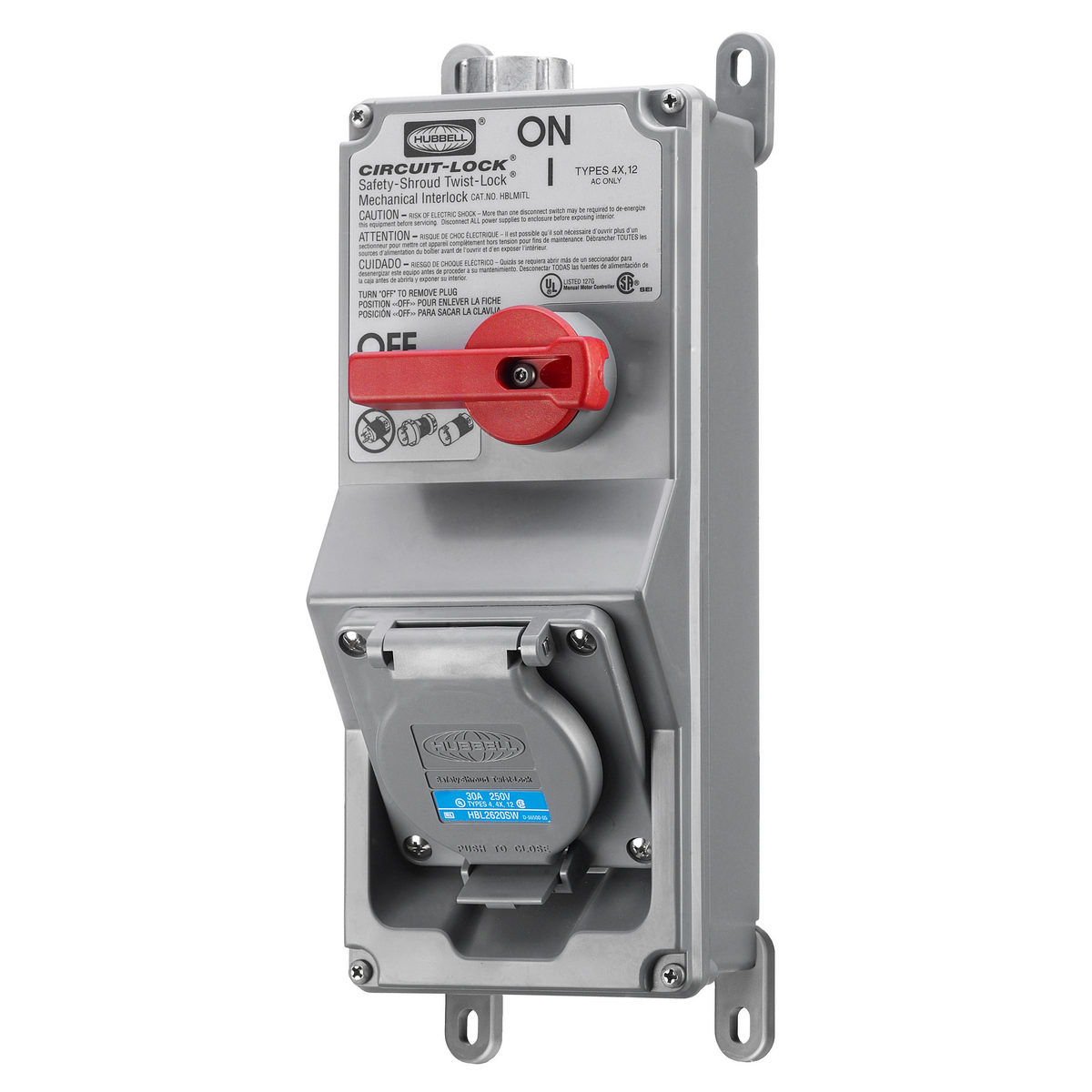

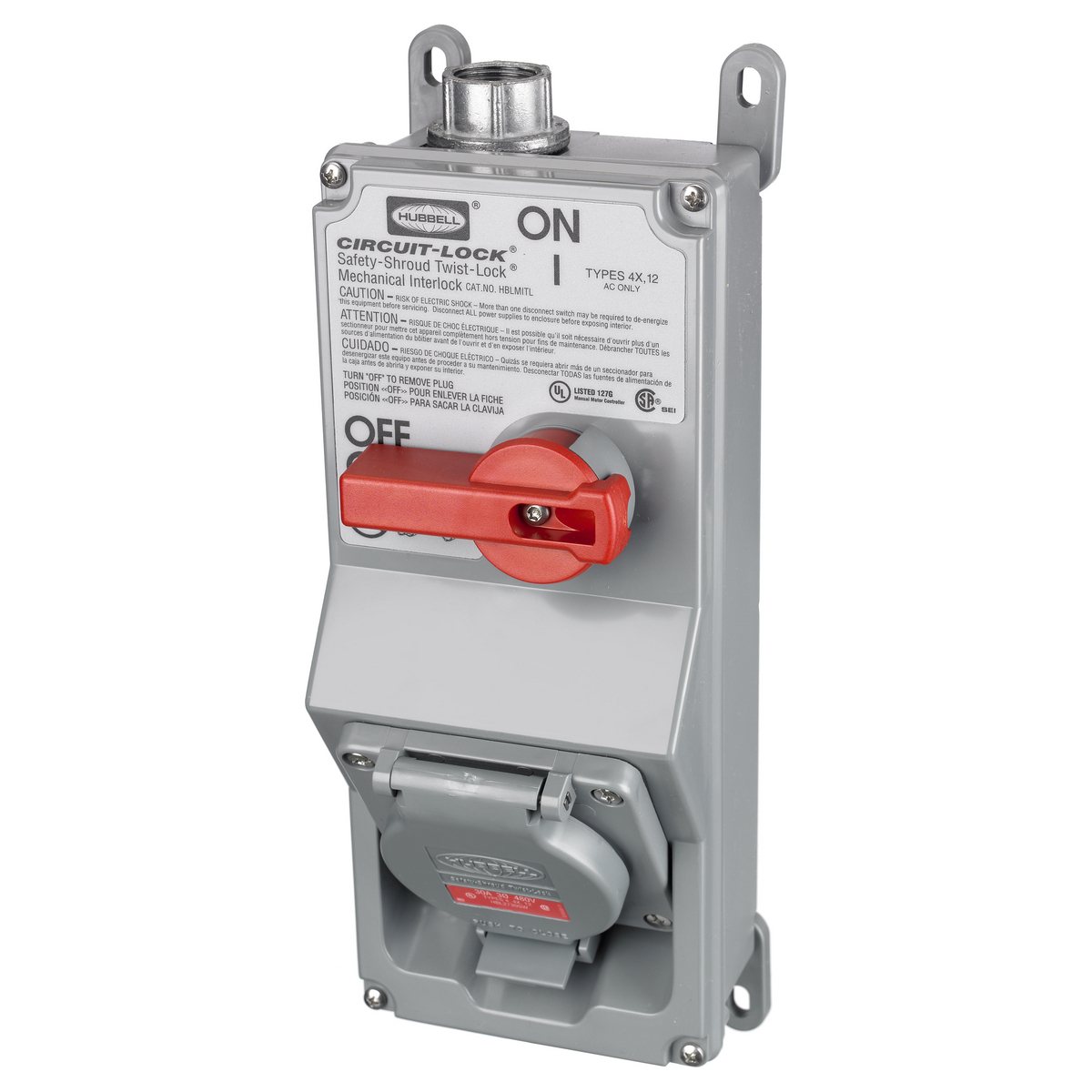

Hubbell offers the only mechanical interlock for Twist-Lock. This new, unfused mechanical interlock for Watertight Safety-Shroud Twist-Lock integrates a watertight receptacle with a linked disconnect switch to provide a mechanically interlocked receptacle. This virtually eliminates the possibility of making or breaking the circuit while under load or making a casual or lazy connection. The switch cannot be turned ON until the plug is properly inserted and locked, and the plug cannot be removed until the switch is turned OFF. All these protective features are included in a compact Type 4X hose-directed water and corrosion resistant enclosure that allows for top, bottom or back feed options. The non-metallic enclosure is nonconductive, yet has an internal frame to assure ground continuity with metallic conduit. In addition, this interlock works with all Safety-Shroud Twist-Lock Plugs. The new unfused mechanical interlock for Watertight Safety-Shroud Twist-Lock can be locked out as a method of compliance with OSHA lockout/tagout regulations.
Manuals and Documentation
| Catalog Number | HBLMITL |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Poland |
| Made in USA | No |
| Action | Snap |
| Actuator | Lever |
| Amperage Rating | 30 |
| Application | Extra Heavy Duty Industrial |
| Contact Configuration | Two Position |
| Contact Rating | 30A |
| Enclosure | Non-Metallic |
| Frequency Rating | 60Hz |
| Material | Composite |
| Mounting | Mounting Feet |
| NEMA Rating | 4X |
| Number of Poles | 3 |
| Operating Cycles | 6,000 Cycles |
| Special Features | Standard Product |
| Standard | CSA Certified TYPE 4, 4X and TYPE 12K Enclosure Rating;Listed to UL Standard |
| UPC | 783585176802 |
| GTIN | 00783585176802 |
| Item Type | Switched Enclosure |
| Size | 11.44 in x 4.88 in x 4.19 in |
| Environmental Conditions | NEMA 4X |
| Operating Temperature | Max Continuous- 67 Degrees C, Minimum- -40 Without Impact |
| Voltage Rating | 600 Max |
| Wattage | 18000 W |
