Discontinued
Hubbell Wiring Device - Kellems

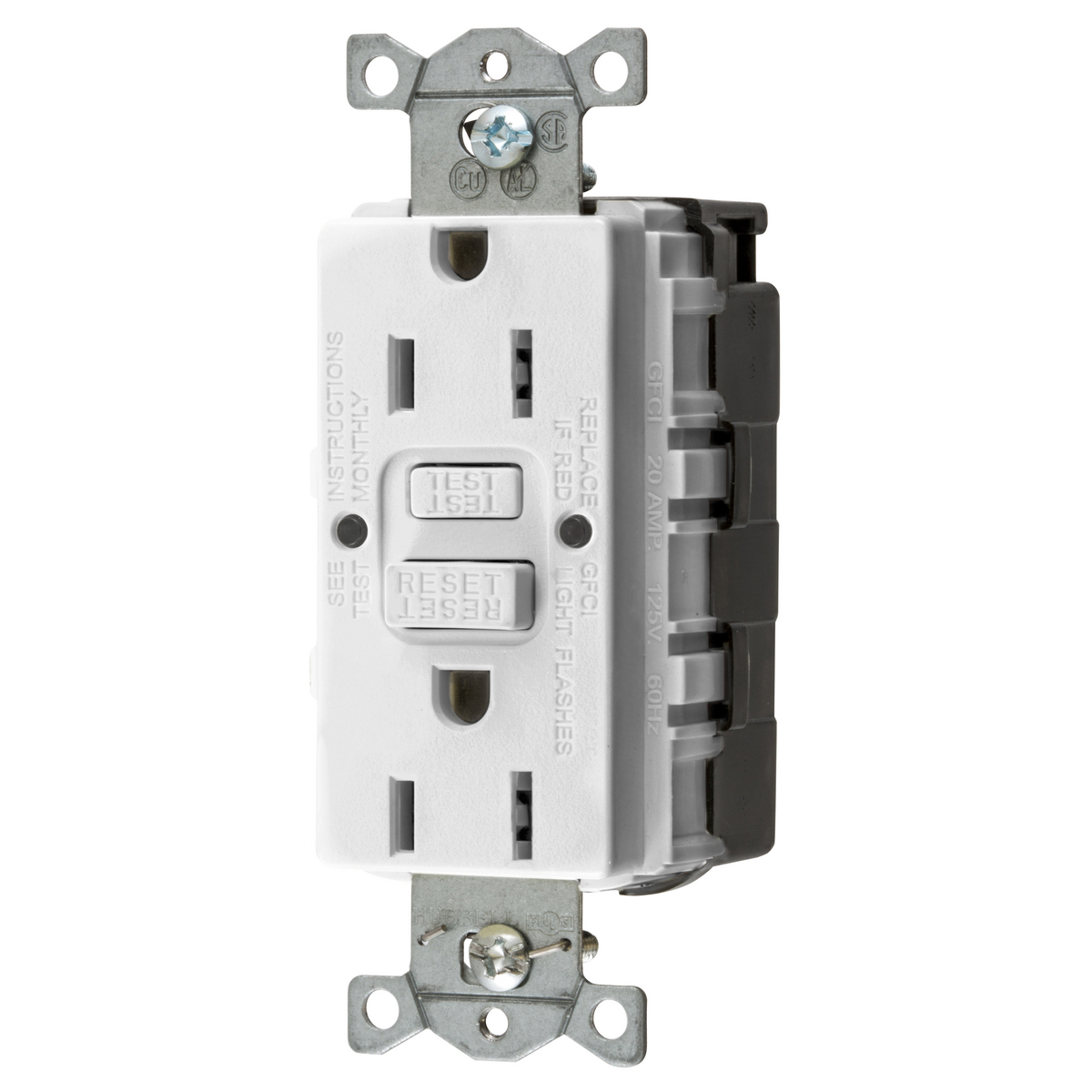

GFRST15SNAPW 1-Phase Heavy Duty Self-Test Screw Mount GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
GFRST15SNAPW
UPC:
883778600050
Item #:
732819

Availability

Location Available Qty
Available Available to Order

AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Manuals and Documentation
Catalog Number GFRST15SNAPW
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application Commercial Grade
Color White
Connection Terminal Screws
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire Grounding
Phase 1
Special Features SNAP Connect, Self Grounding, AUTOGUARD Self test Technology
Standard Meets All NEC® Requirements
UPC 883778600050
GTIN 00883778600050
Item Type Standard
Size 3.28 in x 1.77 in x 1.47 in
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Voltage Rating 125
Wattage 1,875 W
Wire Size #12 AWG
