$347.59
each

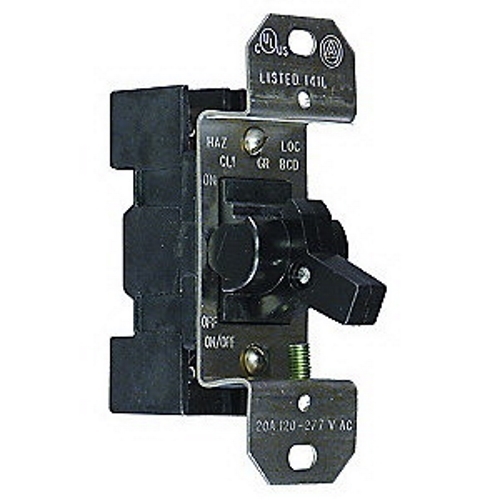

3-Way Toggle Switch Assembly, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Action: Toggle, Enclosure: NEMA 7CD, 9EFG, Material: Malleable Iron, Height: 4.63 IN, Width: 3 IN, Depth: 1.6 IN, Standard: UL 894, UL 1203, E10523, E817
Manuals and Documentation
| Catalog Number | LAB23W |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Toggle |
| Amperage Rating | 20 |
| Application | For EDS Or Contender Series Tumbler Switches |
| Enclosure | NEMA 7CD, 9EFG |
| Special Features | Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Factory sealed switches are designed to a UL Standard so that any arcing devices are contained within an explosionproof labyrinth switch (standard switch and sealing chamber on select models); Tumbler switch devices are approved for installation without additional external sealing fittings; Sealing chamber has prewired factory sealed pigtail leads to switch; Corrosion resistant, strong stainless steel hex head cap screws attach cover/body/sealing chamber assembly for approved flame-tight construction; Threaded stainless steel operating handle provides positive Corrosion resistant operation; For installation in: Chemical plants, petrochemical plants, Refineries and process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of light |
| Standard | UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| UPC | 781381925815 |
| GTIN | 00781381925815 |
| Item Type | 3-Way Toggle Switch Assembly |
| Voltage Rating | 120 - 277 |
