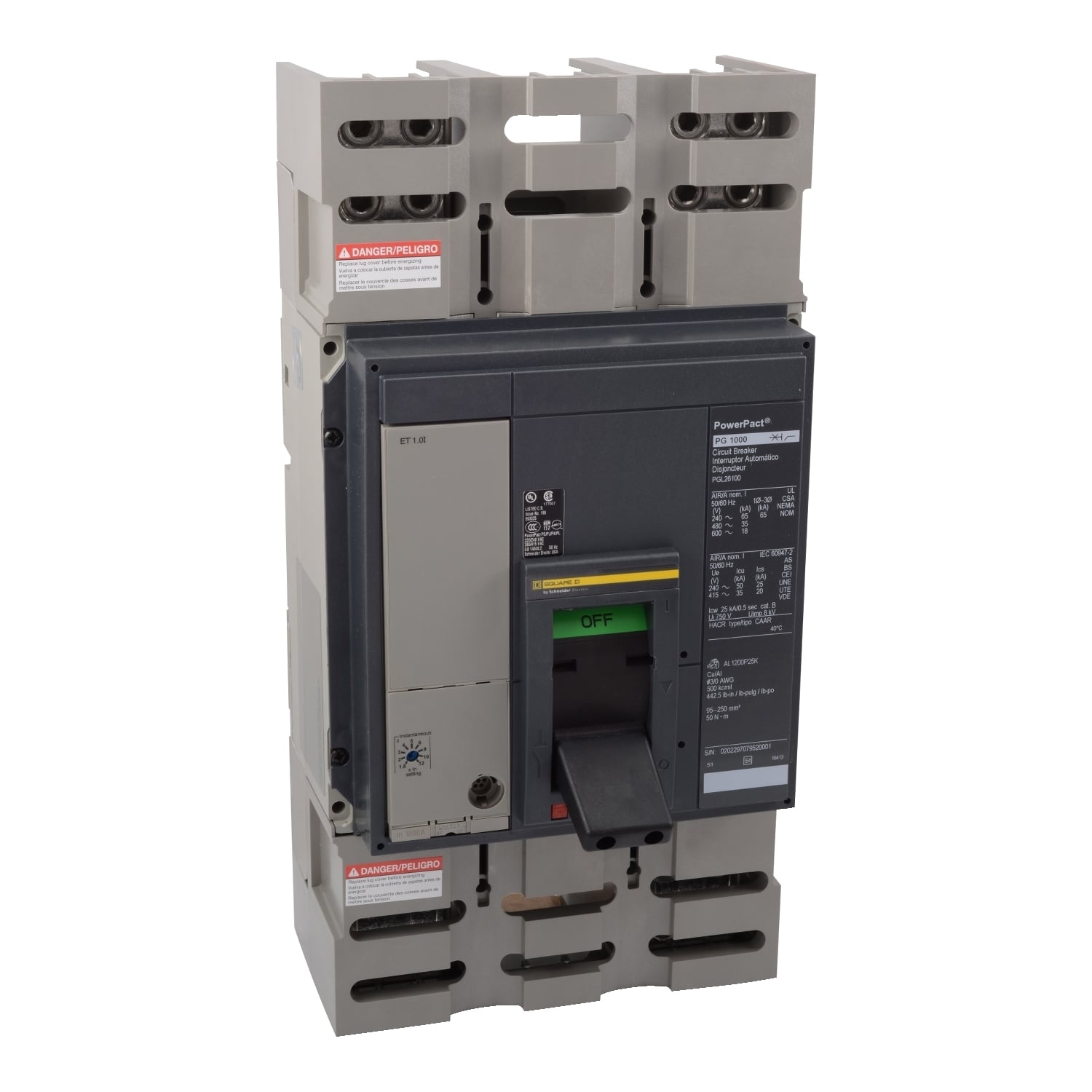

PJF36080CU31A PowerPact Molded Case Circuit Breaker, 600 V AC, 800 A, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- PJF36080CU31A
- UPC:
- 785901762508
- Item #:
- 730550
PJF36080CU31A PowerPact Molded Case Circuit Breaker, 600 V AC, 800 A, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR #:
- PJF36080CU31A
- UPC:
- 785901762508
- Item #:
- 730550
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacTP-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has a busbar connection. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | PJF36080CU31A |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Actuator | Toggle |
| Application | Distribution;HACR rated |
| Connection | Busbar connection, line;busbar connection, load; 3 x AWG 3/0...500 kcmil aluminium/copper |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Special Features | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61680872&lang=en-us |
| UPC | 785901762508 |
| GTIN | 00785901762508 |
| Item Type | Circuit breaker |
| Width | 8.27 |
| Width UOM | Inch |
| Height | 12.86 |
| Height UOM | Inch |
| Depth | 8.05 IN |
| Trip Type | Electronic, standard, MicroLogic 3.0, LI |
