9421LB7 Type L Heavy Duty Operating Mechanism, NEMA 1/3R/12 NEMA Rating, Variable Depth Handle Handle/Operation, Door Handle Mounting, For Use With PowerPact 3-Pole 125 A B Frame Molded Case Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9421LB7
- UPC:
- 785901093480
- Item #:
- 728572
9421LB7 Type L Heavy Duty Operating Mechanism, NEMA 1/3R/12 NEMA Rating, Variable Depth Handle Handle/Operation, Door Handle Mounting, For Use With PowerPact 3-Pole 125 A B Frame Molded Case Circuit Breaker
- MFR #:
- 9421LB7
- UPC:
- 785901093480
- Item #:
- 728572
Availability
| Location | Available Qty |
|---|---|
| Available | 9 ea |
$138.62
each

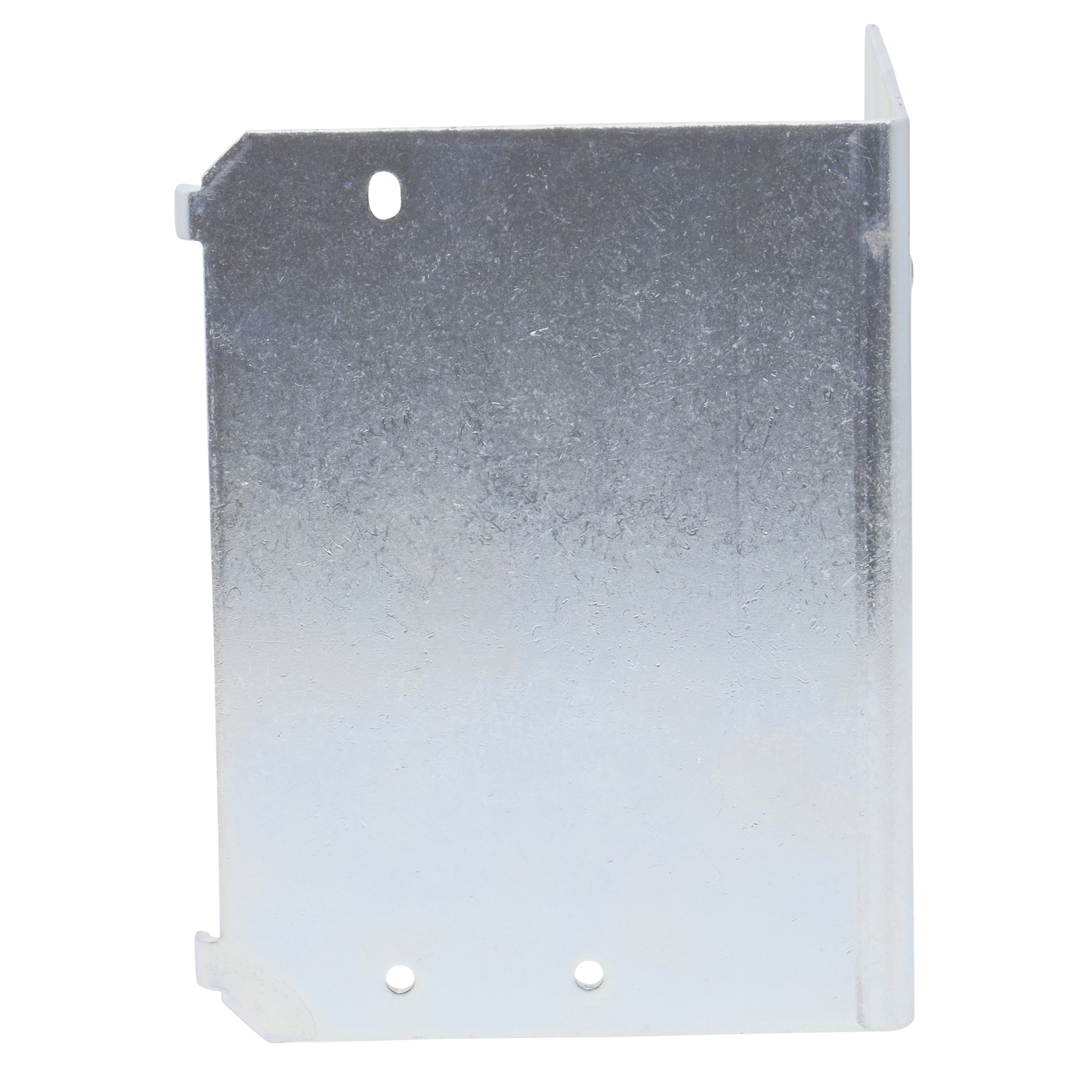

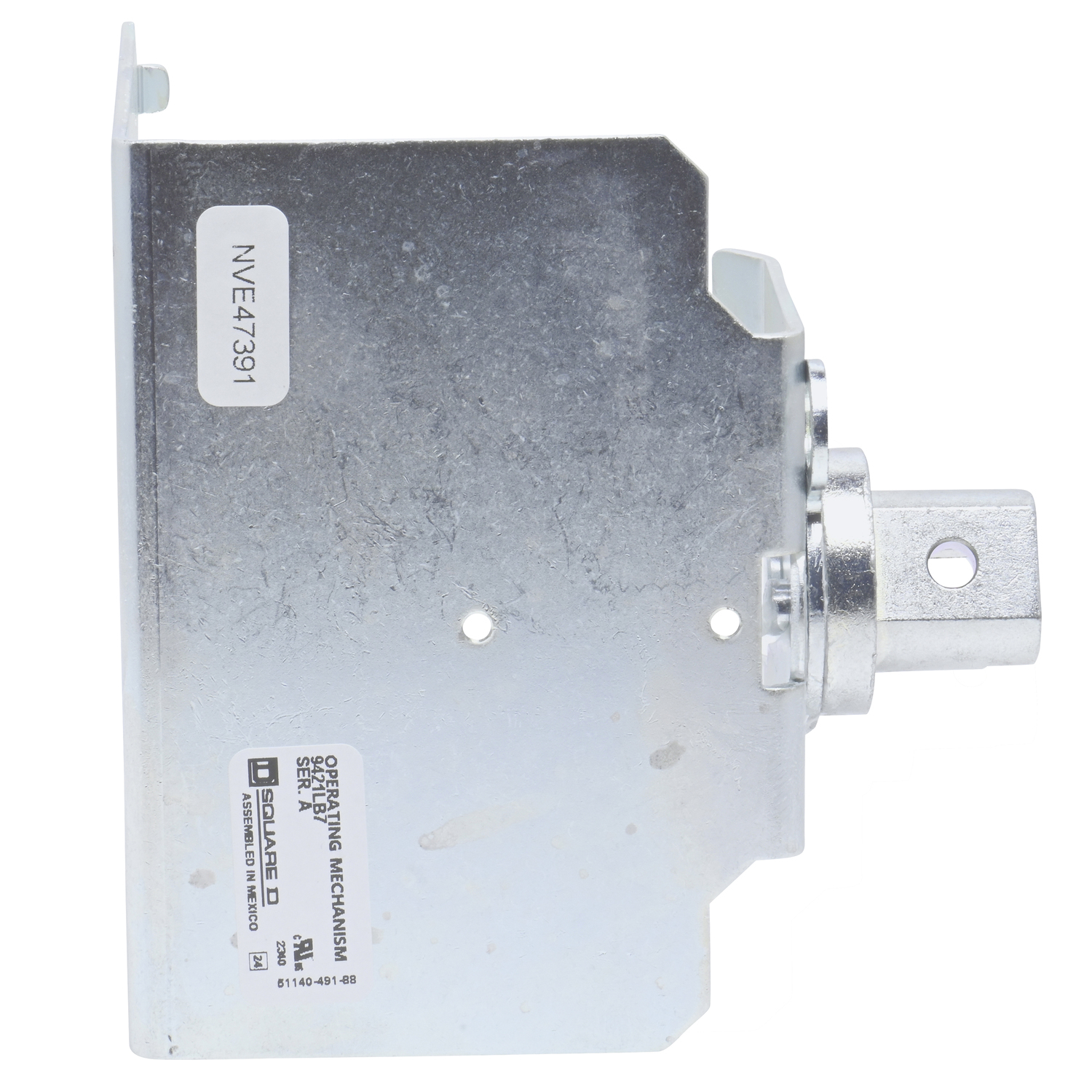

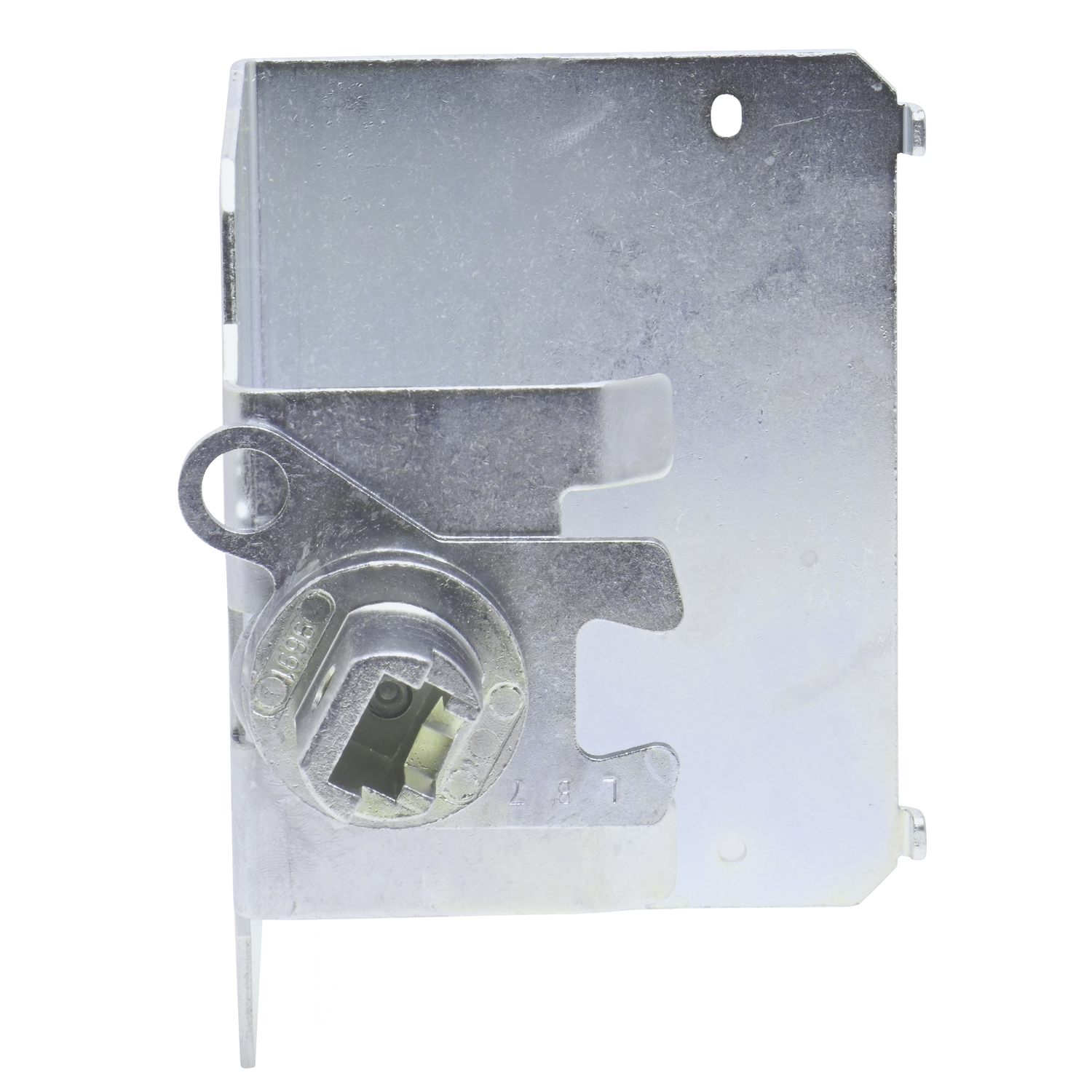

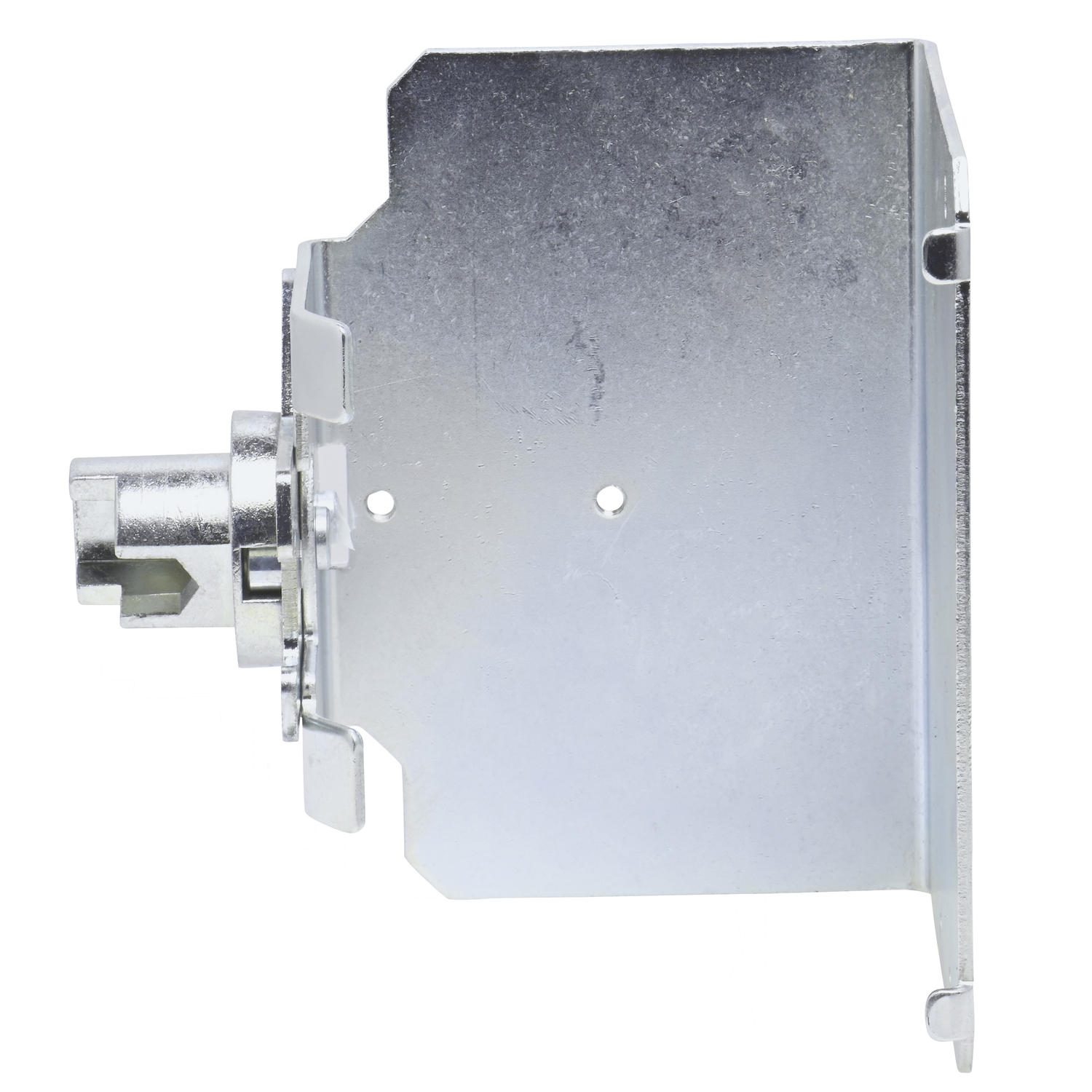

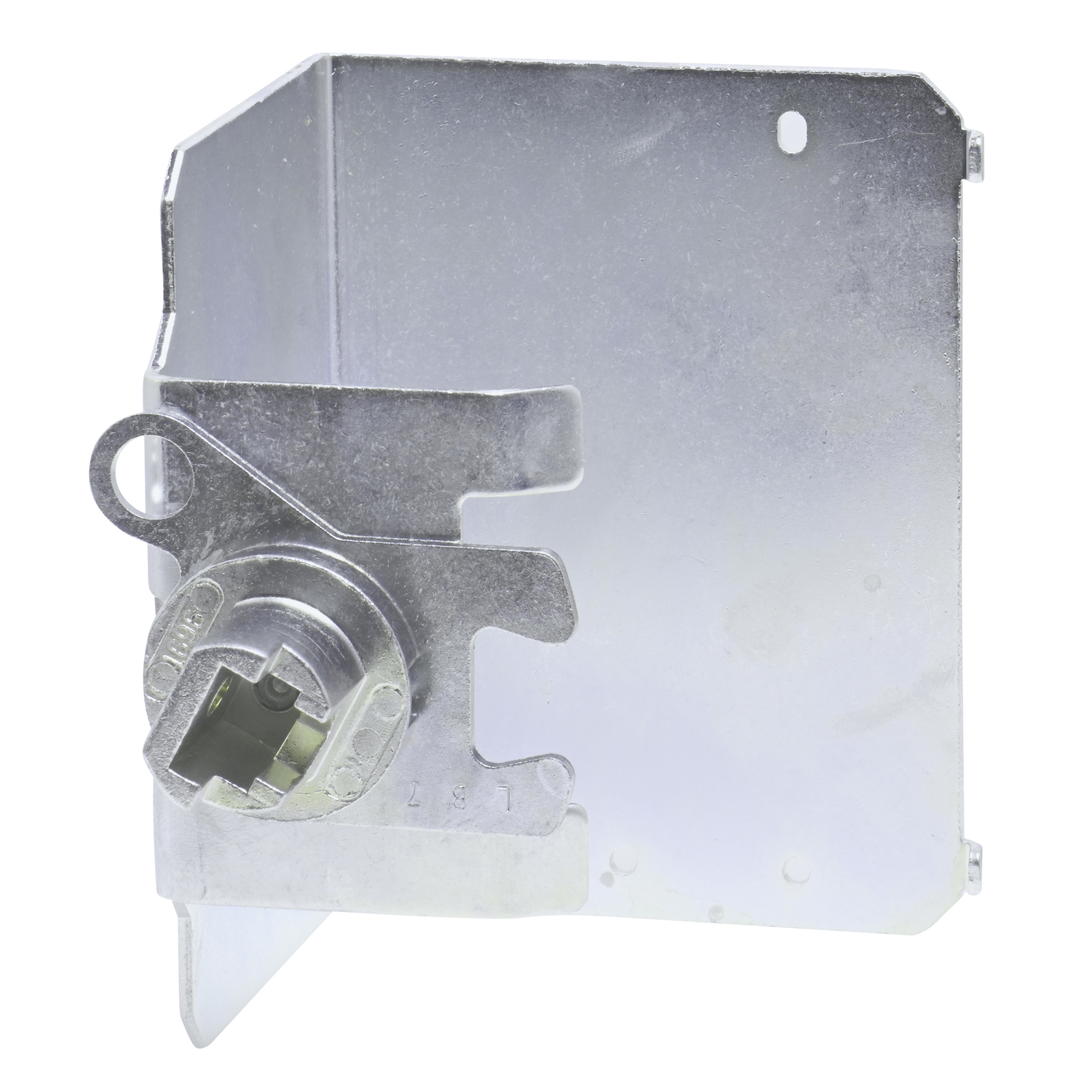

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker, operating handle and operating shaft must be ordered separately. Mechanism is UL Component Recognized and CSA certified.
Manuals and Documentation
| Catalog Number | 9421LB7 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901093480 |
| GTIN | 00785901093480 |
| Hazardous Classification | N |
