SQUARE D

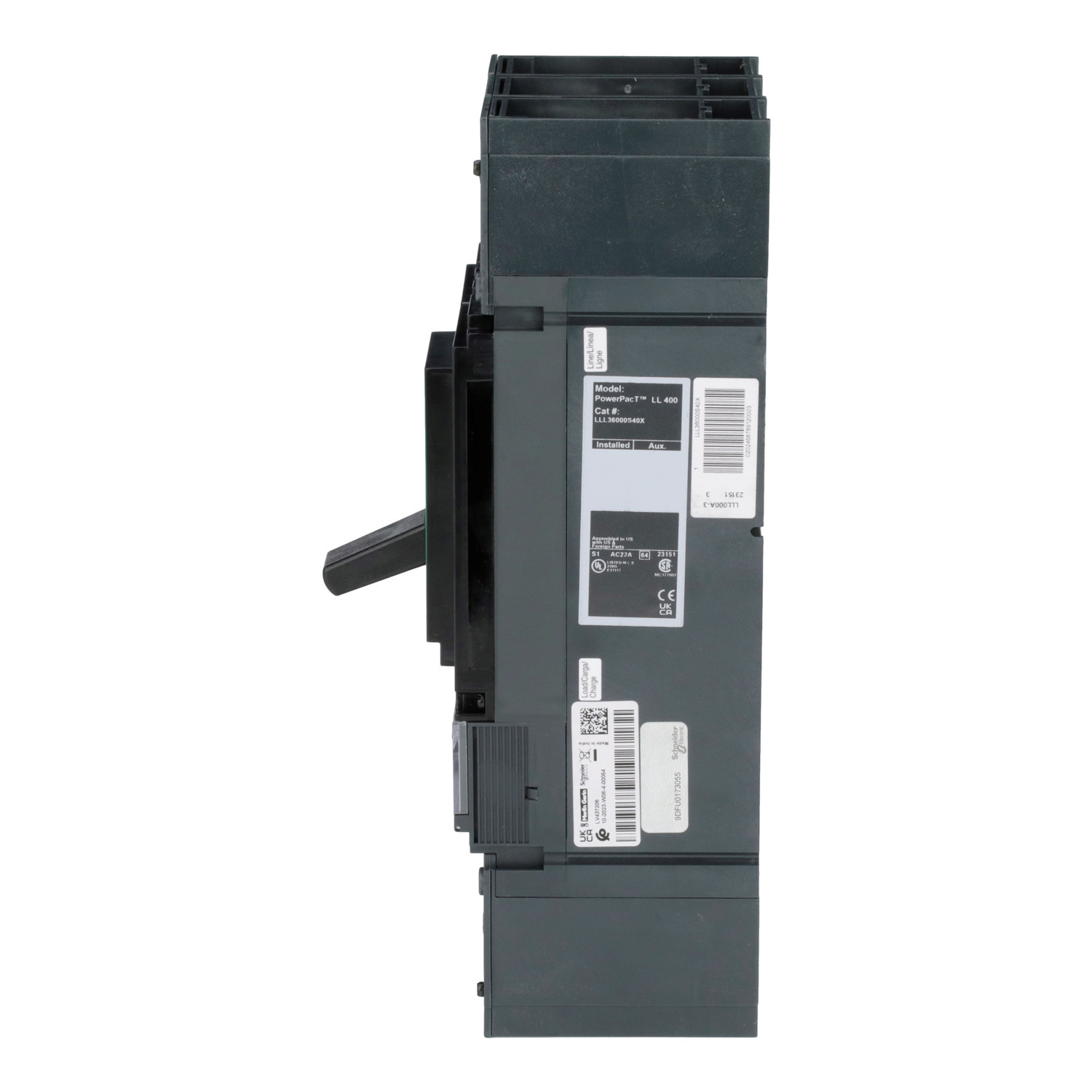

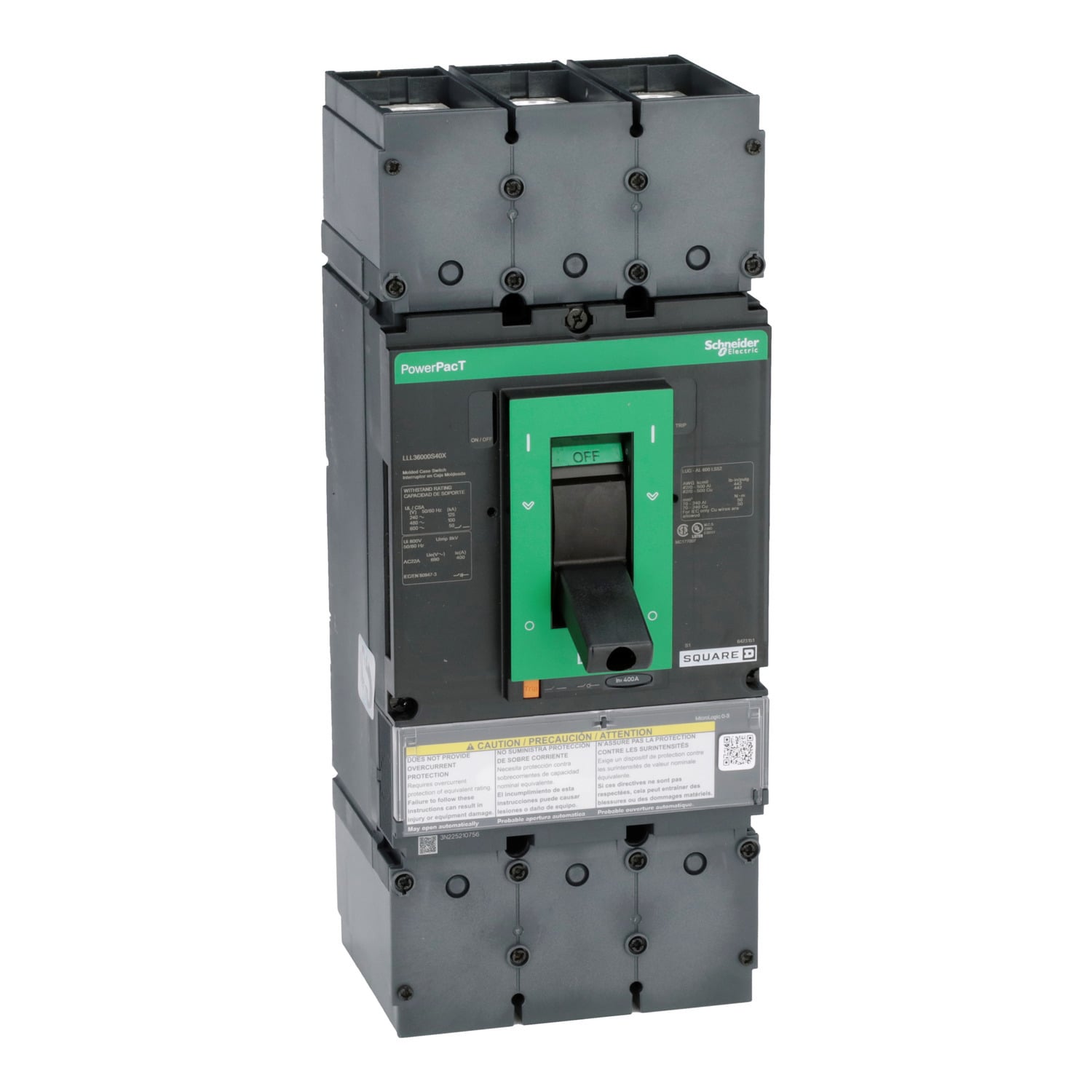

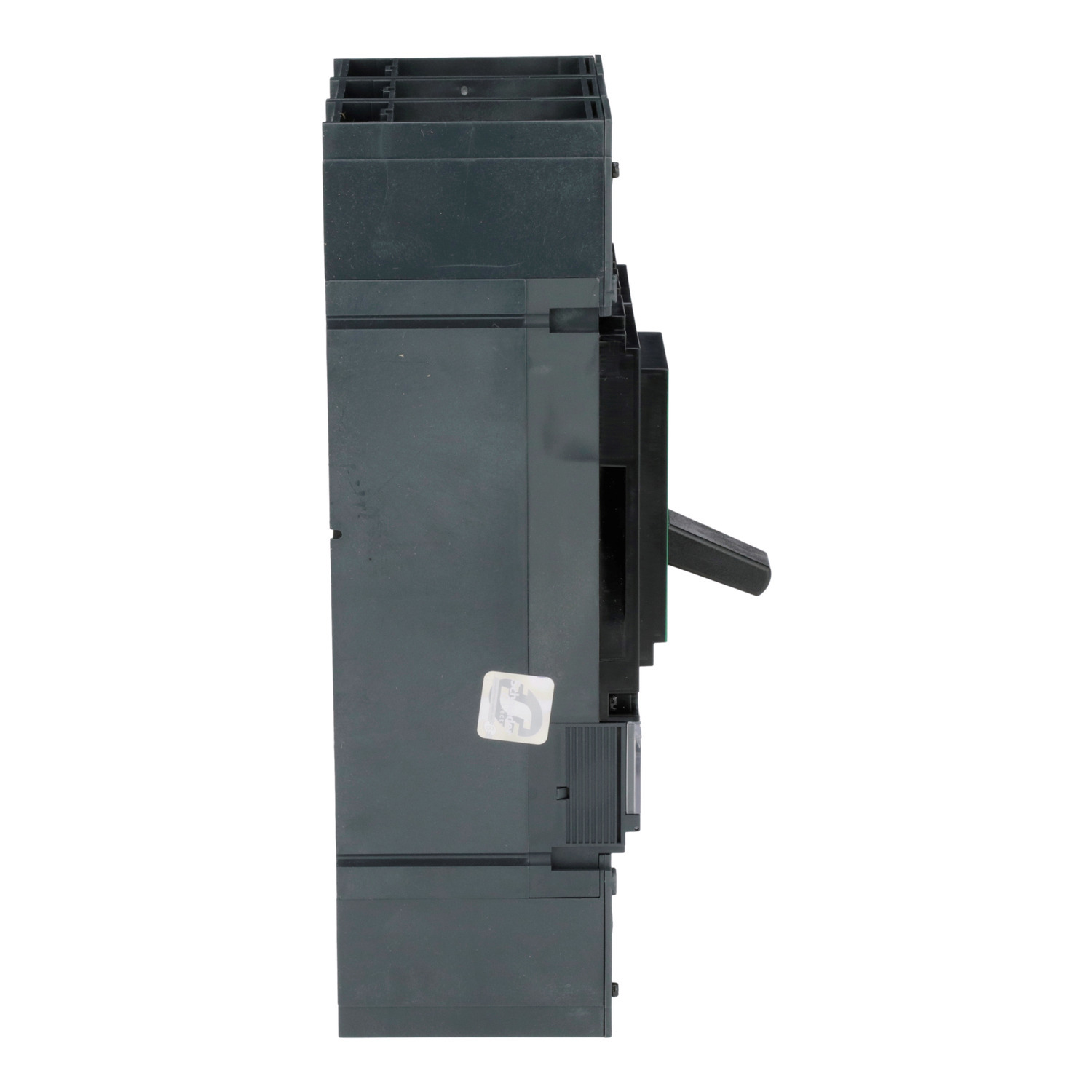

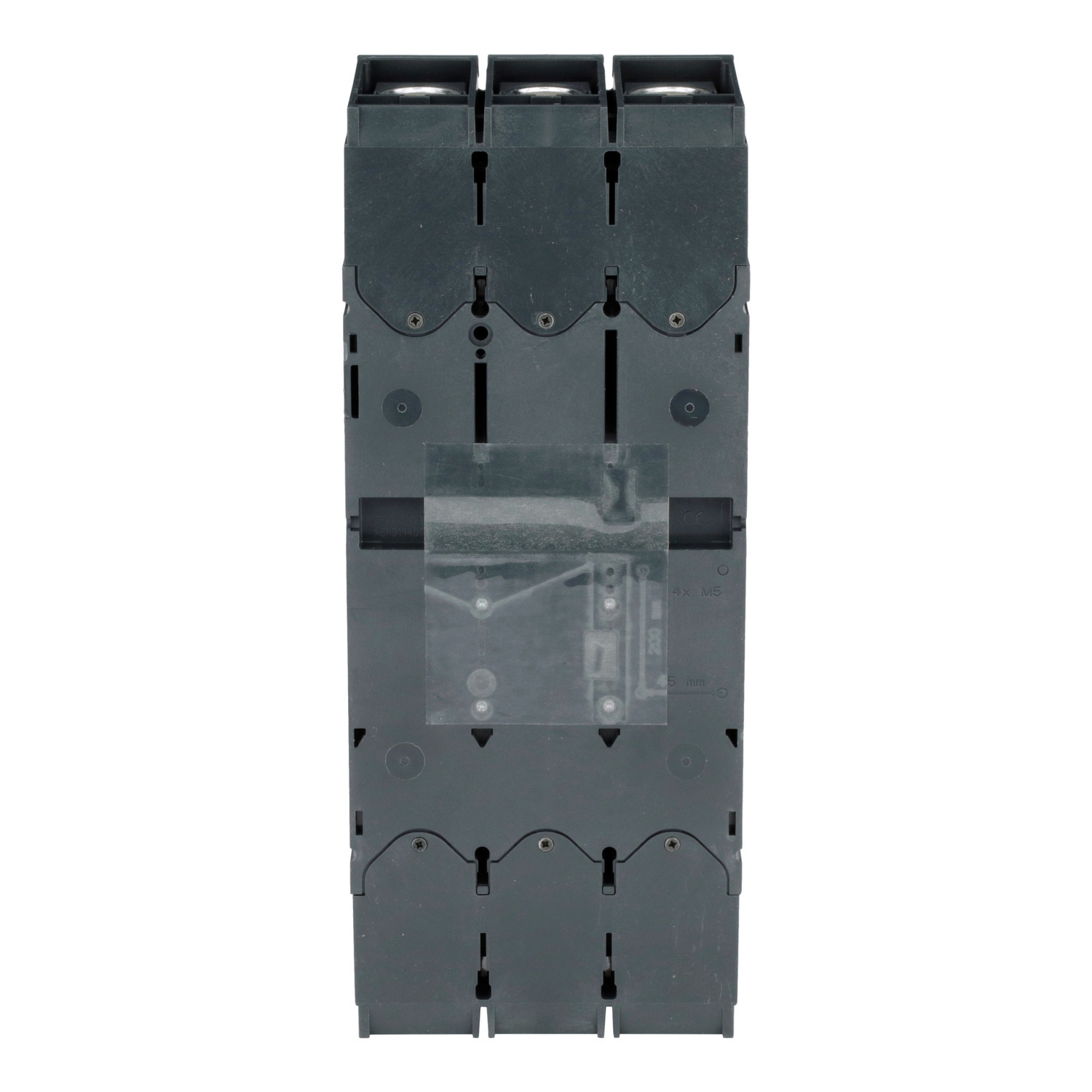

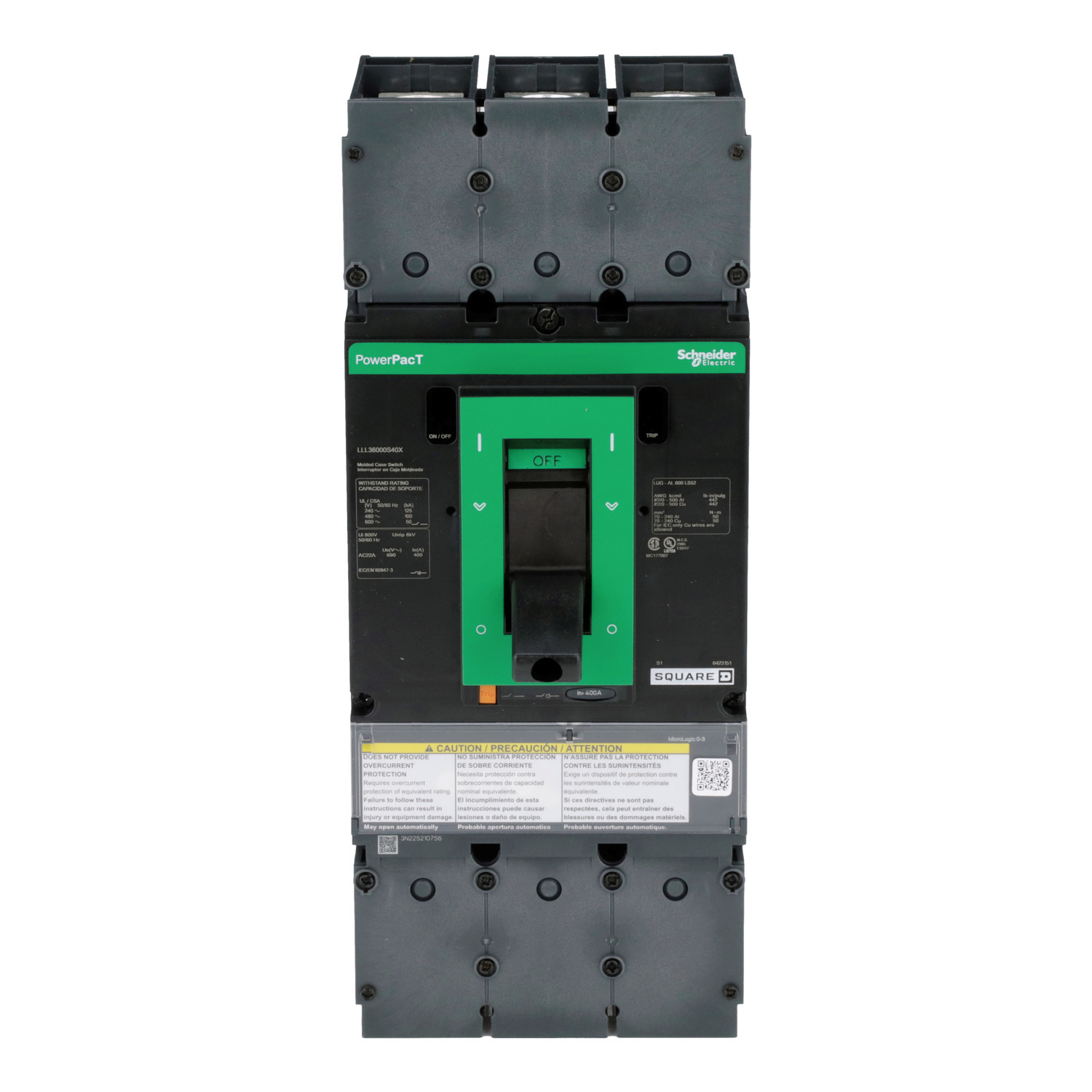

LLL36000S40X PowerPact Automatic L Molded Case Switch, 600 V AC, 400 A, 125 kA at 240 V AC/100 kA at 480 V AC/50 kA at 600 V AC/20 kA at 250 VDC/50 kA at 500 VDC Interrupt, 3 Poles, Magnetic Trip

MFR:
Schneider Electric
MFR #:
LLL36000S40X
UPC:
785901731689
Item #:
727701

Availability

Location Available Qty
Available 1 ea
$5,469.20 each

PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.

Manuals and Documentation
Catalog Number LLL36000S40X
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Lugs, line;lugs, load; x AWG 2/0...500 kcmil ( aluminium/copper )
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980752&lang=en-us
UPC 785901731689
GTIN 00785901731689
Item Type Automatic switch
Width 5.51
Width UOM Inch
Height 13.38
Height UOM Inch
Depth 6.61 IN
Trip Type Magnetic
