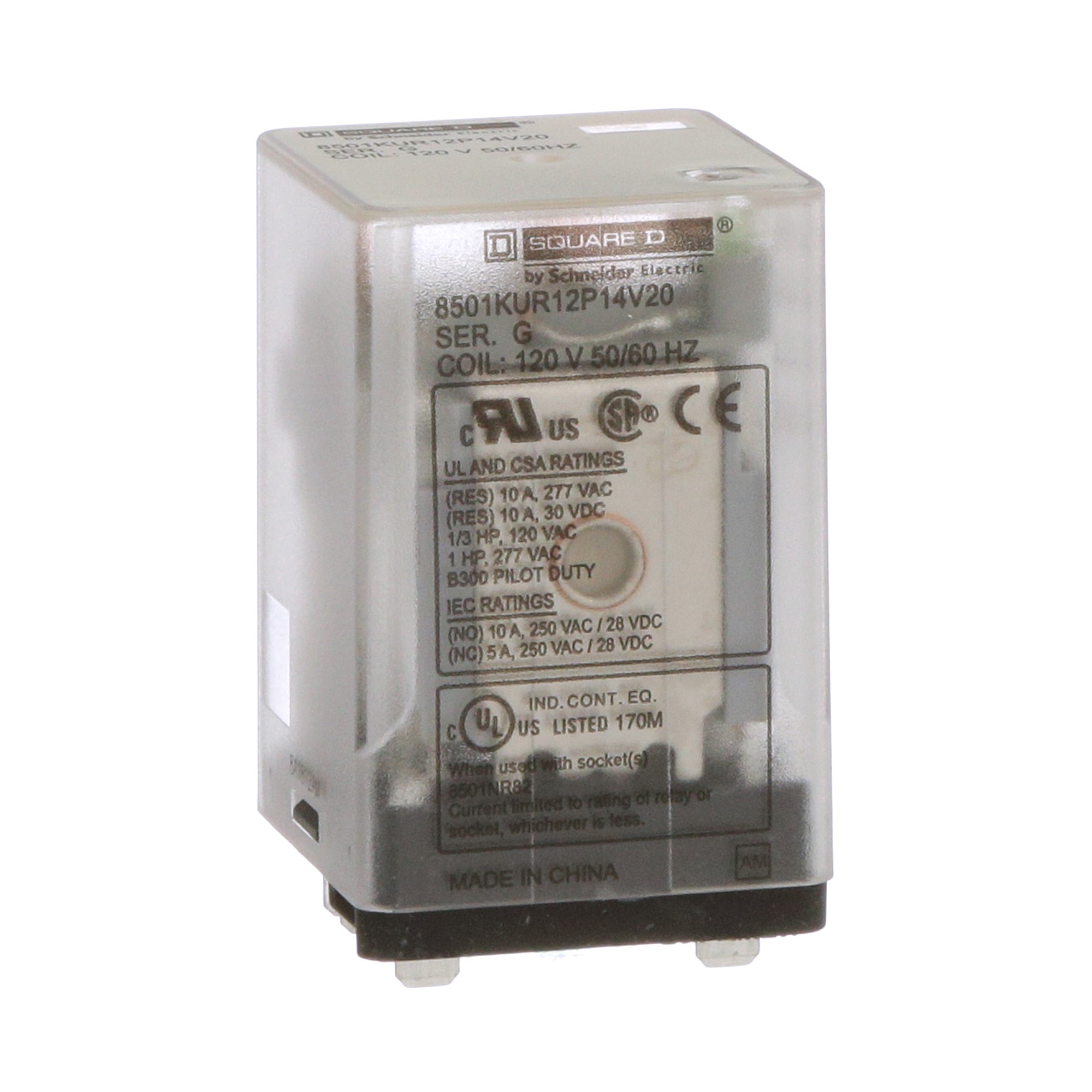

8501KUR12P14V20 Type K General Purpose Relay With LED and Standard Cover, 10 A, 8 Pin, 2CO 2 Form C DPDT Contact, 300 V AC/30 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- 8501KUR12P14V20
- UPC:
- 785901278566
- Item #:
- 725983
8501KUR12P14V20 Type K General Purpose Relay With LED and Standard Cover, 10 A, 8 Pin, 2CO 2 Form C DPDT Contact, 300 V AC/30 V DC V Coil
- MFR #:
- 8501KUR12P14V20
- UPC:
- 785901278566
- Item #:
- 725983
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Manuals and Documentation
| Catalog Number | 8501KUR12P14V20 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | 8501NR82 |
| Mounting | Socket |
| Special Features | Indicator light relay energised LED |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421969116&lang=en-us |
| UPC | 785901278566 |
| GTIN | 00785901278566 |
| Item Type | Relay;General purpose;DPDT |
| Cross Reference Products | IDEC RR2BA-ULAC120V|Schneider 8501KU12P14V20|SquareD 8501KU12P14V20|Struthers A283XBXCL120A |
