Rittal Corp

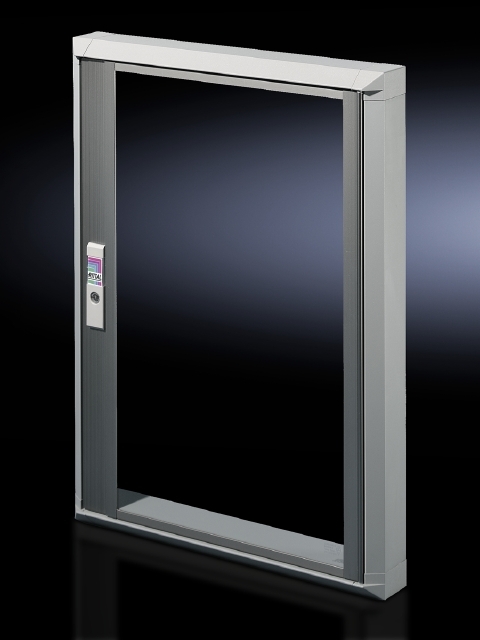

2735520 30-Section System Window, 398 mm H x 363 mm W, For Use With FT, VX, TS8, SE8 Series 600 mm W Enclosure, Extruded Aluminum, Light Gray, Natural Anodized/Powder Coated

MFR:
Rittal
MFR #:
2735520
UPC:
639889810464
Item #:
7243

Availability

Location Available Qty
Available Available to Order
$934.80 each

System windows, for TS, SE, 30 section, material: Extruded aluminium section with die-cast zinc corner pieces and single-pane safety glass., surface: Base frame: Powder-coated on the outside in RAL 7035, Hinge and lock section: Natural-anodised, description: To conceal display and operating instruments or cut-outs, and to protect against dirt and liquids as well as unauthorised access.

Features

  • Size: 500 mm Width x 47 mm Depth x 470 mm Height
  • To conceal display and operating instruments or cut-outs and to protect against dirt and liquids as well as unauthorised access
  • Base frame: Easily screw-fastened to the door thanks to modified dimensions (tubular door frame may be used as a drilling template)
  • Conceals the cut edge
  • Frame section height 30 mm or 60 mm
  • 30 mm build depth for components (maximum)
Catalog Number 2735520
Manufacturer Rittal
Brand Rittal Corp
Country of Origin Germany
Made in USA No
Color RAL 7035, Natural
Consist of Base Frame, Viewing Window
Material Extruded Aluminum With Die-Cast Zinc, Glass
Special Features Features: Readily Height-Adjustable, Prevents Dirt from Landing on the Seal, Protects the Glass From Being Lifted Out, Prevents the Ingress of Dirt and Moisture When Opening the Window
RoHS Indicator Yes
UPC 639889810464
GTIN 00639889810464
Item Type System Window
Length 20.2760
Length UOM Inch
Width 19.0940
Width UOM Inch
Height 2.3620
Height UOM Inch
Weight 9.921
Weight UOM Pounds
Size 19 (H) x 20 (W) x 1.9 (D)
