Mersen

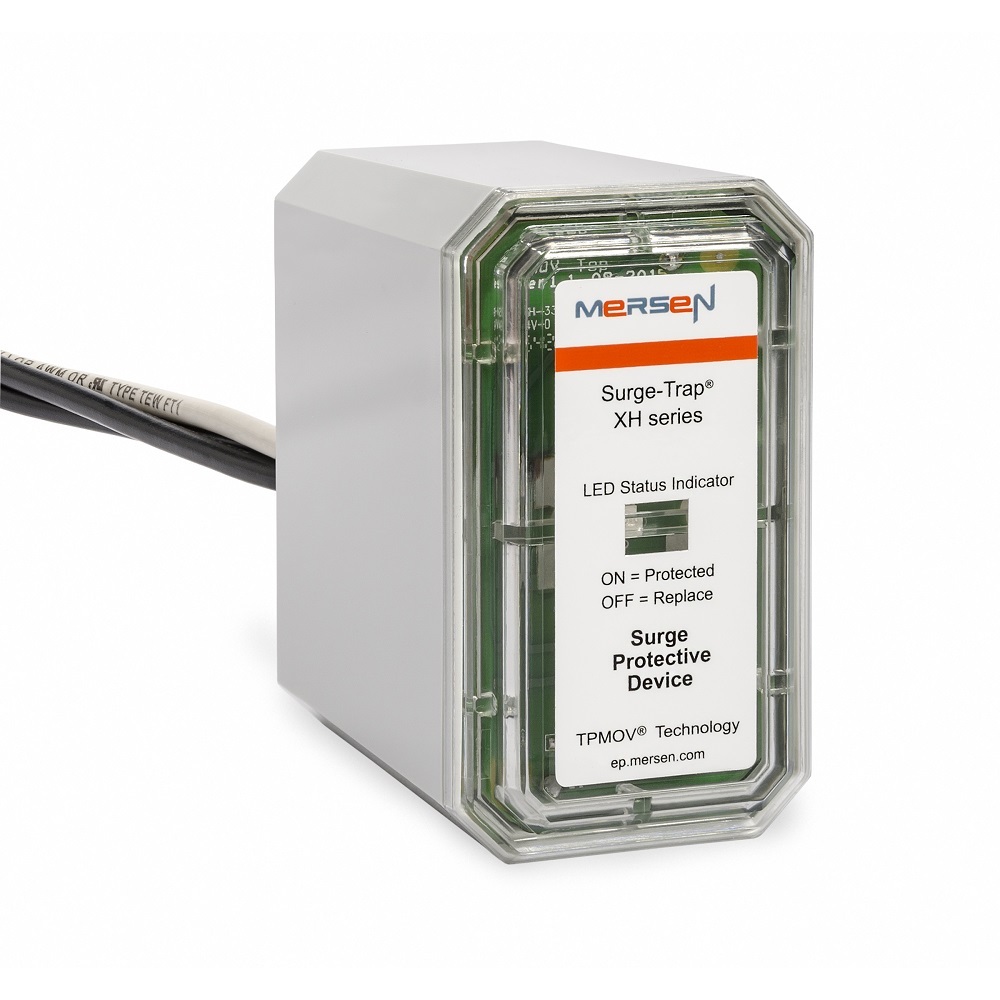

STXH240S05 Surge-Trap STXH Split Phase Surge Protective Device, 120/240 V AC, 50/60 Hz, 2 Poles, 200 kA SCCR

MFR:
Mersen
MFR #:
STXH240S05
UPC:
782001472504
Item #:
723013

Availability

Location Available Qty
Available Available to Order
$322.60 each

The most compact of the STX series offering, the Surge-Trap Type 1 STXH meets requirements for UL1449 Fourth Edition and is suitable for any 120/240VAC split phase application. The STXH Series SPD features TPMOV technology inside making it the safest product available in its category. Its compact size, performance and reliability is especially for HVAC applications and direct mounting to air condition disconnect switches., 240/120V, L-N, L-G, Split Phase, LED 50 kA per phase

Manuals and Documentation
Catalog Number STXH240S05
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Application Suitable for any 120/240V application
Connection Pre-wired with 18 in 10 AWG conductors
Insulation Polycarbonate
Mounting Panel Mount
Short Circuit Rating 200 KA
Special Features Designed with the industry leading Mersen TPMOV® Technology Compact footprint designed to mate with AC Disconnect Switches LED status indicator (ON = Good, OFF = Replace) NEMA 4X enclosure for outdoor or indoor use Fits 1/2" knockouts with 18" leads for easy installation For use in ANSI/UL Type 1 or 2 SPD installations 3 Modes of potection (L-N, L-L) 3-year warranty
Standard ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection
UPC 782001472504
GTIN 00782001472504
Type of Indicators LED
Voltage Rating 240/120
