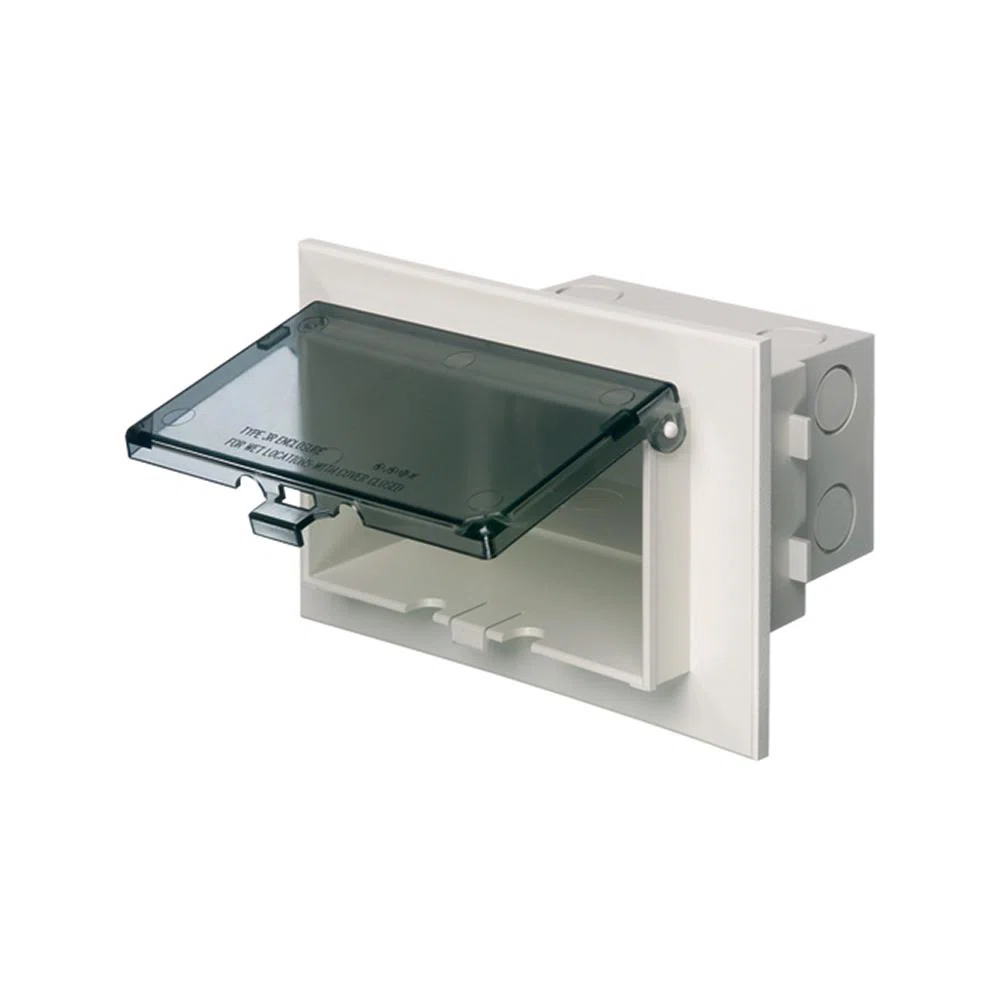

DBHB1C InBox DB Series 1-Piece Low Profile Recessed Electrical Box, Plastic, 22 cu-in Capacity, 1 Gang, 1 Outlet, 4.934 in L x 7.186 in W x 5.159 in D
- MFR:
- Arlington
- MFR #:
- DBHB1C
- UPC:
- 018997776280
- Item #:
- 7223
DBHB1C InBox DB Series 1-Piece Low Profile Recessed Electrical Box, Plastic, 22 cu-in Capacity, 1 Gang, 1 Outlet, 4.934 in L x 7.186 in W x 5.159 in D
- MFR #:
- DBHB1C
- UPC:
- 018997776280
- Item #:
- 7223
Availability
| Location | Available Qty |
|---|---|
| Available | 21 ea |
$44.1769
each
Recessed electrical box with weatherproof in use extra duty cover for existing siding construction. Non-metallic cover and base. accepts most 1-gang wiring devices and uses standard indoor wall plates or a GFCI cover plate. Box and white cover are textured/paintable UV rated plastic for long outdoor life.
Manuals and Documentation
Features
- InBox™ 1-piece assembly replaces the installation of an electrical box, siding block and bubble cover assembly
- Built-in anchor tabs seat InBox™ sleeve into mortar for super secure installation
- Installs in the wall, so less of It shows outside
- Installed, disposable, mud cover extends all the way over the flange, providing maximum protection during construction
- Cover is removable for easier device installation
- No gaskets required
- UV rated plastic for long outdoor life
| Manufacturer Part Number | DBHB1C |
| Brand | Arlington |
| Manufacturer | Arlington |
| UPC | 018997776280 |
| Country Of Origin | US |
| Capacity | 22 cu-in |
| Color | Clear/White |
| Dimensions | 4.934 in L x 7.186 in W x 5.159 in D |
| Enclosure Type | NEMA 3R |
| Finish | Painted/Textured |
| Material | Plastic |
| Mounting Type | Ceiling |
| Series | DB Series |
| Type | 1-Piece Low Profile Recessed |
| Number Of Outlets | 1 |
| Alternative Part Number | 9122810 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 1 year |
| Standards Approvals | UL and CSA |
| Application | For new brick construction |
| Includes | Weatherproof Horizontal While-In-Use Clear Cover |
| Mounting Orientation | Horizontal |
| Number Of Gangs | 1 |
