Telemecanique

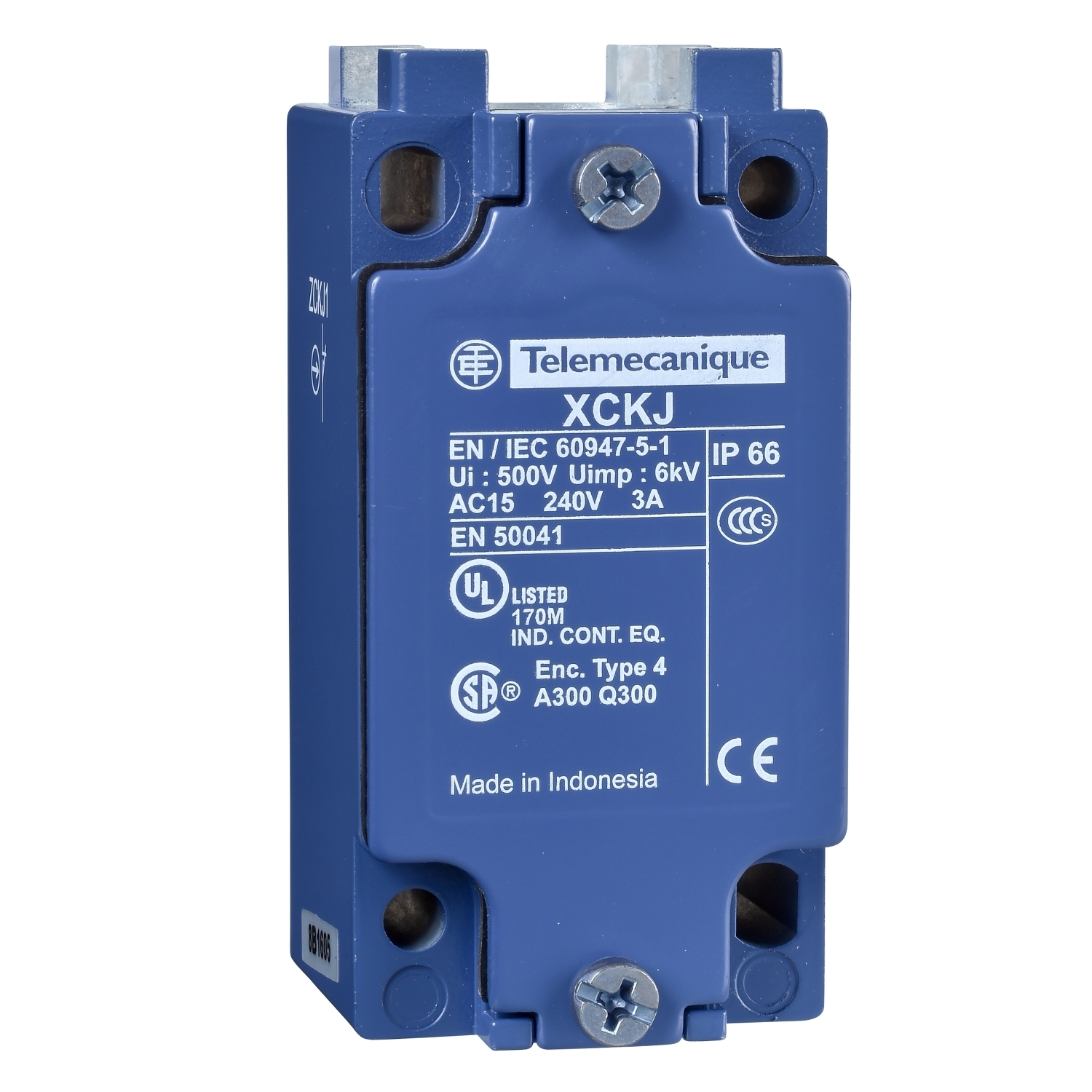

ZCKJ2 OsiSense 2-Pole Fixed Switch Body, 2CO Contact, For Use With XCKJ and ZCKJ Series Standard Format Limit Switch, 10 A Contact, IP66/IK07 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKJ2
UPC:
785901325451
Item #:
72223

Availability

Location Available Qty
Available Available to Order
$147.50 each

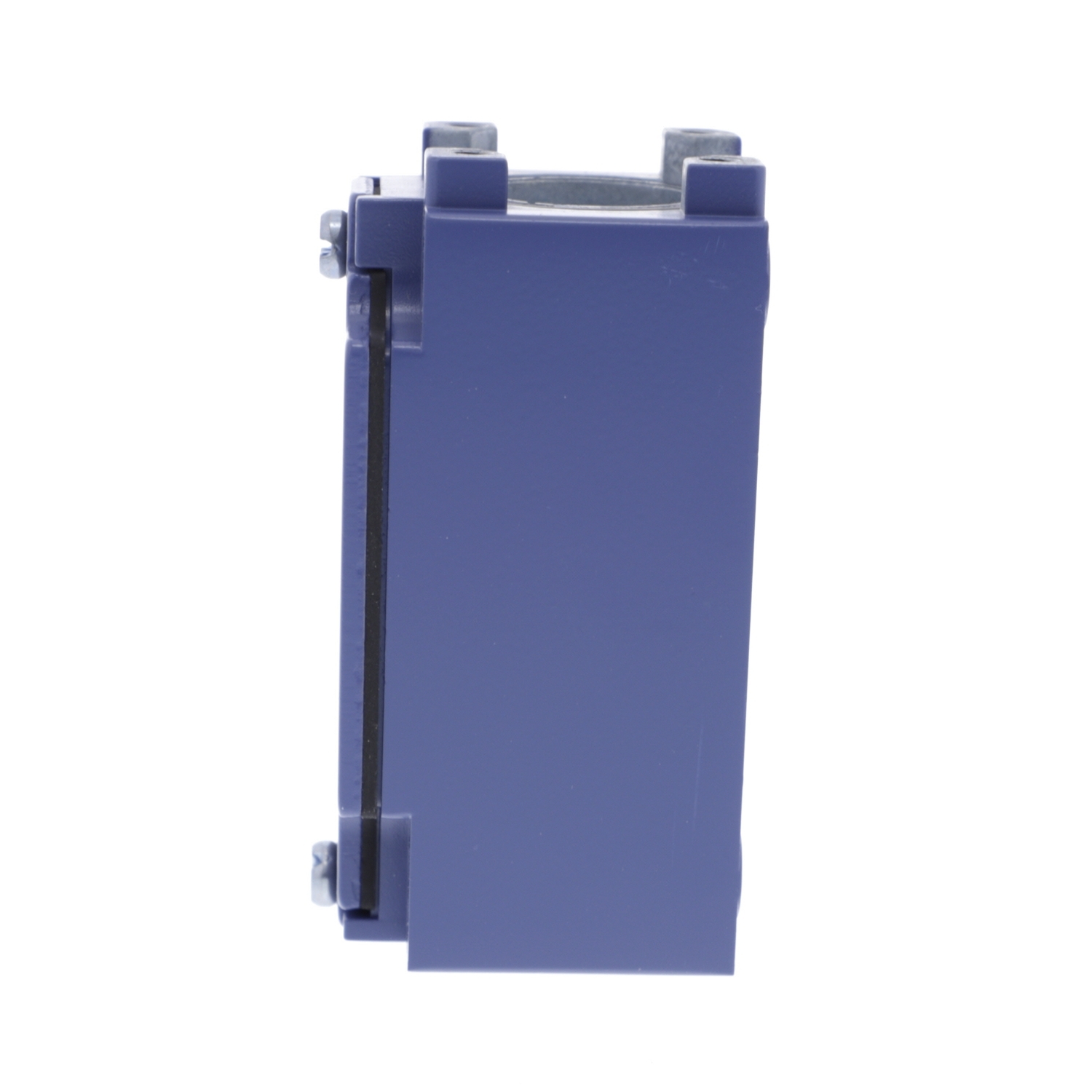

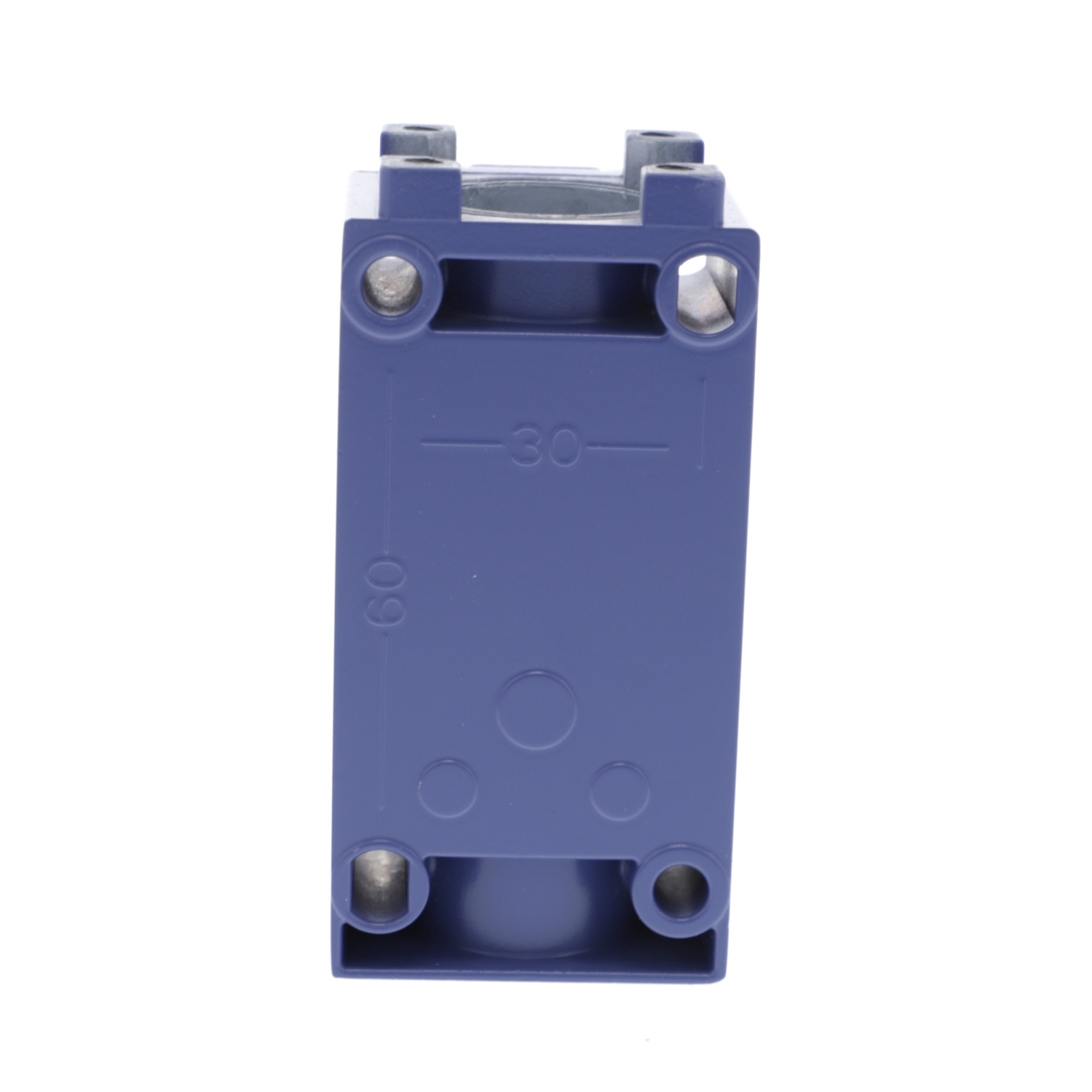

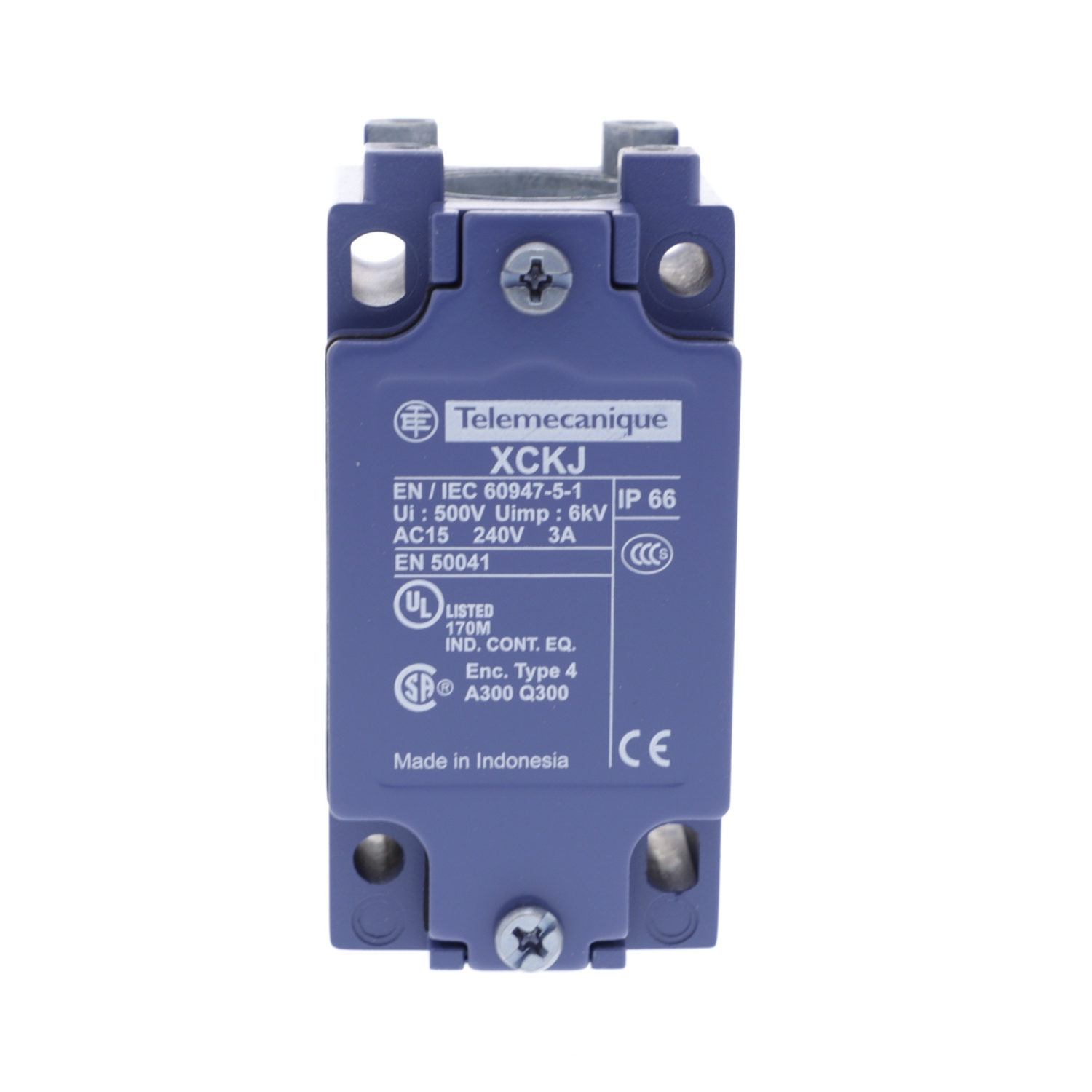

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 2 x co snap action (simultaneous) contacts and a Pg 13.5 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCKJ2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKJ
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 2 C/O
Enclosure IP66
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK07,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879612&lang=en-us
UPC 785901325451
GTIN 03389110646115
Item Type Limit switch body
Size 1.73
Environmental Conditions HIGH TEMPERATURE
Operating Temperature 10-120 A Degrees C HIGH TEMPERATURE
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
