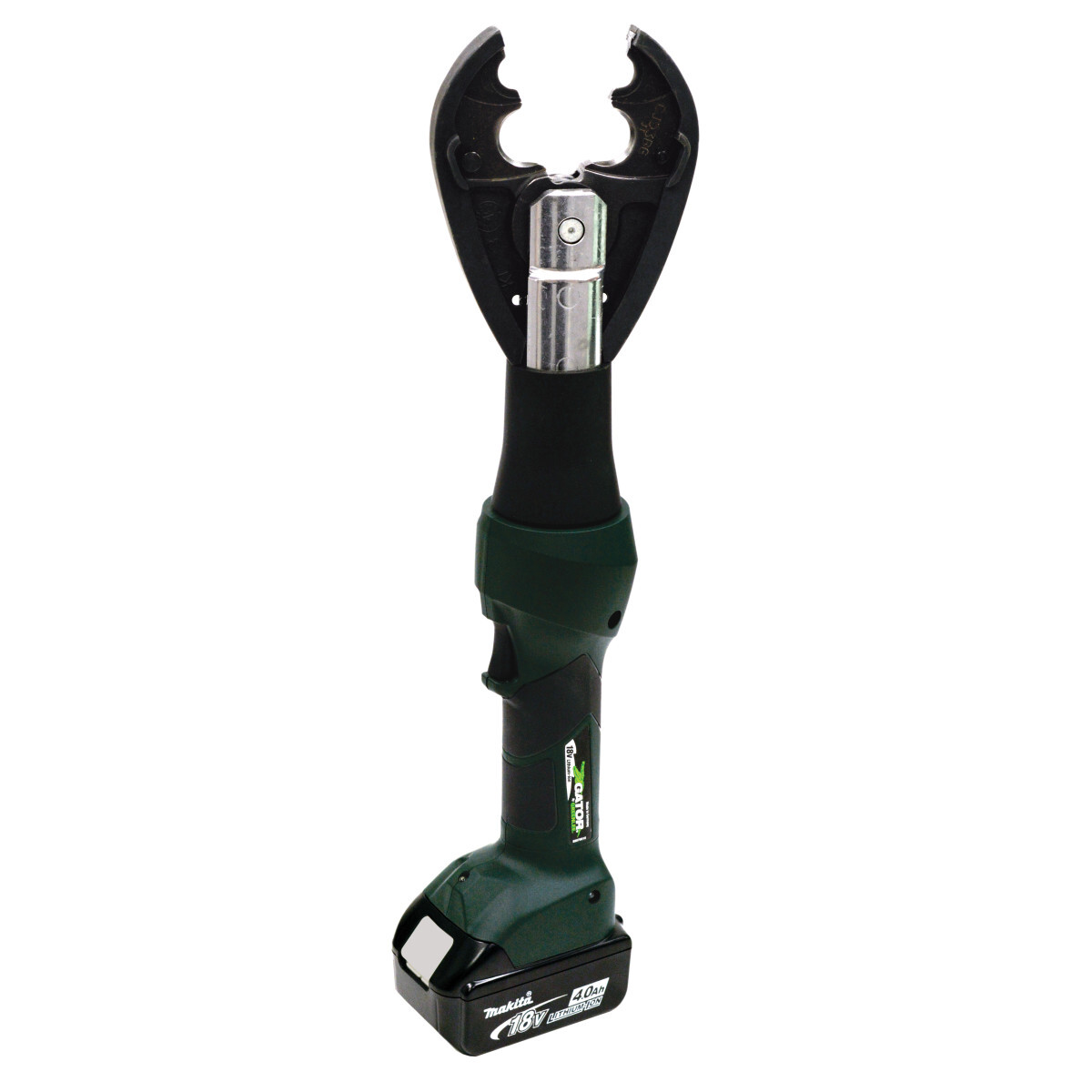

EK425LXDO11 6 Ton Crimper with CJD3O Jaws and 120V Charger

MFR:
Greenlee
MFR #:
EK425LXDO11
UPC:
783310609056
Item #:
722006

Availability

Location Available Qty
Available Available to Order
$3,616.11 each

Equipped with Bluetooth Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Operated with one hand, leaving the other hand free to position the cable and connector. The crimping jaws open wide to fit easily over connectors. In-line tool style is lightweight and very easy to control. To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp. Completes about 325 crimps per battery charge on 4/0 AWG splices. When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws. It is then ready to make the next crimp. And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications.

Manuals and Documentation
Catalog Number EK425LXDO11
Manufacturer Greenlee
Brand Greenlee
Country of Origin Germany
Made in USA No
Application 6 Ton Crimping
Connector Type Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
Special Features Equipped with Bluetooth� Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. The EK425L is operated with one hand, leaving the other hand free to position the cable and connector. The EK425L will complete about 325 crimps per battery charge on 4/0 AWG splices.
Standard C/US UL Listed
UPC 783310609056
GTIN 00783310609056
Item Type Die style crimper
Wire Size Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
