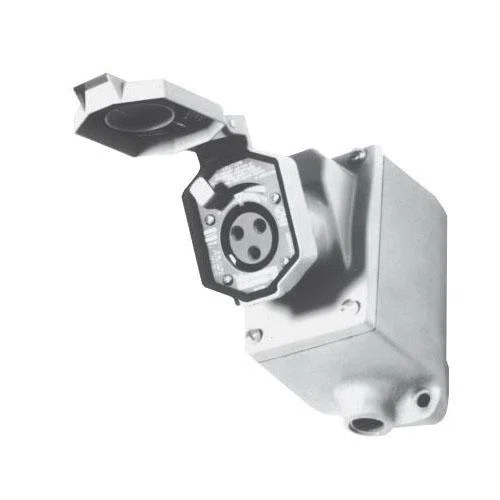

CPS732201 Arktite 1-Gang Angle Delayed Action Dead End Factory Sealed Receptacle Assembly, 125 to 250 VAC/480 VAC, 30 A
- MFR:
- Eaton
- MFR #:
- CPS732 201
- UPC:
- 782274185408
- Item #:
- 72063
CPS732201 Arktite 1-Gang Angle Delayed Action Dead End Factory Sealed Receptacle Assembly, 125 to 250 VAC/480 VAC, 30 A
- MFR #:
- CPS732 201
- UPC:
- 782274185408
- Item #:
- 72063
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3,007.04
each
Arktite CPS receptacles and CPP plugs from Eaton Crouse-Hinds Division are used with portable electrically operated devices such as motor generator sets, compressors, conveyors, portable tools and lighting systems. Used in locations that are hazardous due to the presence of flammable vapors or gases, and in damp or corrosive locations. Applicable for petroleum refineries, chemical and petrochemical plants and other process industry facilities.
Manuals and Documentation
Features
- CPS receptacles are equipped with a rotating mechanism which prevents complete withdrawal of the CPP plug-in one continuous movement
- CPS receptacles are factory sealed to simplify installation and wiring - external seals are not required
- With portable electrically operated devices such as motor-generator sets, compressors, conveyors, portable tools, lighting systems and similar equipment
- In locations which are hazardous due to the presence of flammable vapors or gases
- In petroleum refineries, chemical and petrochemical plants and other process industry facilities where similar hazards exist
- 3/8 to 7/8 in Dia cable
- Receptacles will take any of the plugs grouped in the bracket opposite the receptacle listings
- 7A, 1 hp, 480 VAC, csa certified units are rated at 600 vac at 7 a
- Grounding style two through extra pole and shell
| Manufacturer Part Number | CPS732 201 |
| Brand | Crouse-Hinds |
| Manufacturer | Eaton |
| UPC | 782274185408 |
| Country Of Origin | US |
| Amperage Rating | 30 A |
| Dimensions | 3-1/2 in L x 7-1/4 in W x 6-23/32 in H |
| Series | CPS |
| Type | 1-Gang Angle Delayed Action Dead End Factory Sealed |
| Voltage Rating | 125 to 250 VAC/480 VAC |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Standards Approvals | NEC Certified | CEC Certified | Class I, Division 1/2, Group C/D | CSA C22.2 30 | UL 1203 |
| Application | Damp and Corrosive Areas, Industrial Facilities, Factories Facility, Power Distribution and Control and Wet Location Applications |
| Includes | 3/4 in Hub |
| Terminal Type | Pressure Wire |
