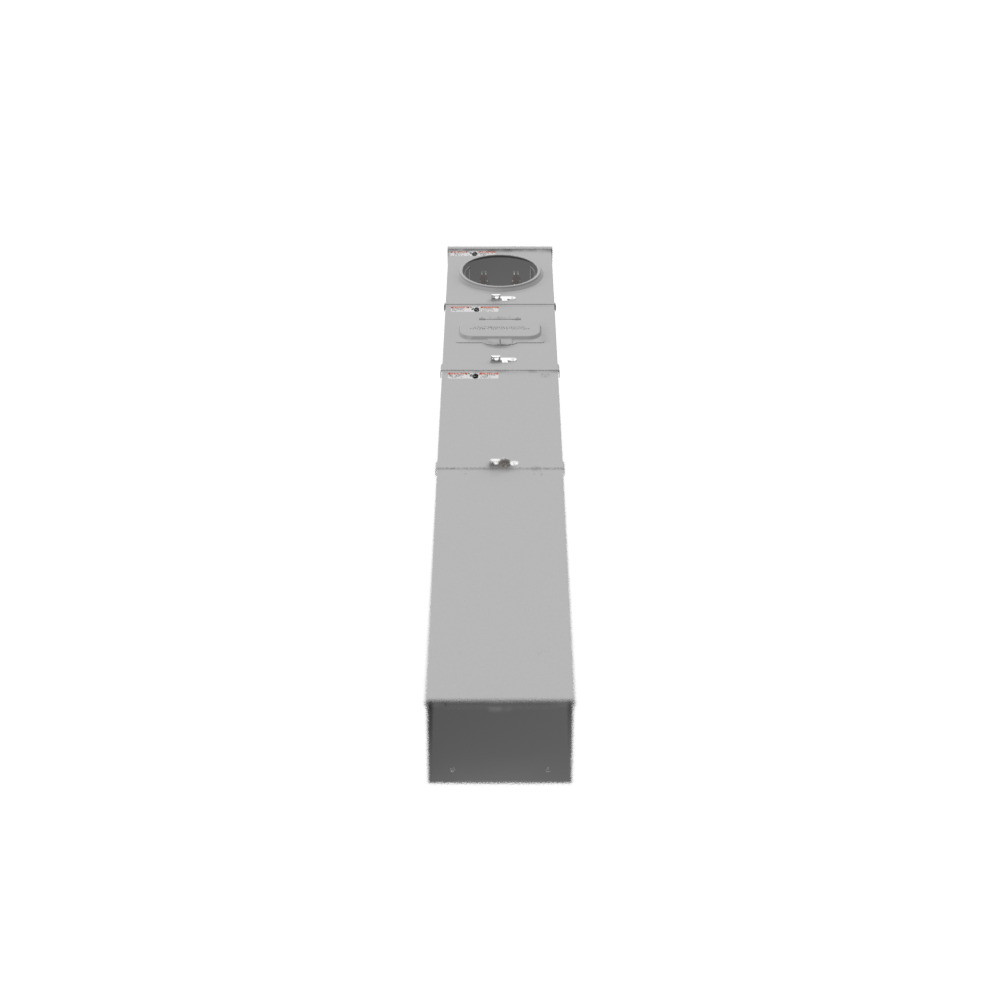

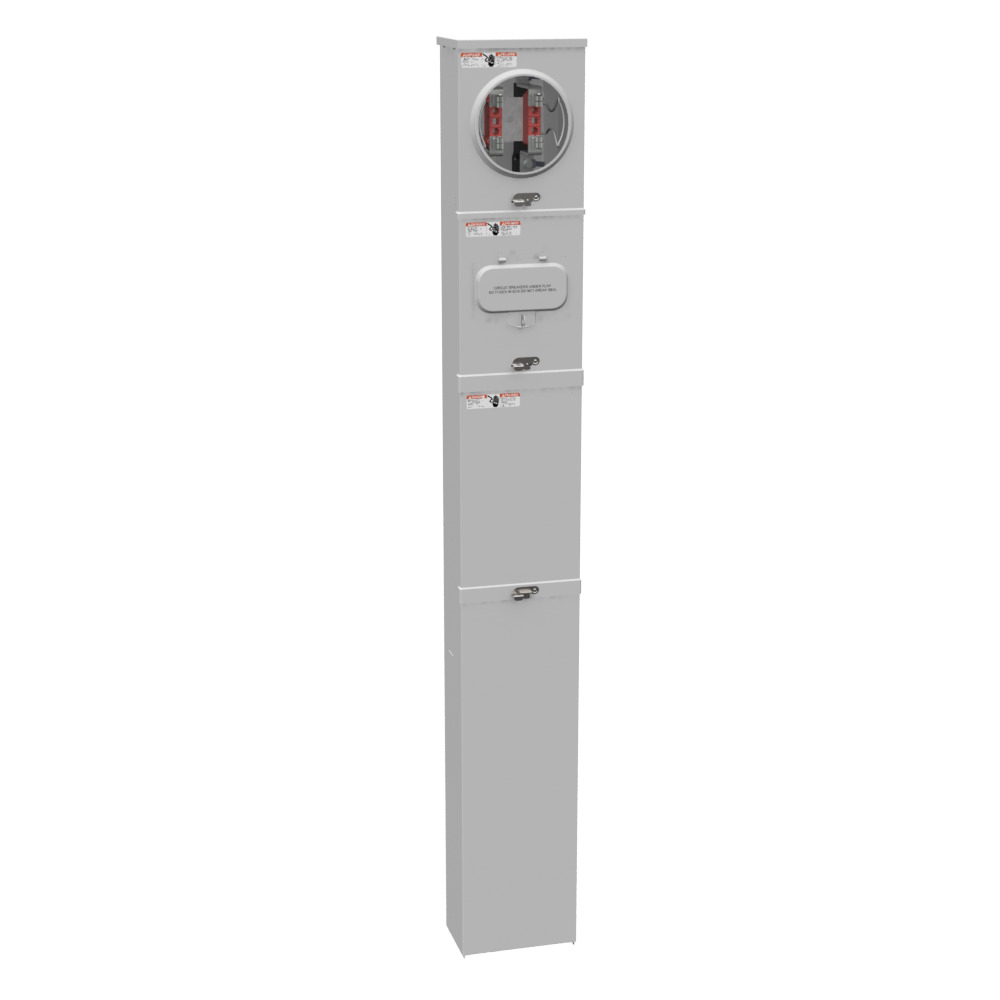

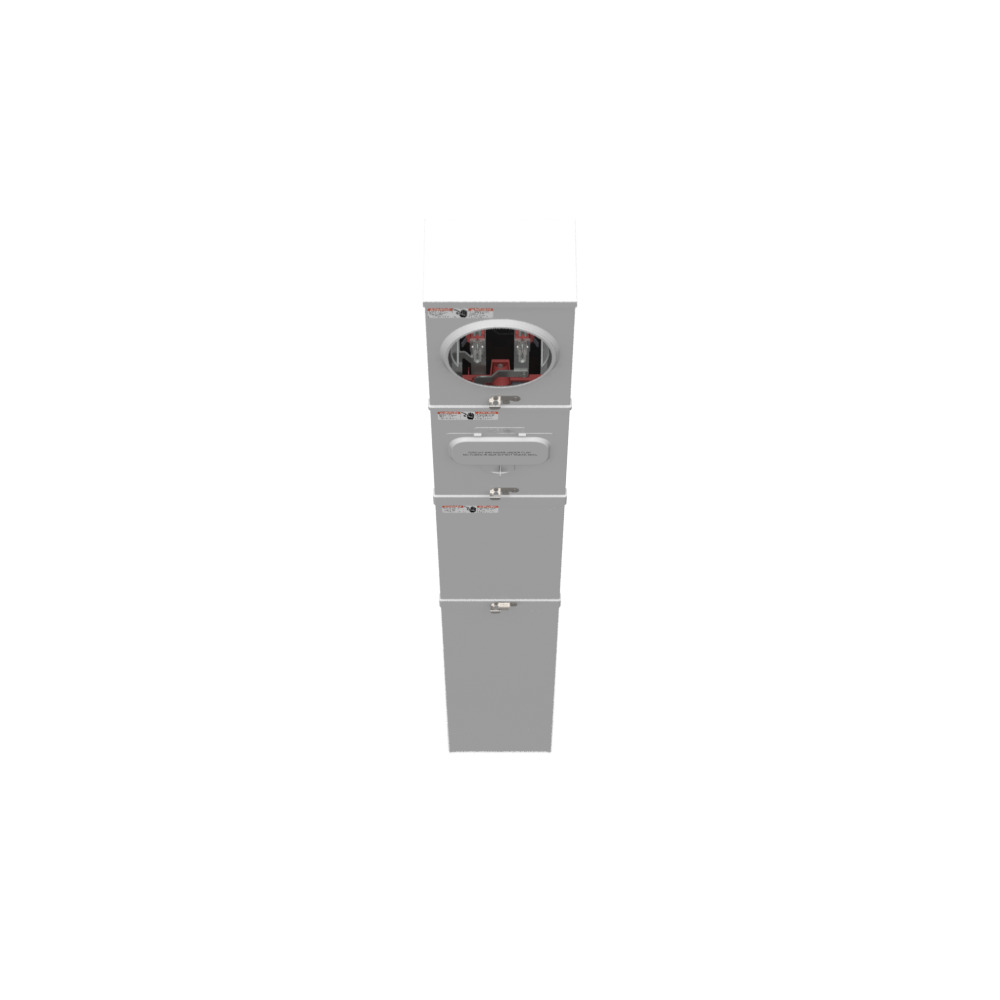

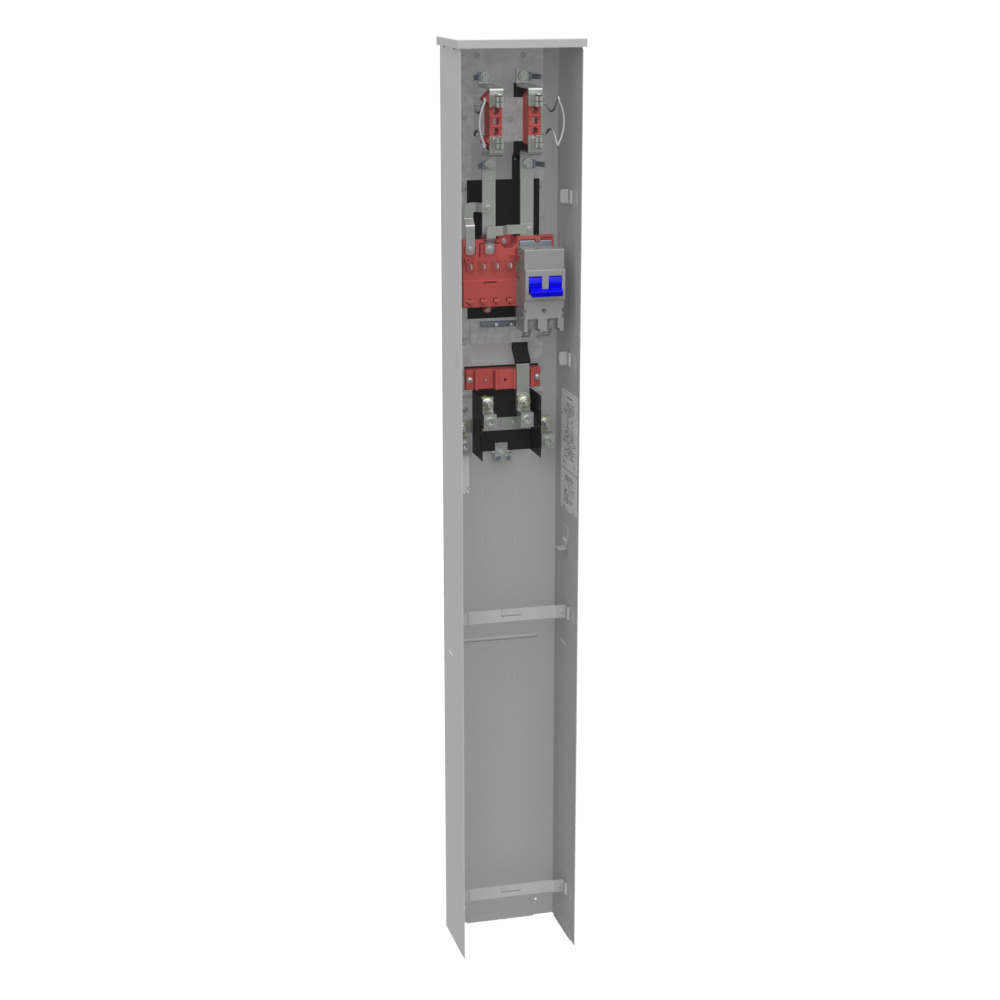

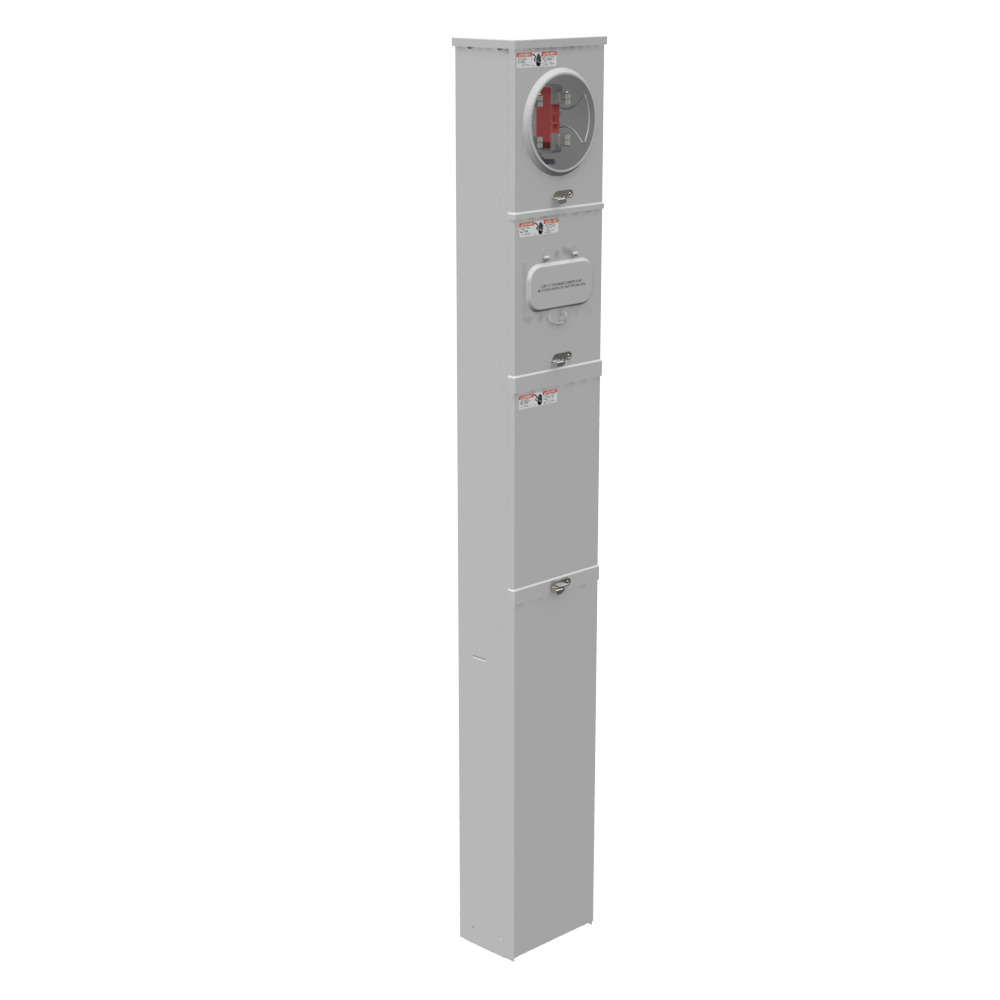

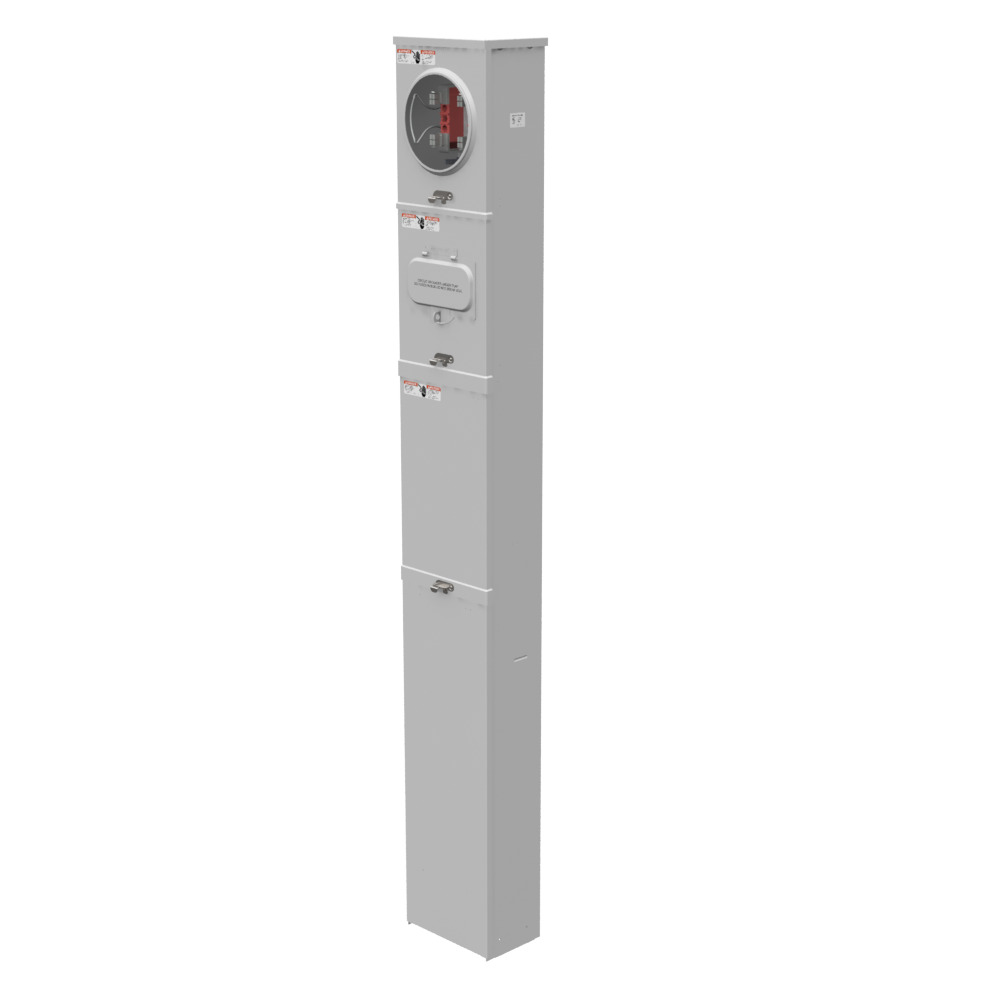

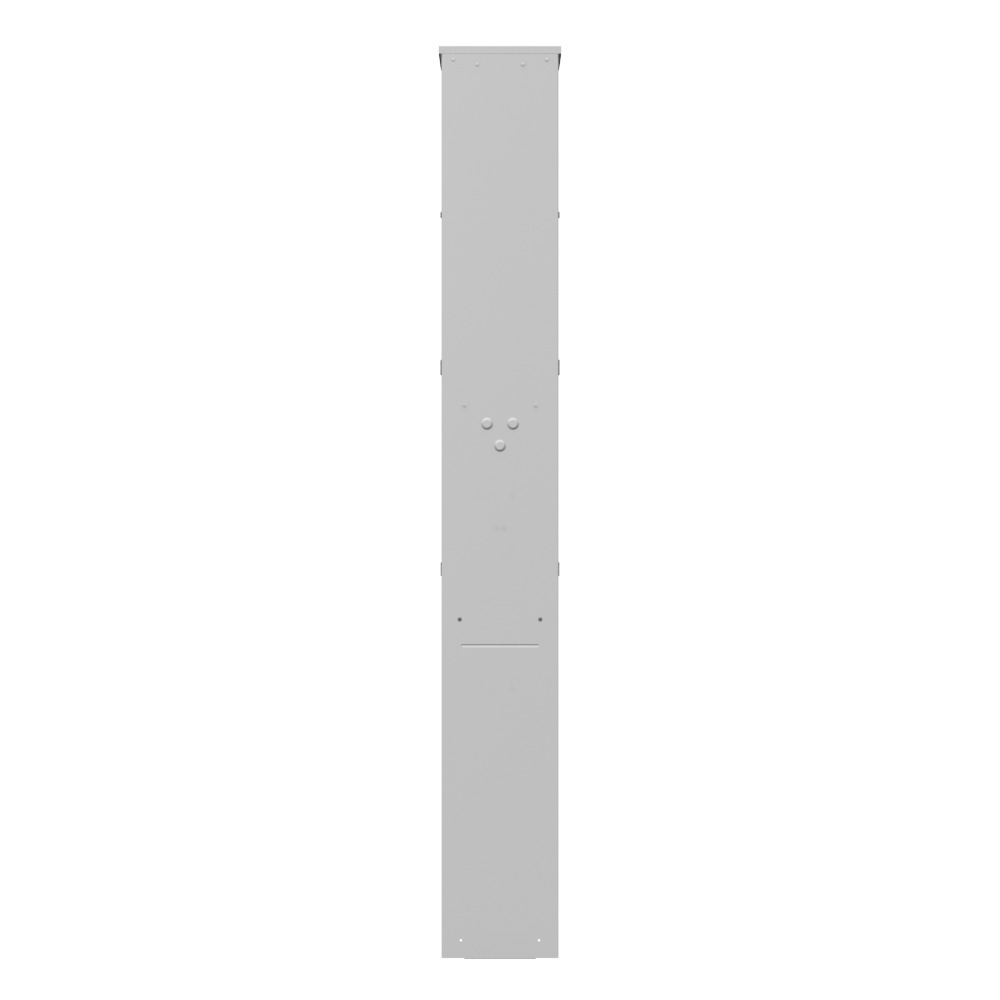

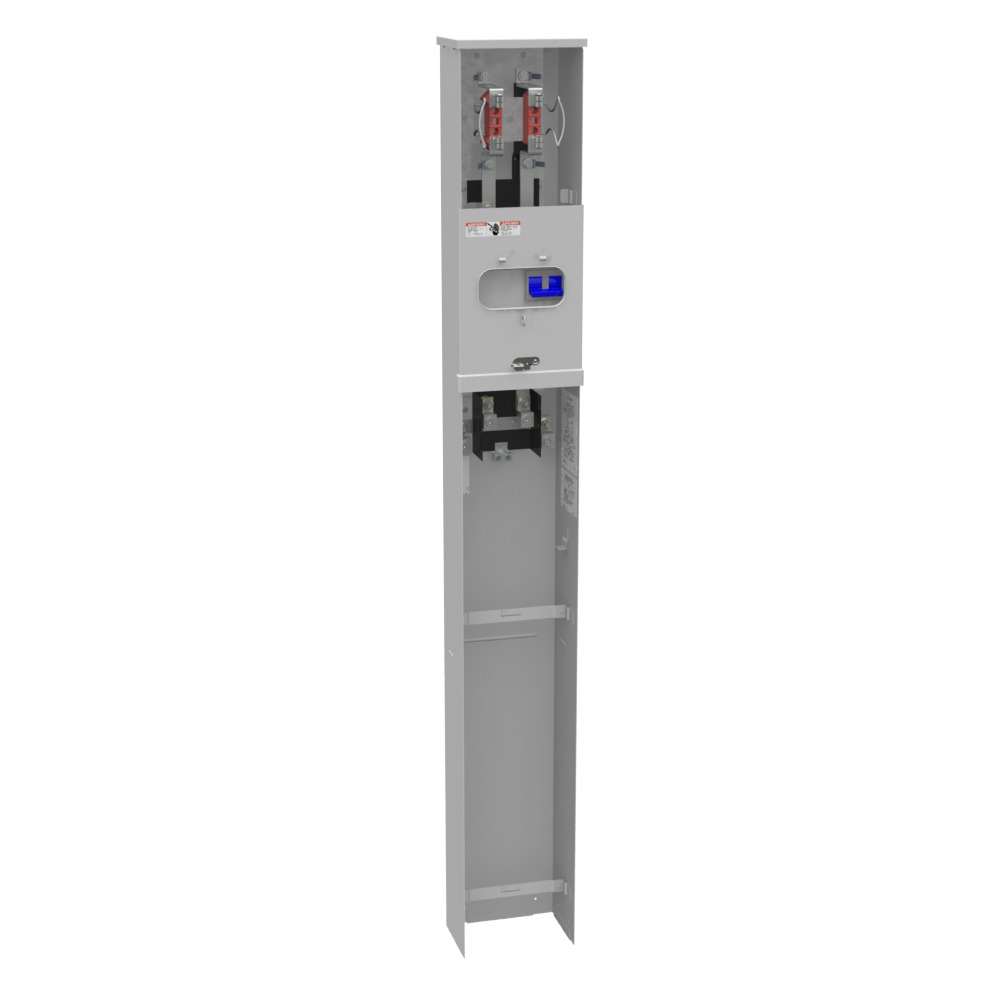

NU8980-O-SF100-KK-LP 4 Term, Ringless, PlainTop, Horn Bypass, 1-100 Amp, Main Breaker, Single Pedestal Direct Bury, Low Profile
- MFR:
- Milbank
- MFR #:
- NU8980-O-SF100-KK-LP
- UPC:
- 784572291140
- Item #:
- 714
NU8980-O-SF100-KK-LP 4 Term, Ringless, PlainTop, Horn Bypass, 1-100 Amp, Main Breaker, Single Pedestal Direct Bury, Low Profile
- MFR #:
- NU8980-O-SF100-KK-LP
- UPC:
- 784572291140
- Item #:
- 714
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,306.53
each
4 TERM RNGLS PLAINTOP HRN BYPS 1-100 AMP MN BRKR SGL PED DIR BURY LOW PROFILE
Manuals and Documentation
| Catalog Number | NU8980-O-SF100-KK-LP |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main And Load Center |
| Bypass Type | Horn |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572291140 |
| GTIN | 00784572291140 |
| Item Type | Ringless Meter Socket |
| Length | 6 |
| Length UOM | Inch |
| Width | 9 |
| Width UOM | Inch |
| Height | 70 |
| Height UOM | Inch |
| Size | 6L x 9W x 70H |
| Terminals | Single Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
