Discontinued
Telemecanique

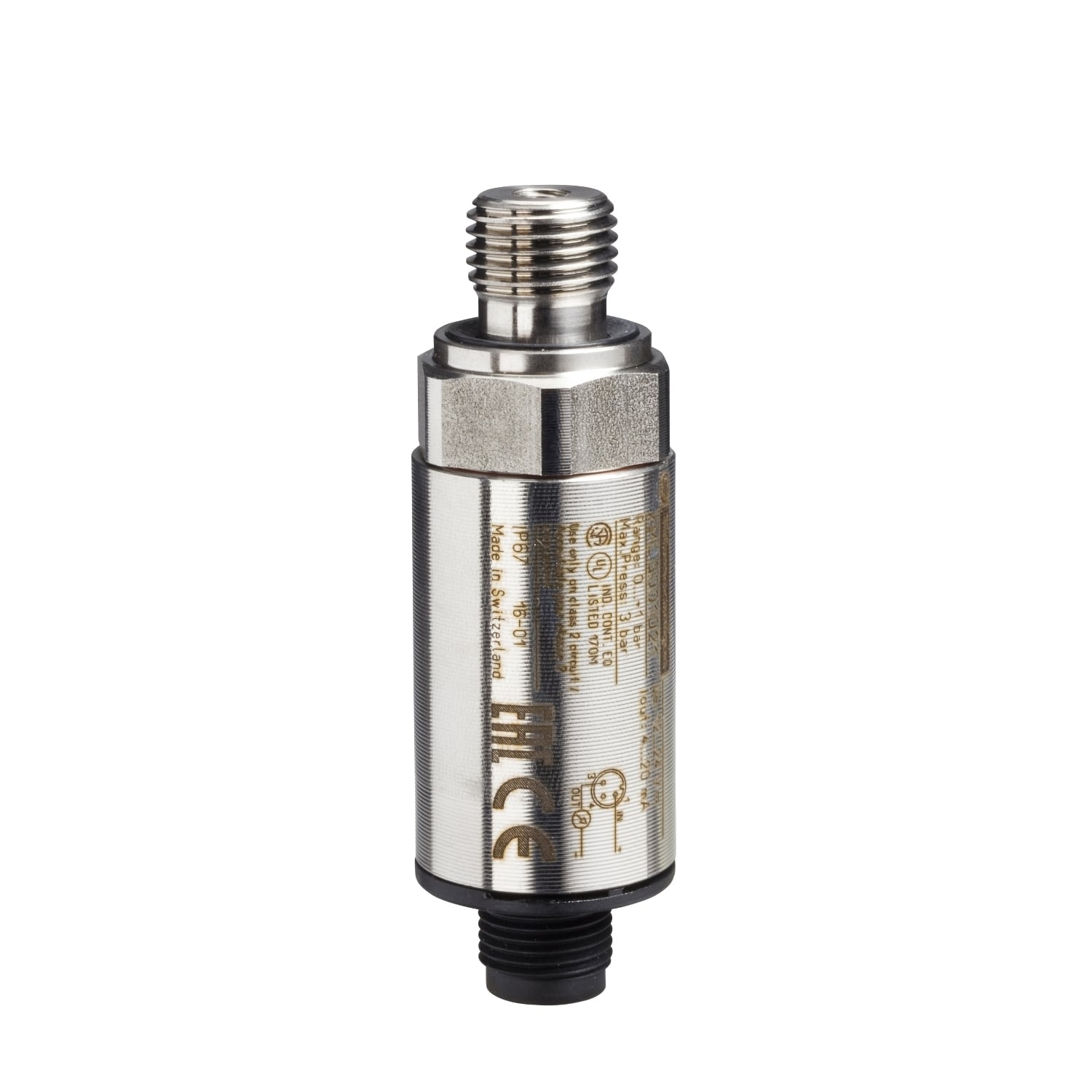

XMLG100D23TQ OsiSense XM Electronic Pressure Sensor, 1450.38 psi, <2 ms Response, Analog Output, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XMLG100D23TQ
Item #:
711713

Availability

Location Available Qty
Available Available to Order

pressure sensor XMLG - 0..100 bars - 1/4" NPT male - 24 V- 4..20 mA - set of 25

Manuals and Documentation
Catalog Number XMLG100D23TQ
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty: 18 months
Country of Origin Switzerland
Made in USA No
Application Control circuit
Enclosure NEMA 4
Process Connection 1/4IN - 18 NPT (MALE)
Special Features 3 PINS 1 MALE CONNECTOR M12,IP66 CONFORMING TO EN/IEC 60529-IP67 CONFORMING TO EN/IEC 60529
Standard 1 KV 42 OHM EN/IEC 61000-4-5-500 KV 12 OHM EN/IEC 61000-4-5,15 KV IN AIR EN/IEC 61000-4-2-8 KV ON CONTACT EN/IEC 61000-4-2,200 V/M 80-1000 HZ EN/IEC 61000-4-3,30 A/M 50 HZ EN/IEC 61000-4-8,30 V 0.15-80 HZ)EN/IEC 61000-4-6,4 KV EN/IEC 61000-4-4,CSA C22.2 NO 14-EAC-UL 508,EN/IEC 61326-2-3-CE,IP66 EN/IEC 60529-IP67 EN/IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=864046&lang=en-us
GTIN 03389118342293
Item Type Pressure transmitter;Electronic pressure sensors
Operating Temperature -15-85 A Degrees C
System Pressure 1450.38
Temperature Rating -15…125 DEGRESS C
