Discontinued
Telemecanique

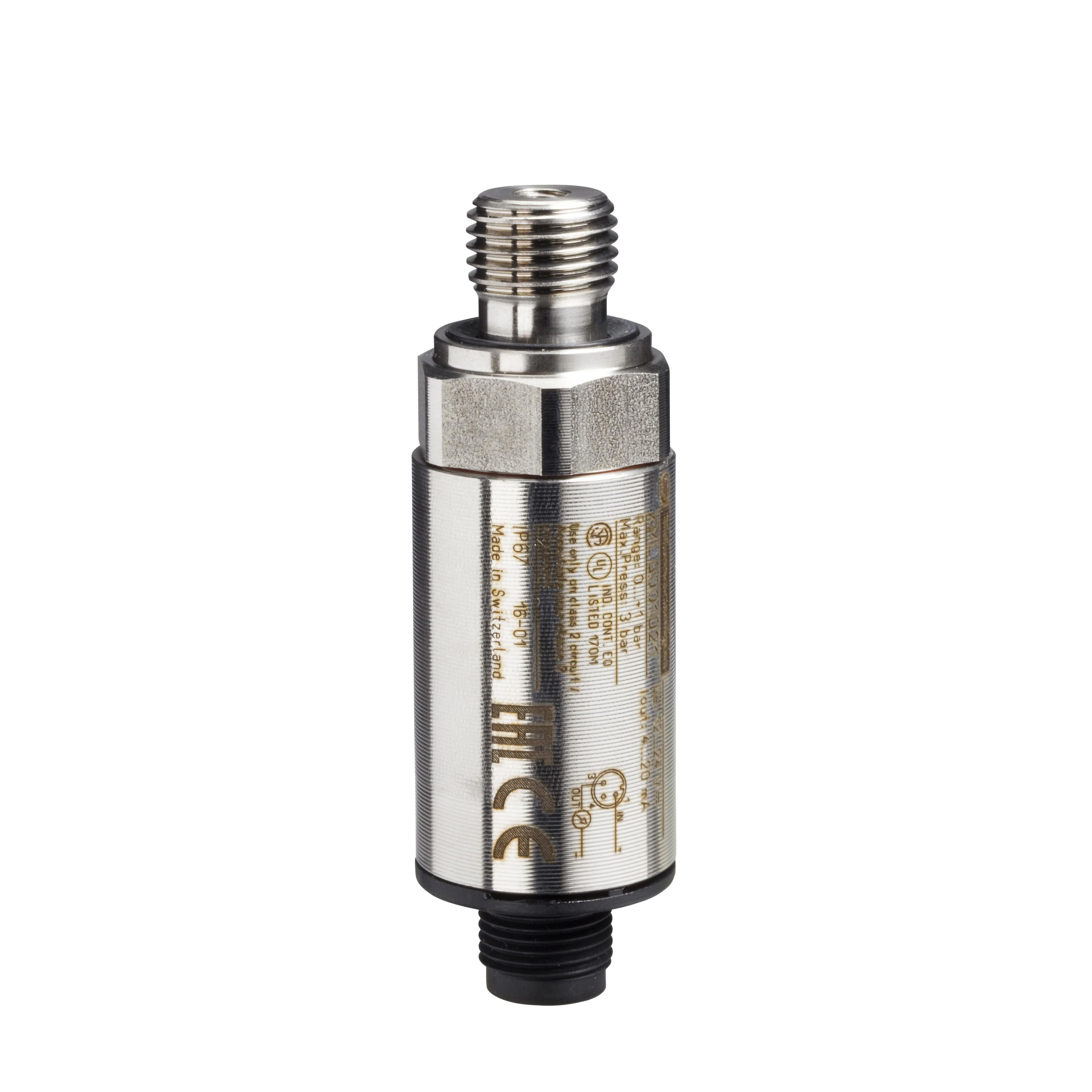

XMLG100D23TQ OsiSense XM Electronic Pressure Sensor, 1450.38 psi, <2 ms Response, Analog Output, 12 to 24 V DC

MFR:
YAGEO Corporation
MFR #:
XMLG100D23TQ
Item #:
711713

Availability

Location Available Qty
Available Available to Order

Telemecanique OsiSense® XM Electronic Pressure Sensor, Series: XMLG, 1450.38 psi Sensing Range, <2 ms Response, Analog Output, 12 to 24 V DC, <20 mA, (1) 3-Pin M12 Male Connector x 1/4-18 MNPT, 0 to 1450.38 psi, 22.8 mm Dia x 48.5 mm L, IP66/IP67 Enclosure, 5 to 185 deg F Operating, Environmental Conditions: -40 to 185 deg F Storage Temperature

Manuals and Documentation
Manufacturer Part Number XMLG100D23TQ
Stripped Manufacturer Part Number XMLG100D23TQ
Brand Telemecanique
Manufacturer YAGEO Corporation
EAN 3389118342293
Country Of Origin CH
Amperage Rating <20 mA
Enclosure Type IP66/IP67
Series XMLG
Voltage Rating 12 to 24 V DC
Size 22.8 mm Dia x 48.5 mm L
Alternative Part Number 12022835
Manufacturer Item Status Active
Country USA
Warranty 18 months
Standards Approvals CE Certified | CSA C22.2 14 | ECCN: EAR99 | EAC Certified | EN/IEC 61000-4-5 | EN/IEC 61326-2-3 | EN/IEC 61000-4-3 | EN/IEC 61000-4-4 | EN/IEC 61000-4-6 | EN/IEC 61000-4-8 | EN/IEC 60529 | REACH Compliant | RoHS Compliant | UL File No. 508 | PROP65: This product can expose you to chemicals including, Di-isononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Connection Type (1) 3-Pin M12 Male Connector x 1/4-18 MNPT
Environmental Conditions -40 to 185 deg F Storage Temperature
Operating Temperature 5 to 185 deg F
Output Type Analog
Pressure Rating 0 to 1450.38 psi
Response Time <2 ms
Sensing Range 1450.38 psi
