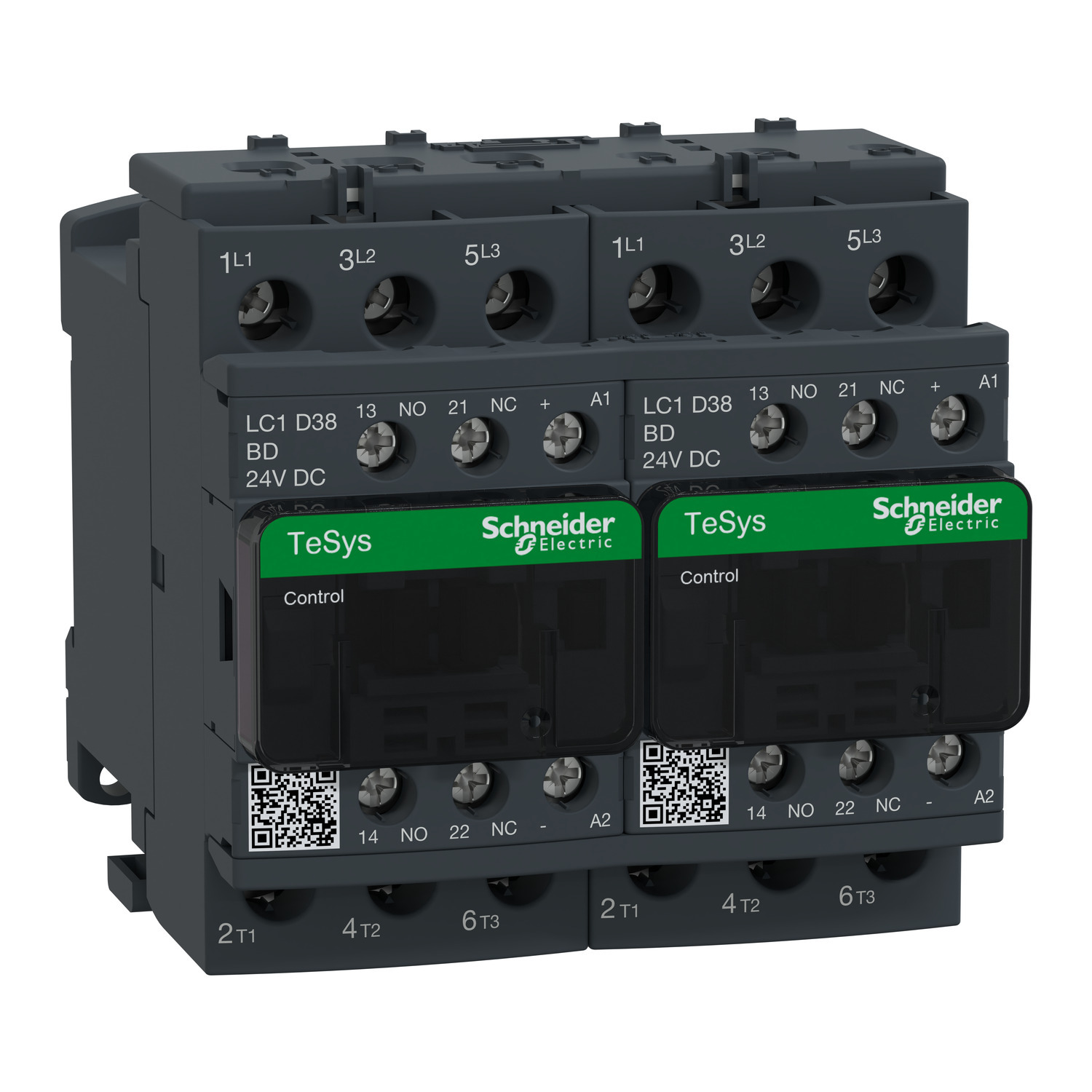

LC2D38BD TeSys D Reversing Contactor With Mechanical and Safety Cover, 24 V DC V Coil, 50 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2D38BD
- Item #:
- 711047
LC2D38BD TeSys D Reversing Contactor With Mechanical and Safety Cover, 24 V DC V Coil, 50 A, 3NO Contact, 3 Poles
- MFR #:
- LC2D38BD
- Item #:
- 711047
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$773.64
each
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 38A/690V AC-3 (18.5kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | LC2D38BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 24 V DC |
| Contact Configuration | 1 NO + 1 NC |
| Standard | UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA;CB |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=627698&lang=en-us |
| GTIN | 03389110393163 |
| Item Type | Reversing contactor;LC2D |
