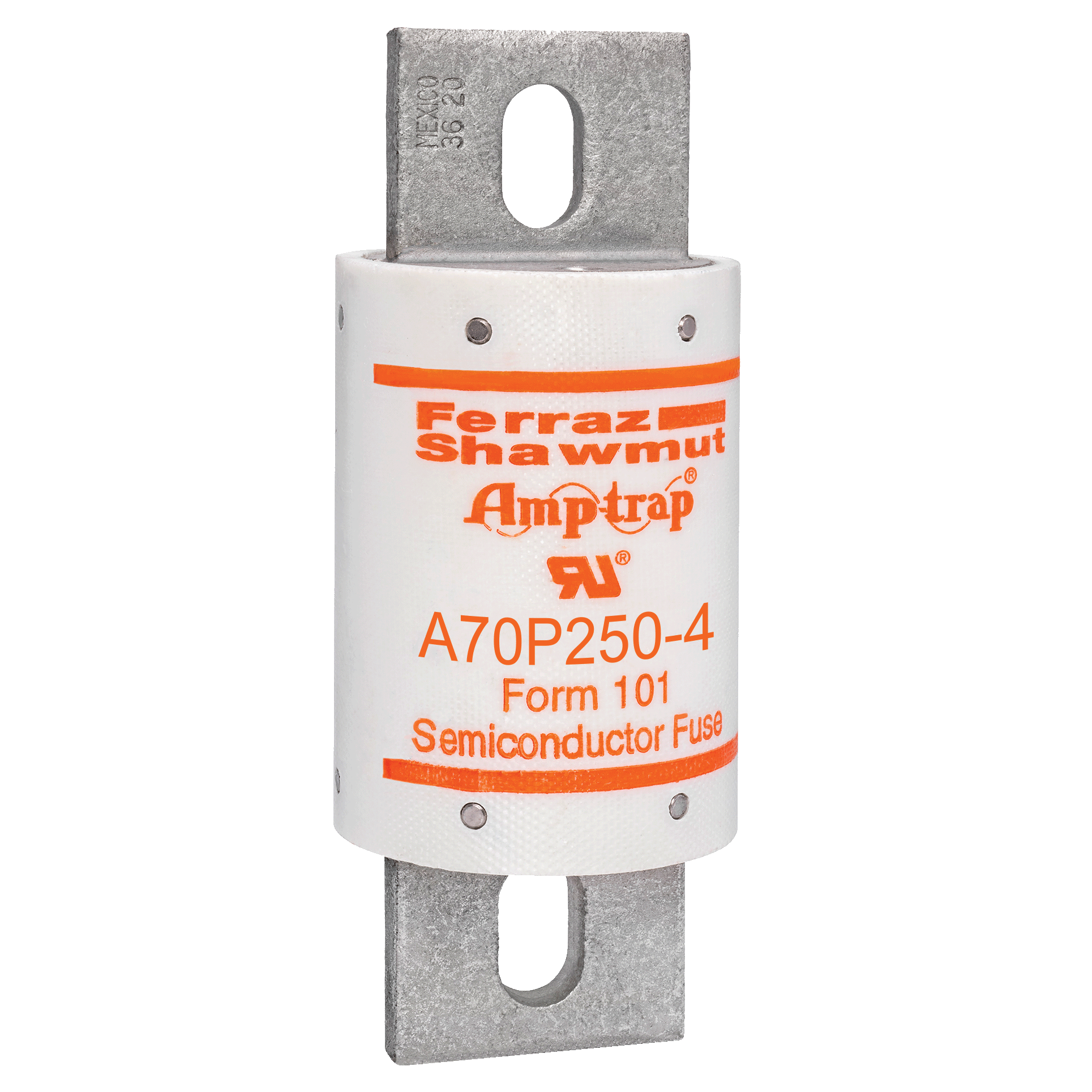

A70P250-4 Amp-Trap A70P Current Limiting High Speed Semiconductor Fuse, 250 A, 700 V AC/650 V DC, 100 kA Interrupt, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A70P250-4
- UPC:
- 782001947316
- Item #:
- 70987
A70P250-4 Amp-Trap A70P Current Limiting High Speed Semiconductor Fuse, 250 A, 700 V AC/650 V DC, 100 kA Interrupt, Cylindrical Body
- MFR #:
- A70P250-4
- UPC:
- 782001947316
- Item #:
- 70987
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,091.94
each
High Speed Fuse Amp-Trap A70P 700VAC 650VDC 250A Bolted Blade
Manuals and Documentation
| Catalog Number | A70P250-4 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 250 |
| Application | Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc. |
| Connection | Blade |
| Mounting | Bolt |
| Special Features | Low I2t minimizes damage to protected components on short circuit Controlled arc voltage reduces stress to circuit components during fuse clearing Choice of mounting types helps in equipment design |
| Standard | UL recognized component UL File E60314 AC: guide no. JFHR2 (10-1000A) DC: tested to UL standard 198L parameters (10-800A) |
| UPC | 782001947316 |
| GTIN | 00782001947316 |
| Item Type | Round Body High-Speed Fuse-Links AC Protection |
| Size | 5.09 x 2 |
| Voltage Rating | 700 |
