Telemecanique

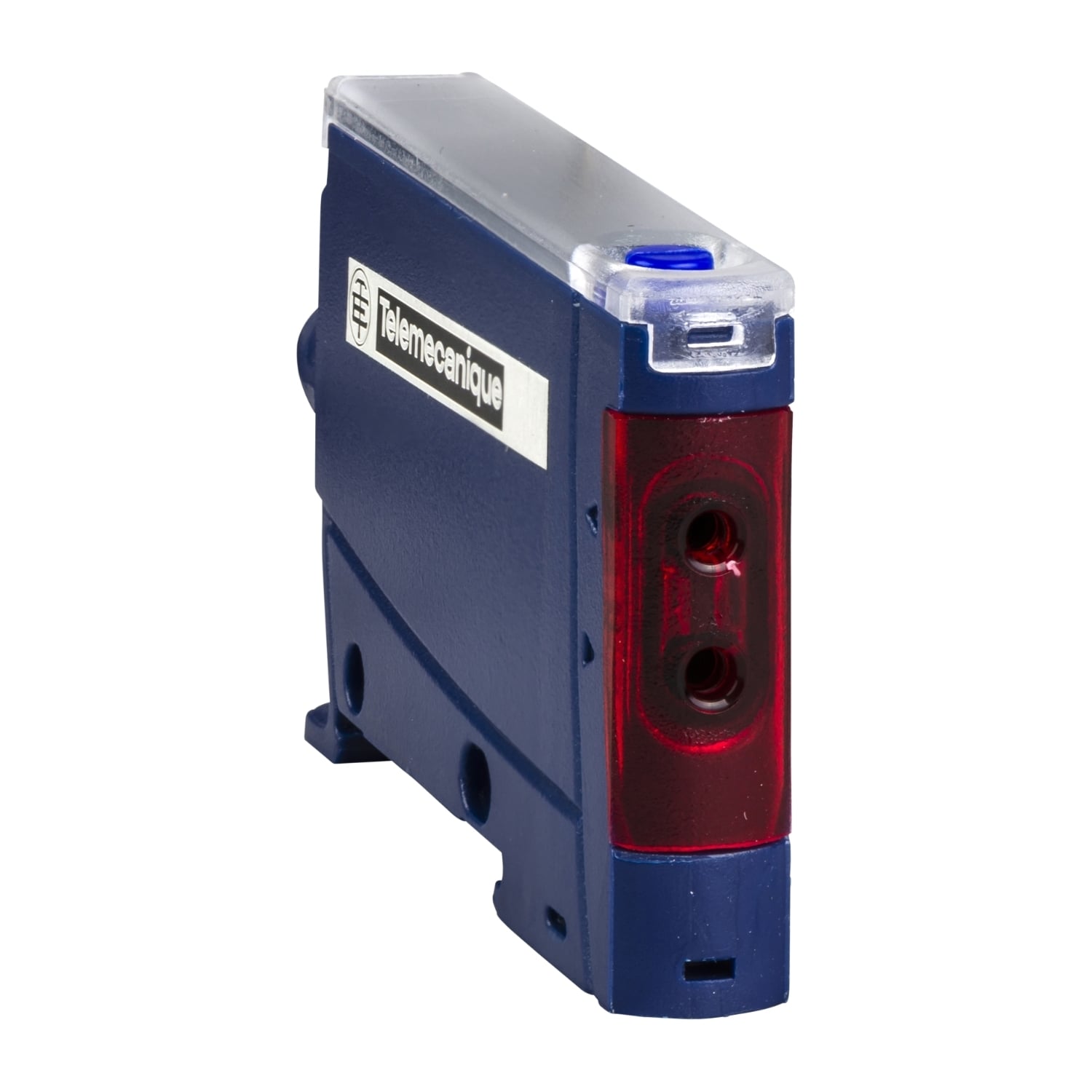

XUDA2PSMM8 OsiSense XU 3-Wire Fiber Design Photoelectric Sensor With Fine Adjustment, 4-Digit Screen, Photoelectric Sensing Beam, 120 ms Response, PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUDA2PSMM8
UPC:
785901840657
Item #:
707866

Availability

Location Available Qty
Available Available to Order
$461.39 each

This product is part of the XU range, an offer of photoelectric sensors. The photoelectric sensor provides PNP, normally open/normally closed programmable and solid state discrete output. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection. It is furnished with 4-pin M8 male connector for electrical connection. The sensor emitting colour is red. Green/yellow LEDs for indicating sensor status. This fibre design photo-electric sensor has amplifiers with fine adjustment and 4-digit screen. It is an IP64 and IP65 rated product. Its dimensions are 40mm (width) x 10mm (depth) x 65mm (height) and weighs 0.04kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CULus and CE. This sensor is compatible with glass or plastic fibre optics 1mm or 2.2mm. Ex Osiris, OsiSense XU is for non-contact sensing up to a hundred metres of objects of any shape and any type. A photo-electric sensor basically comprises a light beam transmitter (light-emitting diode) and a light-sensitive receiver (photo-transistor). A light-emitting diode is an electronic semi-conductor component.

Manuals and Documentation
Catalog Number XUDA2PSMM8
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application APPLICATION, ASSEMBLY
Connection 1 male connector M8, 4 pins
Enclosure IP64 IEC 529 OPTIC FIBER Ø 1 MMIP65 IEC 529 OPTIC FIBER Ø 2 MM PBT
Operating Cycles <= 1 kHz;<= 5 kHz
Output PNP;1 NO or 1 NC programmable;Discrete;Solid state
Response Time < 120 MS
Special Features Stability 1 LED green);output state 1 LED yellow)
Standard IP64 OPTIC FIBER Ø 1 MM IEC 529-IP65 OPTIC FIBER Ø 2 MM IEC 529,CULUS-CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873318&lang=en-us
UPC 785901840657
GTIN 03389110160338
Item Type Application assembly;Fiber design;Photo-electric sensor
Size 0.39
Operating Temperature -10...55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
