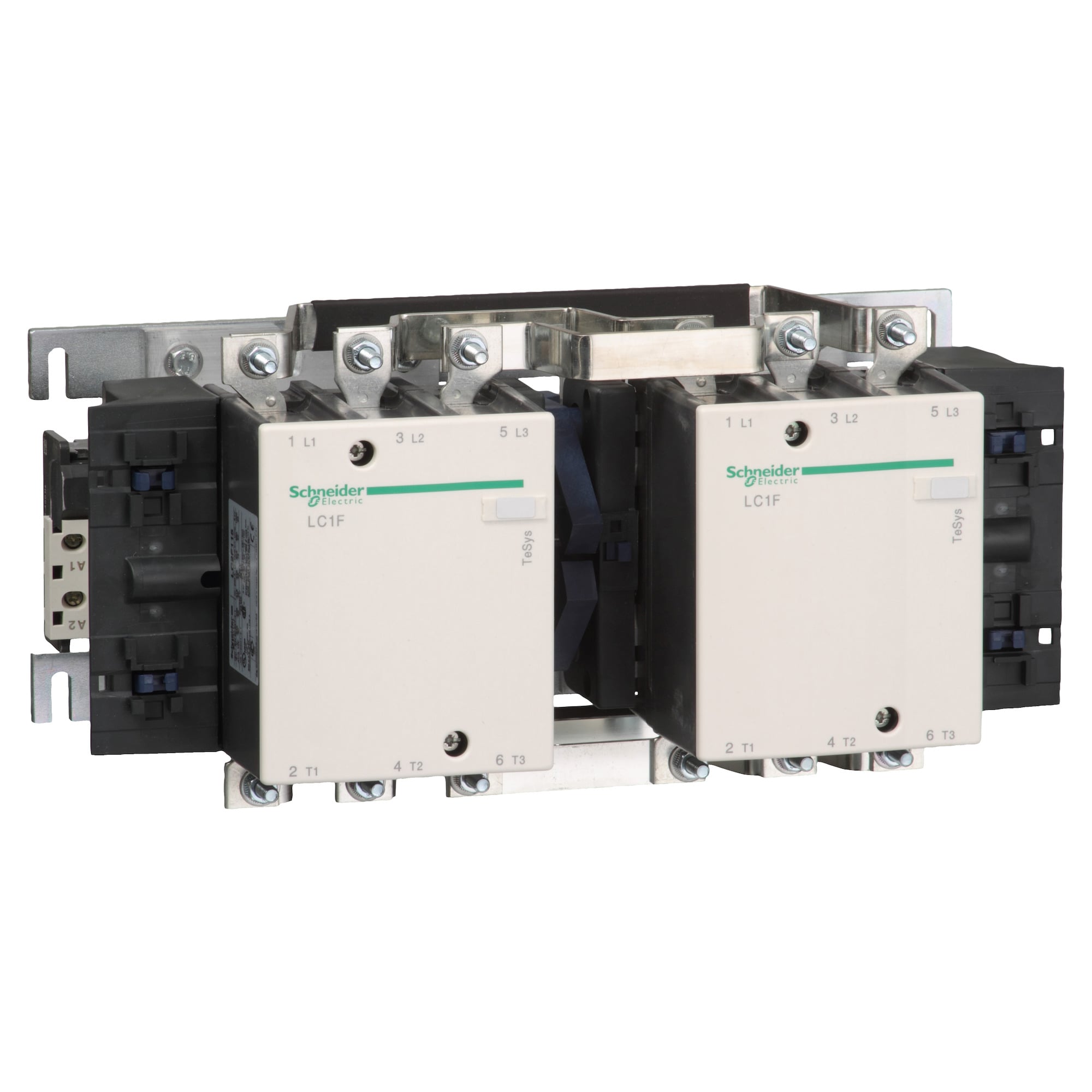

LC2F115 LC1F TeSys F High Power Contactors, 1000 V AC, 460 V DC V Coil, 115 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2F115
- Item #:
- 707703
LC2F115 LC1F TeSys F High Power Contactors, 1000 V AC, 460 V DC V Coil, 115 A, 3NO Contact, 3 Poles
- MFR #:
- LC2F115
- Item #:
- 707703
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys F reversing contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V. Without coil (to be ordered separately), it provides bolt terminals for bars or cables with lugs. Equipped with pre-wired reversing power connections, mechanical interlock, without electrical interlocking. Without build-in auxiliary contacts, front mounting auxiliary contact blocks LADN*1 to be added for electrical interlocking (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Manuals and Documentation
| Catalog Number | LC2F115 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Motor control;resistive load |
| Contact Configuration | 1 NO |
| Standard | RMRoS;CCC;UL;RINA;LROS (Lloyds register of shipping);CB;DNV;CSA;ABS;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=629130&lang=en-us |
| GTIN | 03389110227369 |
| Item Type | Reversing contactor;LC2F |
