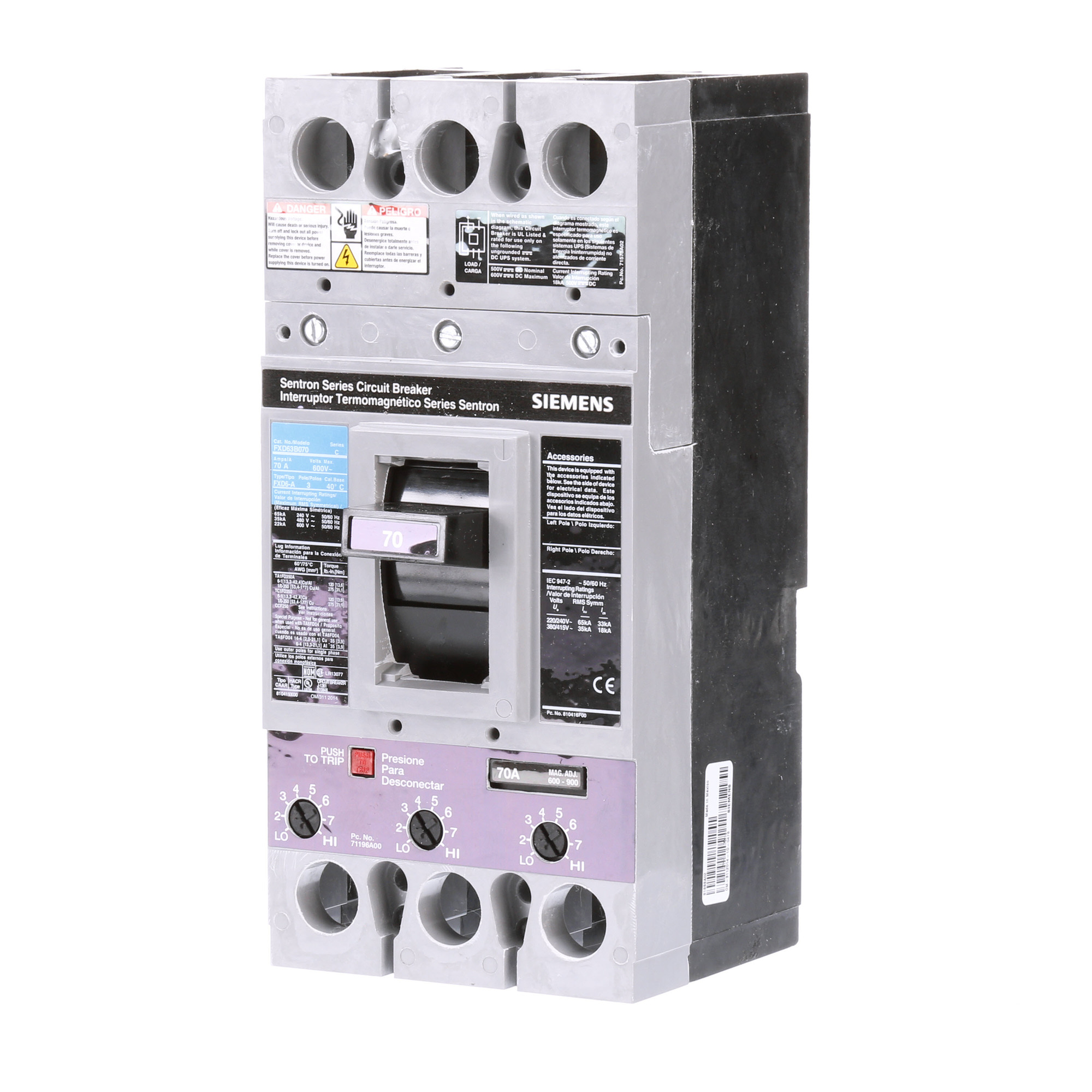

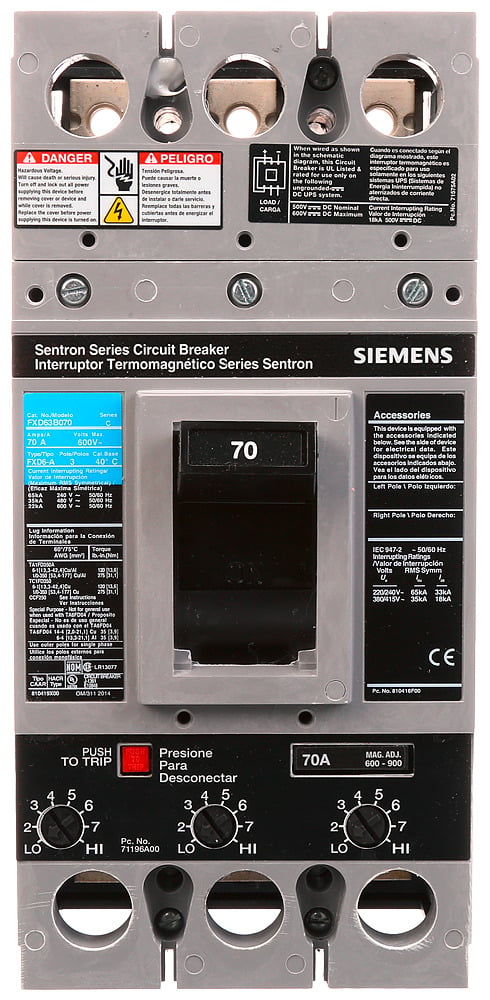

LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
MFR: Siemens
MFR #: FXD63B070
UPC: 783643211193
Item #: 706603
LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
MFR #: FXD63B070
UPC: 783643211193
Item #: 706603
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$15819.18
each
- Catalog Number
- FXD63B070
- Manufacturer
- Siemens
- Brand
- Siemens
- Sub Brand
- Sentron
- Country of Origin
- Mexico
- Made in USA
- No
- Actuator
- Varying
- Application
- Standard 40C Breaker
- Enclosure
- Varying
- Frame
- FD
- Frequency Rating
- 50/60 HZ
- Interrupt Rating
- 22KAIC
- Number of Poles
- 3
- Standard
- HACR
- UPC
- 783643211193
- GTIN
- 00783643211193
- Item Type
- FXD6
- Length
- 5.500
- Width
- 6.900
- Height
- 11.3
- Height UOM
- Inch
- Operating Temperature
- 40C
- Trip Range
- 600-900
- Trip Type
- Thermal-Magnetic
- Voltage Rating
- 600
