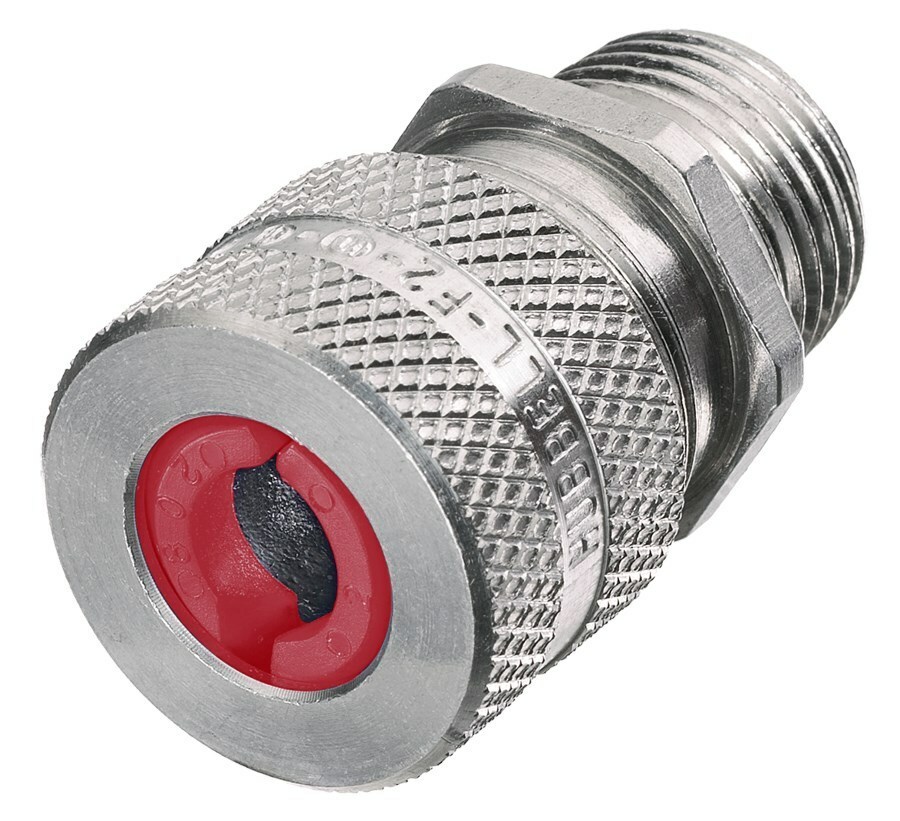

SHC1003 SHC Form 1 Standard Duty Straight Cord Connector, 1/4 in Trade, (1) Conductors, 0.19 to 0.25 in Cable Openings, Aluminum, Machined

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SHC1003
UPC:
783585200033
Item #:
706227

Availability

Location Available Qty
Available Available to Order
$12.68 each

Cord Connectors - Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from " to 3" in straight male end, 90, 45, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. The zinc-plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating. These heavy-duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials. Their machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads. For larger size cord, NPT hub sizes 1" to 2", Hubbell utilizes malleable iron connectors which provide excellent holding and Liquidtight performance. Hubbells nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. Theyre available in NPT hub sizes from " to 1". Stainless steel cord connectors provide superior strength and corrosion resistance for industrial and military applications. They are machined from 300 series stainless steel and come in " to 1", NPT hub sizes.

Catalog Number SHC1003
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Application Straight Male- Form 1
Color Metallic
Conductor Range 0.19-0.25 in (4.7- 6.3 mm)
Finish Machined
Material Aluminum
Mounting Locknut Or Tapped Opening
NEMA Rating 4, 4X, 12, 13
Number of Conductors Single
Special Features Standard Product
Standard UL Listed
UPC 783585200033
GTIN 00783585200033
Item Type Straight Male
Size 1/4" NPT
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
