Telemecanique

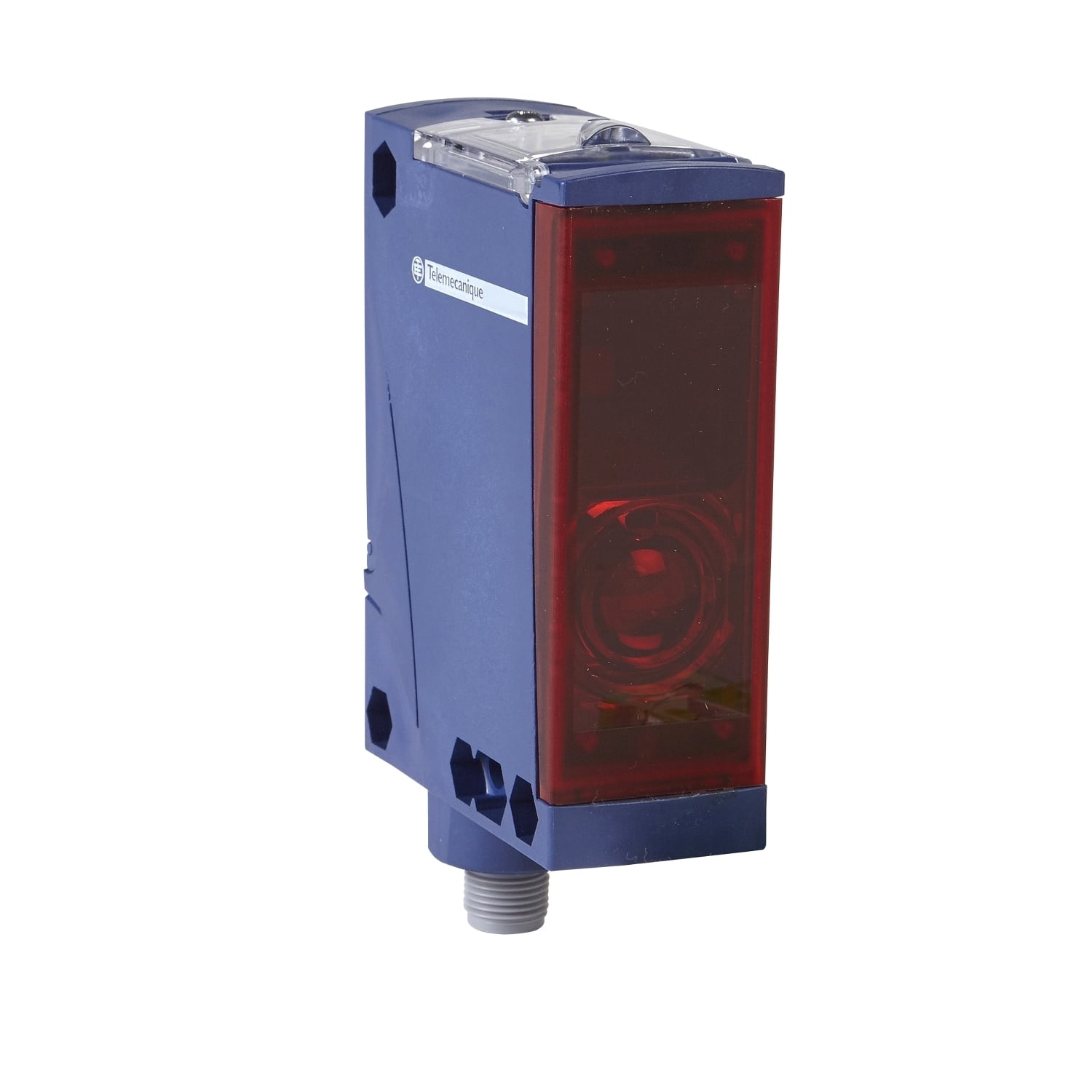

XUX8AKSAM12 OsiSense XU XUX Series Singlemode Compact Photoelectric Sensor, 2 m, Infrared Sensing Beam, 2.5 ms Response, NPN/PNP 1NO-1NC/Programmable Output

MFR:
Telemecanique Sensors
MFR #:
XUX8AKSAM12
UPC:
785901736271
Item #:
700393

Availability

Location Available Qty
Available Available to Order
$439.42 each

This photo-electric sensor is part of the XU range. It is a compact design, 92mm x 77mm, plastic sensor, with an M12 connector. It is a diffuse system sensor with adjustable background suppression, with infrared transmission. 2m nominal sensing distance with high accuracy. 3-wire, PNP or NPN programmable, with NO or NC programmable function. This sensor is suitable for wrapping and outer wrapping applications.

Manuals and Documentation
Catalog Number XUX8AKSAM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Long sensing distance with high accuracy
Connection 1 male connector M12, 4 pins
Enclosure IP30 (WITH COVER OPEN) CONFORMING TO IEC 60529-IP65 (DOUBLE INSULATION) CONFORMING TO IEC 60529-IP67 (DOUBLE INSULATION) CONFORMING TO IEC 60529,PC
Output PNP or NPN;1 NO or 1 NC programmable;Discrete;Solid state
Response Time < 3.5 MS
Sensing Range 2-2 M,> 3.28...16.4 FT (> 1...5 M)
Special Features Supply on 1 LED green);instability 1 LED red);output state 1 LED yellow)
Standard CE-CSA-UL,IP30 IEC 60529 WITH COVER OPEN)-IP65 IEC 60529 DOUBLE INSULATION)-IP67 IEC 60529 DOUBLE INSULATION)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7052776&lang=en-us
UPC 785901736271
GTIN 03389119039888
Item Type General purpose single mode;Diffuse with background suppression;Compact 92 x 71;Photo-electric sensor
Size COMPACT 92 X 71
Operating Temperature -25-55 A�C
Voltage Rating 12...24 V DC reverse polarity protection
