Square D

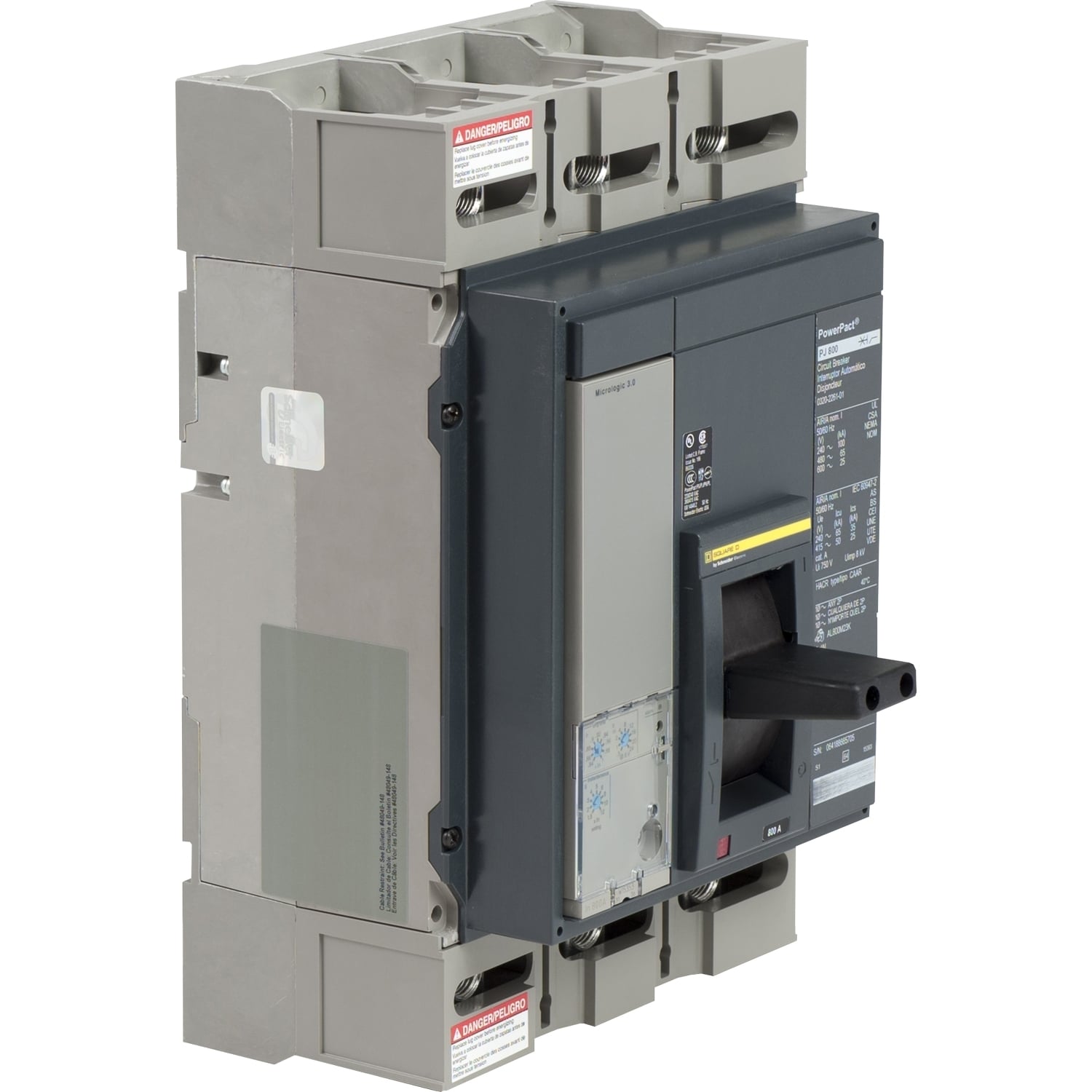

PLL34060 PowerPact MasterPact Molded Case Circuit Breaker, 480 V AC, 600 A, 125 kA at 240 V AC, 100 kA at 480 V AC, 25 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
PLL34060
UPC:
785901638339
Item #:
694277

Availability

Location Available Qty
Available Available to Order

PowerPacTP-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 600A, 3 pole, circuit breaker has an interrupting rating of 100kA at 480VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number PLL34060
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Application Distribution
Connection Lugs, line;lugs, load; 3 x AWG 3/0...500 kcmil aluminium/copper
Control Toggle
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434047&lang=en-us
UPC 785901638339
GTIN 00785901638339
Item Type Circuit breaker
Width 8.27
Width UOM Inch
Height 12.86
Height UOM Inch
Depth 8.05 IN
Trip Type Electronic, basic, ET 1.0I, I
