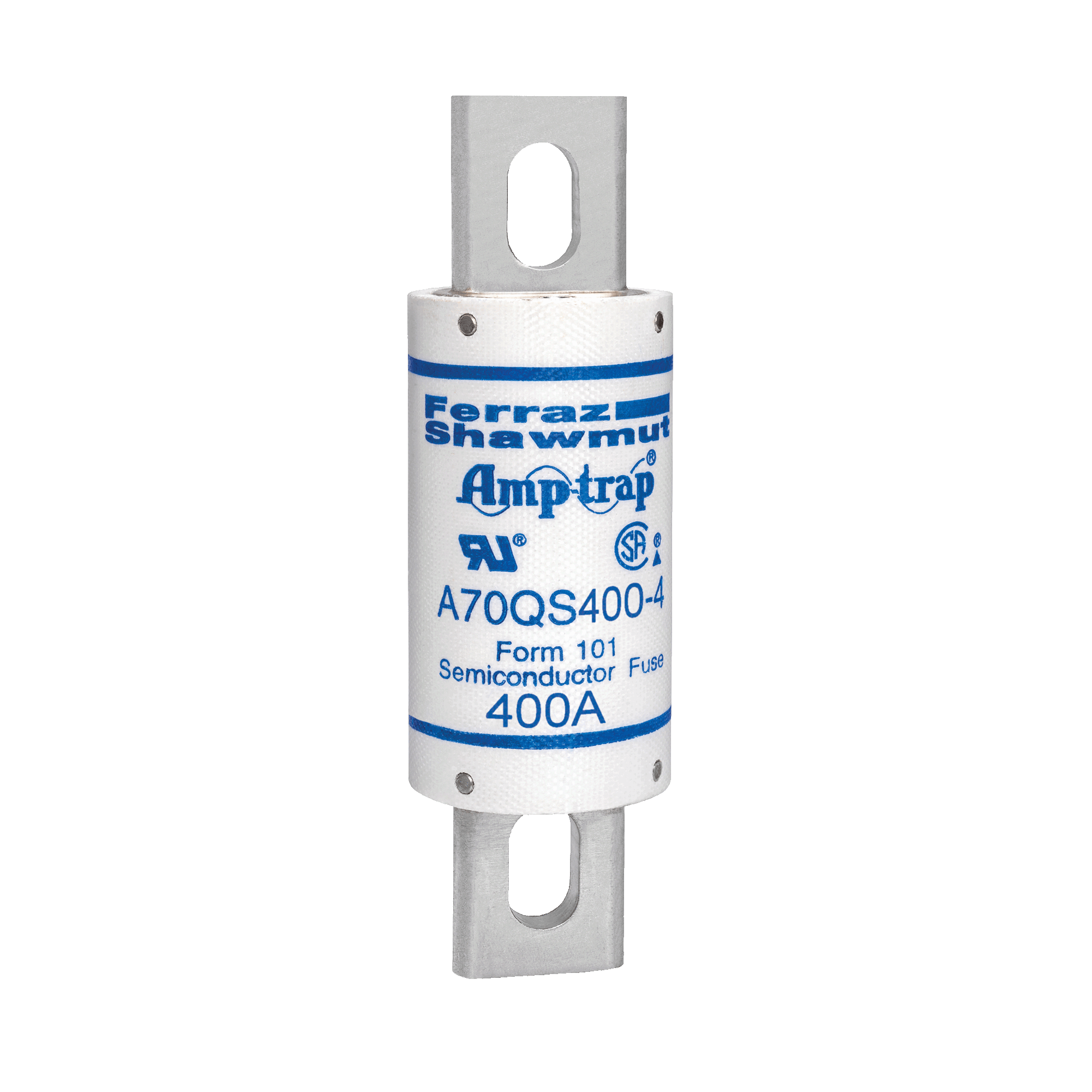

A70QS400-4 Amp-Trap High Speed Semiconductor Fuse, 400 A, 690 V AC/700 V DC, 200/100 kA Interrupt, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A70QS400-4
- UPC:
- 782001948795
- Item #:
- 69201
A70QS400-4 Amp-Trap High Speed Semiconductor Fuse, 400 A, 690 V AC/700 V DC, 200/100 kA Interrupt, Cylindrical Body
- MFR #:
- A70QS400-4
- UPC:
- 782001948795
- Item #:
- 69201
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,013.61
each
High Speed Fuse Amp-Trap A70QS 700VAC 700VDC 400A Bolted Blade
Manuals and Documentation
| Catalog Number | A70QS400-4 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 400 |
| Application | Protection of 700V or less motor drives, UPS, inverters, etc. |
| Connection | Blade |
| Mounting | Bolt |
| Special Features | Very Low I2t for improved protection of equipment Superior cycling ability for long, reliable life on high cyclic loading Low watts loss for cooler operation 700V AC/DC rating gives greater design versatility Ultra compact sizes allow down-sizing of existing equipment |
| Standard | UL recognized component, AC/DC UL file E60314 AC: guide no. JFHR2 DC: tested to UL standard 198L parameters (35-800A) CSA certified File LR 12636 |
| UPC | 782001948795 |
| GTIN | 00782001948795 |
| Item Type | Round Body High-Speed Fuse-Links AC Protection |
| Size | 5.09 x 1.5 |
| Voltage Rating | 700 |
