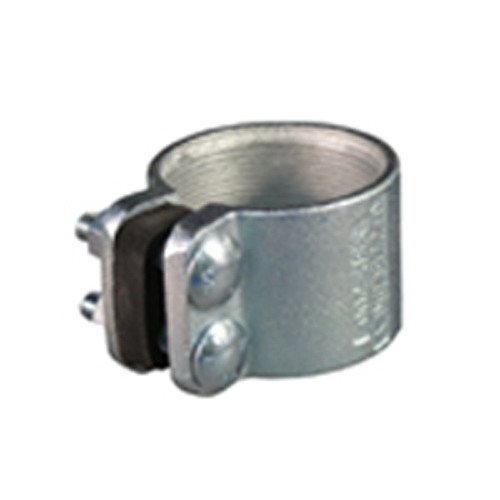

Rigid/IMC Conduit Split Coupling, 3-1/2 inch, Malleable Iron, Zinc Electroplate
- MFR:
- Appleton Electric
- MFR #:
- SCC-350
- UPC:
- 781381455664
- Item #:
- 69124
Rigid/IMC Conduit Split Coupling, 3-1/2 inch, Malleable Iron, Zinc Electroplate
- MFR #:
- SCC-350
- UPC:
- 781381455664
- Item #:
- 69124
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$516.36
each
Bolt-On SCC Series Split Coupling, Trade Size: 3-1/2 IN, Outside Diameter: 4.56 IN, Length: 5-3/4 IN, Flexibility: Rigid And IMC, Material: Malleable Iron Coupling, Steel Hardware, Neoprene Gasket, Connection: Threaded, Finish: Zinc Electroplate, Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1, For Threaded Rigid Conduit and IMC
Manuals and Documentation
| Catalog Number | SCC-350 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Threaded Rigid Conduit and IMC |
| Connection | Threaded |
| Flexibility | Rigid And IMC |
| Material | Malleable Iron Coupling, Steel Hardware, Neoprene Gasket |
| Special Features | Concretetight; Fast installation - slip bolt-on coupling over threaded end of one conduit section, butt the end of the second threaded conduit section to the first, slip bolt-on coupling to the center of the two conduit threads and tighten bolts; Provides a fast inexpensive method of joining two sections of threaded rigid conduit in areas of close conduit spacing, tight clearance locations and irregular conduit bends which may normally require an expensive union |
| Standard | UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1 |
| UPC | 781381455664 |
| GTIN | 00781381455664 |
| Item Type | SCC Series Split Coupling |
| Length | 5-3/4 |
| Length UOM | Inch |
| Outside Diameter | 4.56 IN |
| Trade Size | 3-1/2 IN |
