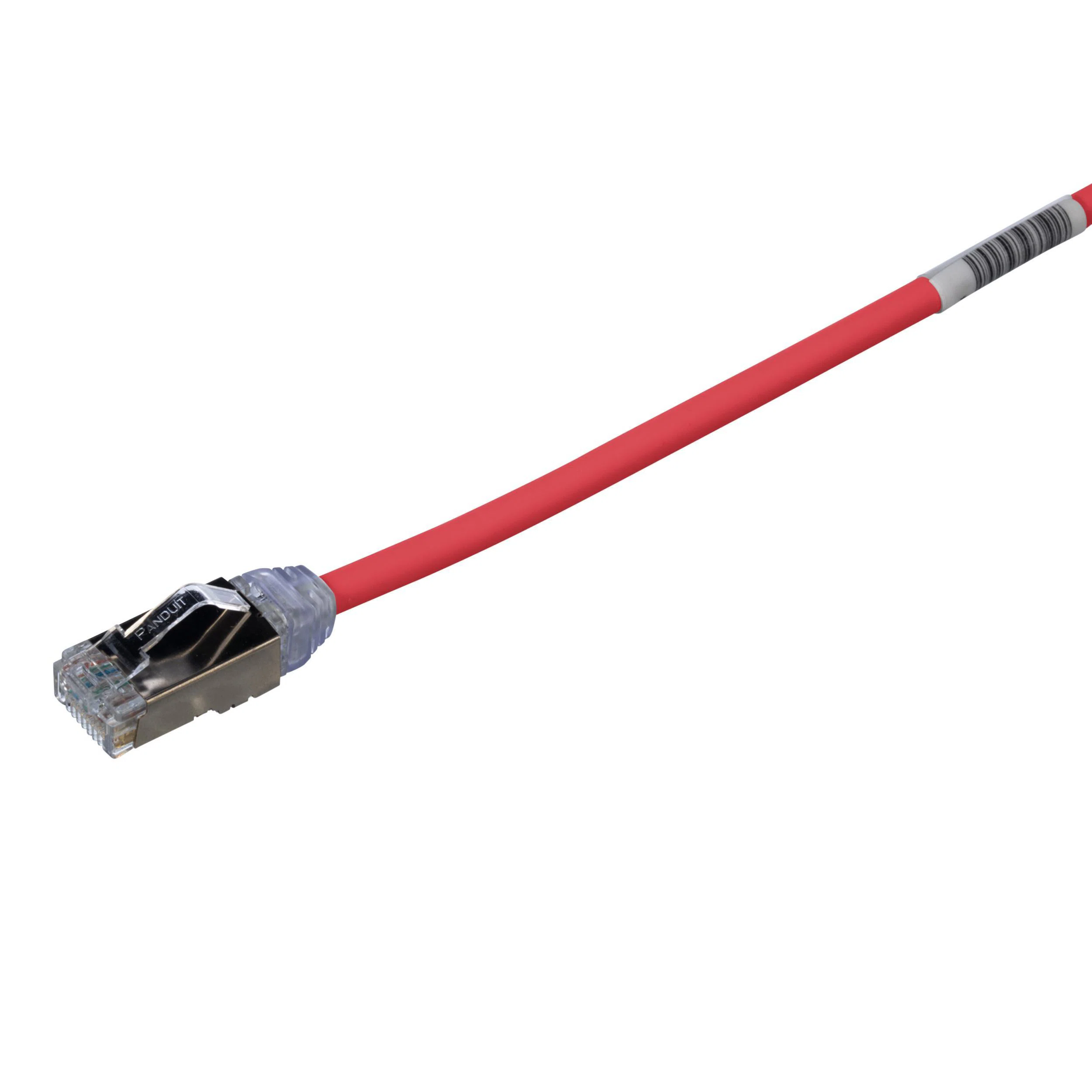

STP28X1MRD PanNet TX6A-28 Class EA Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Shielded Solid Copper Conductor, RJ45 Modular Plug Connector, 1 m L Cord, Red
- MFR:
- Panduit
- MFR #:
- STP28X1MRD
- UPC:
- 074983003242
- Item #:
- 689317
STP28X1MRD PanNet TX6A-28 Class EA Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Shielded Solid Copper Conductor, RJ45 Modular Plug Connector, 1 m L Cord, Red
- MFR #:
- STP28X1MRD
- UPC:
- 074983003242
- Item #:
- 689317
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$31.20
each
Cat 6A/class EA, F/UTP, small diameter patch cords are constructed of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. patch cords are offered in multiple lengths and colors for design flexibility.
Manuals and Documentation
Features
- 100% performance tested for wire map, next and return loss
- Centred de-embedded plug
- Patented tangle-free latch
- Smaller diameter, flexible cable design
- Robust construction
- Flexible cable design
- Meets all Cat 6A requirements (including alien crosstalk) with a cable diameter smaller than traditional Cat 5e, 6 and 6A shielded patch cords
- 100% performance tested for wire map, NEXT and return loss
- Integral pair manager
- Patented tangle free latch
- Provides identification of performance level, length and quality control number for future traceability
- Robust construction
| Manufacturer Part Number | STP28X1MRD |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983003242 |
| EAN | 0074983003242 |
| Category Type | Cat 6A |
| Color | Red |
| Conductor Size | 28 AWG |
| Conductor Type | F/UTP Shielded Solid Copper |
| Connector Type | RJ45 Modular Plug |
| Cord Length | 1 m |
| Jacket Color | Red |
| Series | STP28X |
| Temperature Rating | 14 to 167 deg F |
| Type | Class EA Small Diameter |
| Alternative Part Number | 9661662 | 9948980 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/8 | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ISO 11801 Class EA Edition 2.1, IEC 60603-7, IEEE 802.3af/802.3at, 802.3bt Type 3, Type 4 | cULus Listed | UL 1863, File No.E129886 | UL 94-V-0 Flammability Rating | CAN/CSA-C22.2, T568B | CE Certified |
| Application | 10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Backbone Aggregation, Parallel Processing, High Speed Computing and Shielded Applications |
