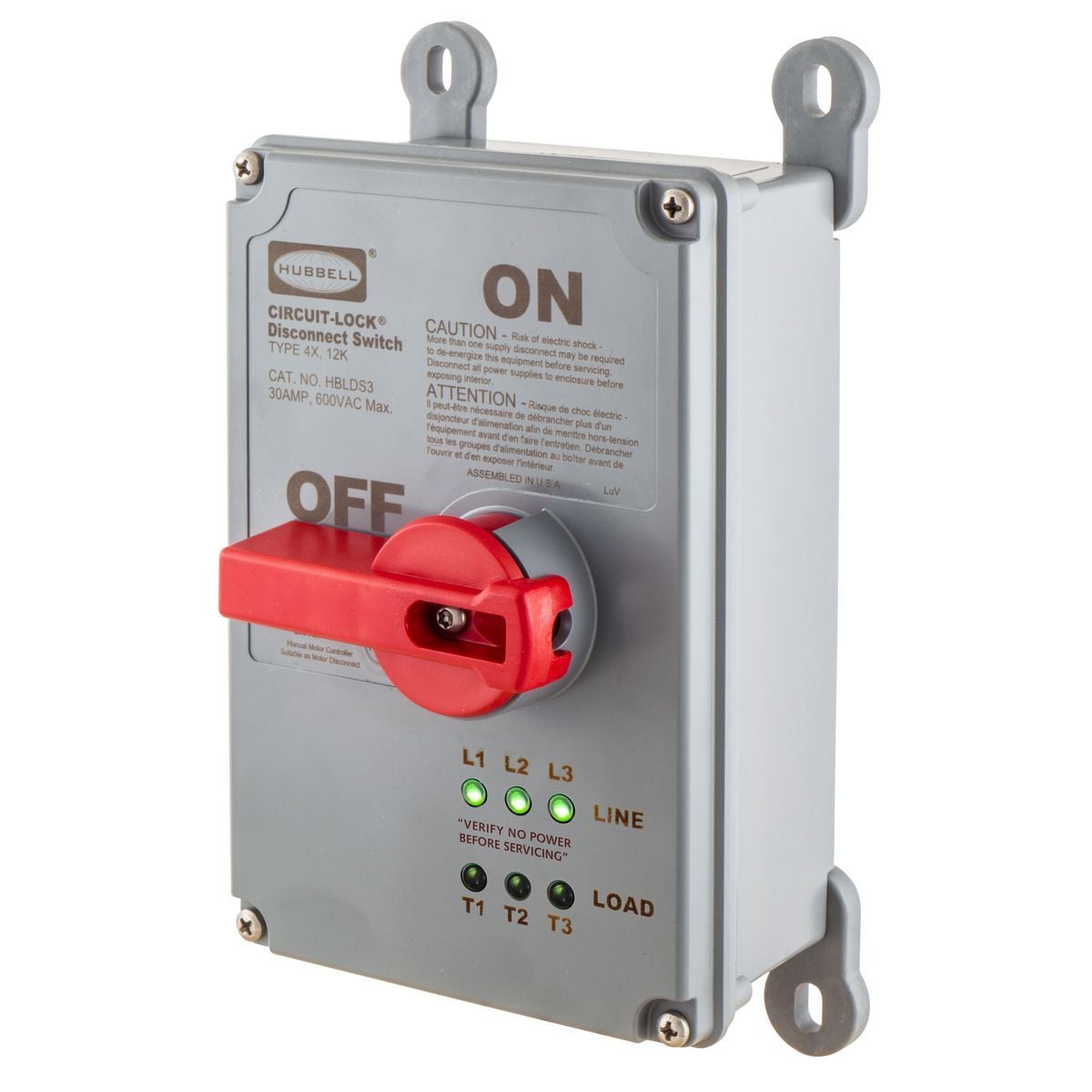

HBLDS3P Non-Metallic UnFusible Watertight Enclosed Disconnect Switch With LED Indicator, 480 VAC, 30 A, 15 hp, 3 Poles
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBLDS3P
- UPC:
- 783585365107
- Item #:
- 688823
HBLDS3P Non-Metallic UnFusible Watertight Enclosed Disconnect Switch With LED Indicator, 480 VAC, 30 A, 15 hp, 3 Poles
- MFR #:
- HBLDS3P
- UPC:
- 783585365107
- Item #:
- 688823
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$536.81
each
Hubbells new 30A Circuit-Lock Disconnect with integral phase indication LEDs redefines the benchmark for safety by providing insight into the enclosure while in use. Six highly visible LEDs (3 line side/3 load side) display the electrical status of the switch by phase. This voltage detection feature significantly improves existing safety and maintenance procedures by visually providing critical information, such as a welded contact or dropped phase, to personnel prior to removing the enclosure cover. With an ever-growing focus on safety improvements, Hubbell inSIGHT TM disconnects provide a difference you literally can see.
Manuals and Documentation
| Catalog Number | HBLDS3P |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Poland |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | LED Indicators / Labelless |
| Connection | Terminal Screws |
| Enclosure | Type 4X, IP69k |
| Material | Composite |
| Mounting | Mounting Feet |
| Number of Poles | 3 |
| Special Features | Switched |
| Standard | UL498 and IEC 60309 |
| UPC | 783585365107 |
| GTIN | 00783585365107 |
| Item Type | Disconnect Switches |
| Size | Standard Sized Product |
| Environmental Conditions | NEMA 4X, IP69K |
| Voltage Rating | 480V AC |
