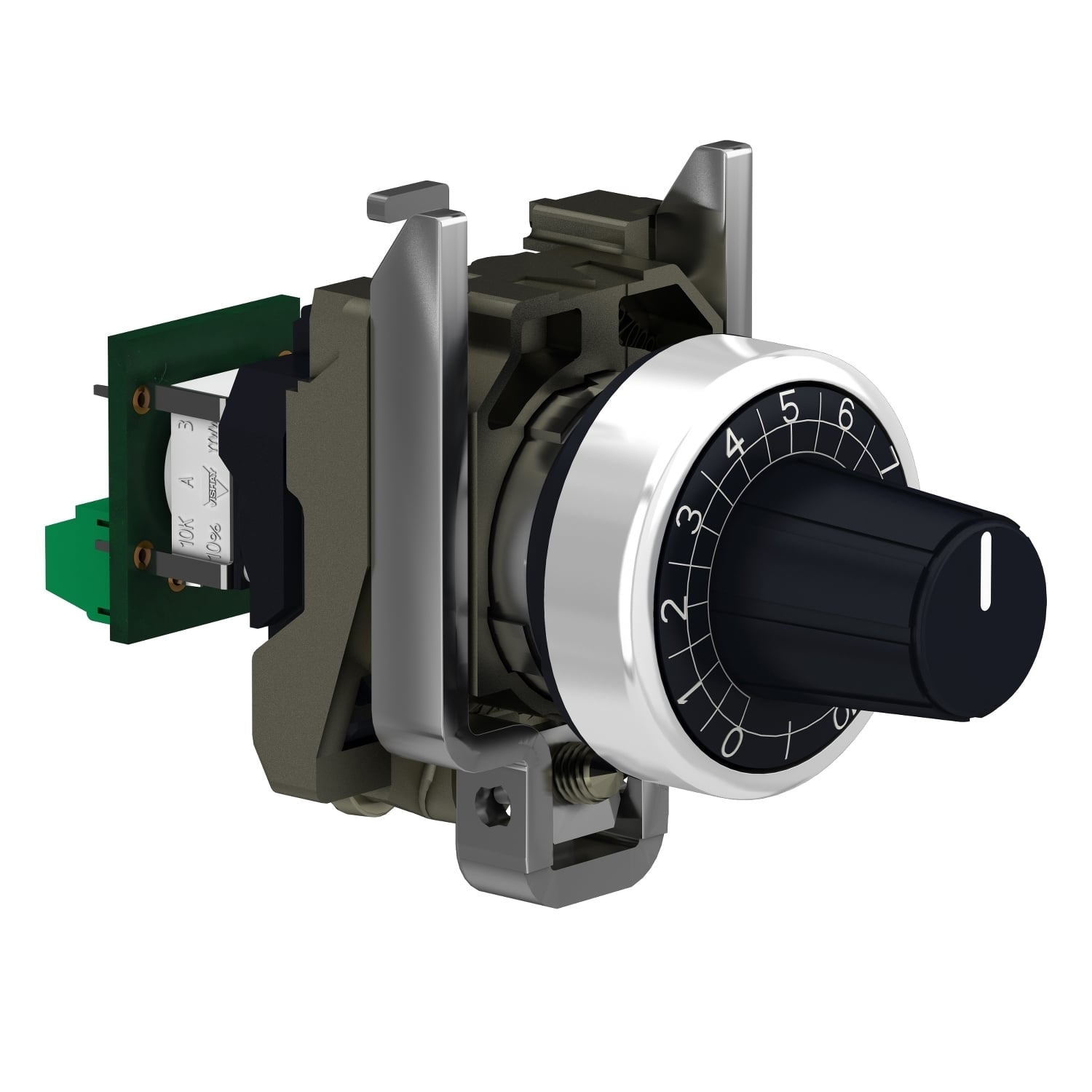

XB4BD912R4K7 Harmony Potentiometer, 30 V AC/42 V DC, 1 W Power Rating, 4700 Ohm
- MFR:
- Schneider Electric
- MFR #:
- XB4BD912R4K7
- Item #:
- 688039
XB4BD912R4K7 Harmony Potentiometer, 30 V AC/42 V DC, 1 W Power Rating, 4700 Ohm
- MFR #:
- XB4BD912R4K7
- Item #:
- 688039
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$60.30
each
This Harmony XB4 potentiometer has a resistance of 4.7k. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.
Manuals and Documentation
| Catalog Number | XB4BD912R4K7 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Country of Origin | United States |
| Made in USA | Yes |
| Actuator | knurled knob, with white) |
| Application | Ø 6 mm shaft |
| Material | Cermet;Chromium plated metal |
| Standard | CSA;UL Listed;BV;IK06 conforming to IEC 50102;CSA C22.2 No 14;IEC 60947-1;UL 508;30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27;5 gn 2-500 Hz)IEC 60068-2-6;IP66 IEC 60529;IP69 IEC 60529;IP69K IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=437982865&lang=en-us |
| GTIN | 03606480985003 |
| Item Type | Potentiometer |
| Voltage Rating | <= 30 V AC;<= 42 V DC |
