Telemecanique

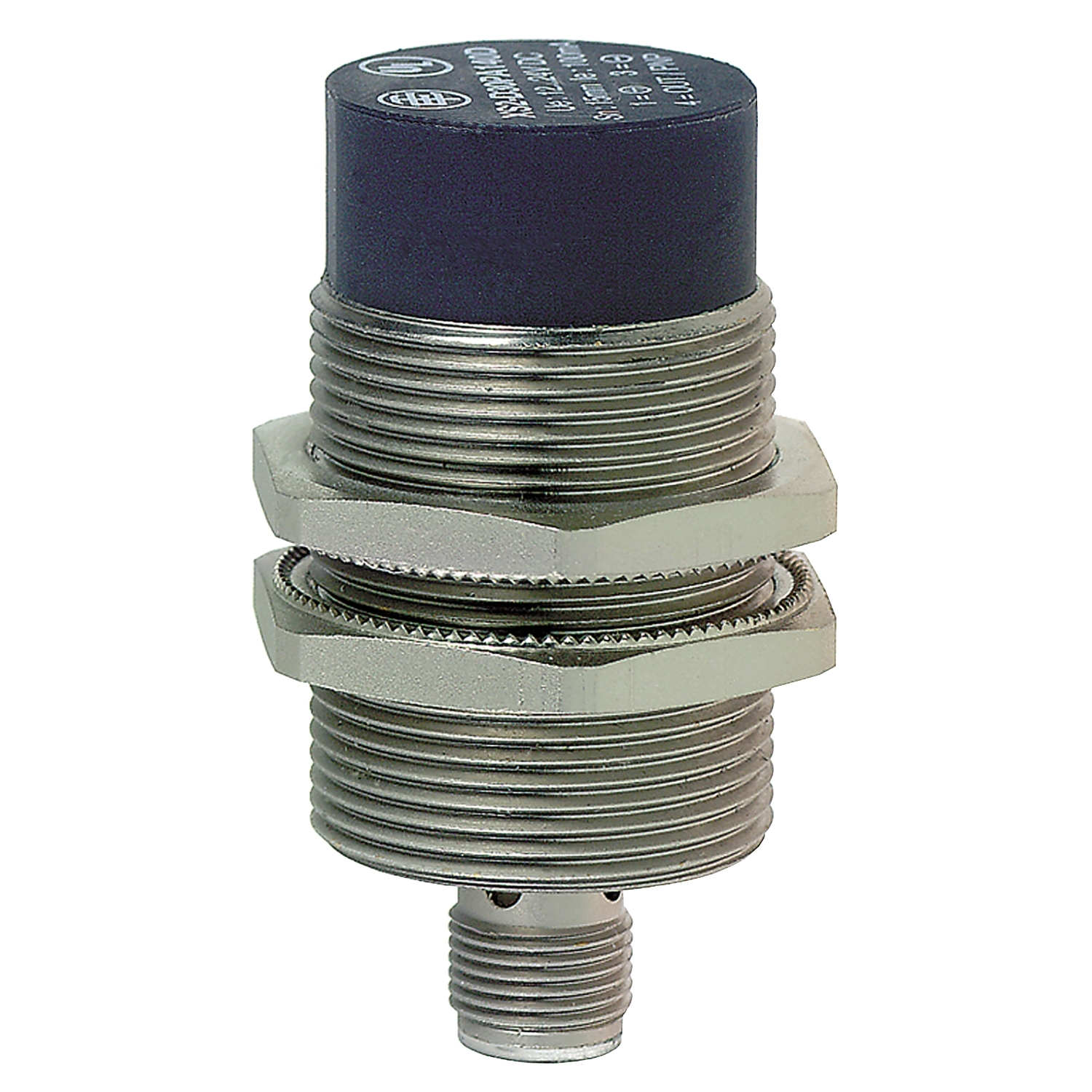

XS2M30MA250K OsiSense XS2 Series Cylindrical Fixed Form Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 24 to 240 V AC/24 to 210 V DC

MFR:
Telemecanique Sensors
MFR #:
XS2M30MA250K
UPC:
785901138747
Item #:
68743

Availability

Location Available Qty
Available 2 ea
$291.21 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. The advantages of inductive detection are numerous, no physical contact with the object to be detected. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a nickel plated brass case and a 1/2-20UNF connector. It has a sensing distance of 15mm. Two-wire, AC or DC supply with short-circuit protection, 24V to 240V, NO function.

Manuals and Documentation
Catalog Number XS2M30MA250K
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application 2-wire DC short-circuit protection
Connector Male connector 1/2"20 UNF, 3 pins
Control Output 1 NO
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow);supply on 1 LED green)
Material Metal
Mounting Flush
Sensing Range 15 MM,> 0.31...0.59 IN (> 8...15 MM)
Sensor 30 MM,75 MM,INDUCTIVE PROXIMITY SENSOR
Special Features SHORT-CIRCUIT PROTECTION
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 24...210 V DC;24...240 V AC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=868420&lang=en-us
UPC 785901138747
GTIN 03389110918229
Item Type Inductive proximity sensor;Cylindrical M30
Operating Temperature -25-70 A Degrees C
