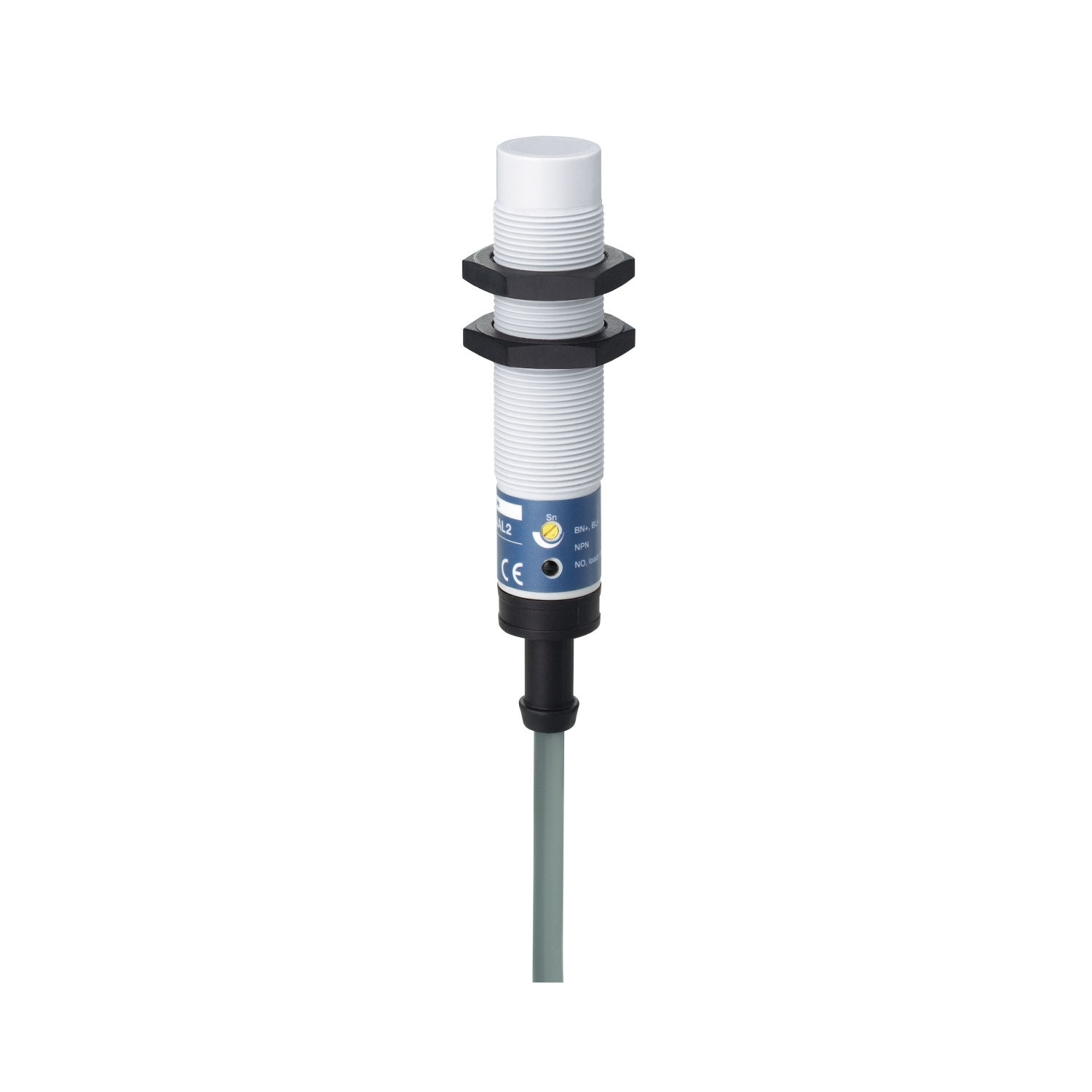

XT218A1FAL2 OsiSense XT 2-Wire Fixed Cylindrical Non-Shielded Capacitive Proximity Sensor, Capacitive, Discrete Output, 1NO Contact, 24 to 240 V AC
- MFR:
- Telemecanique Sensors
- MFR #:
- XT218A1FAL2
- UPC:
- 785901769415
- Item #:
- 687319
XT218A1FAL2 OsiSense XT 2-Wire Fixed Cylindrical Non-Shielded Capacitive Proximity Sensor, Capacitive, Discrete Output, 1NO Contact, 24 to 240 V AC
- MFR #:
- XT218A1FAL2
- UPC:
- 785901769415
- Item #:
- 687319
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$274.50
each
The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. For example, metals, minerals, wood, plastic, glass, cardboard, fluids, etc. This product is a cylindrical, non flush mountable sensor, with a sensing distance of 8mm. it features a plastic case, diameter 18mm, threaded M18 x 1 and a 2m long pre-cabled connection. 2-wire, 24V to 240V AC, with NO function. Output state indication by a yellow LED.
Manuals and Documentation
| Catalog Number | XT218A1FAL2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Detection of insulated or conductive materials |
| Connector | Cable |
| Enclosure | Plastic |
| Indicator | Output state indication 1 LED yellow) |
| Material | Plastic |
| Mounting | Flush |
| Sensing Range | 0.16...0.31 IN (4...8 MM) |
| Sensitivity | Sensitivity by potentiometer |
| Standard | IP67 double insulation conforming to IEC 60529;CE |
| Supply Voltage | 24...240 V AC 50...60 Hz |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7051365&lang=en-us |
| UPC | 785901769415 |
| GTIN | 03389119025973 |
| Item Type | Capacitive proximity sensor;Cylindrical M18 |
| Operating Temperature | -10-60 A Degrees C |
