Telemecanique

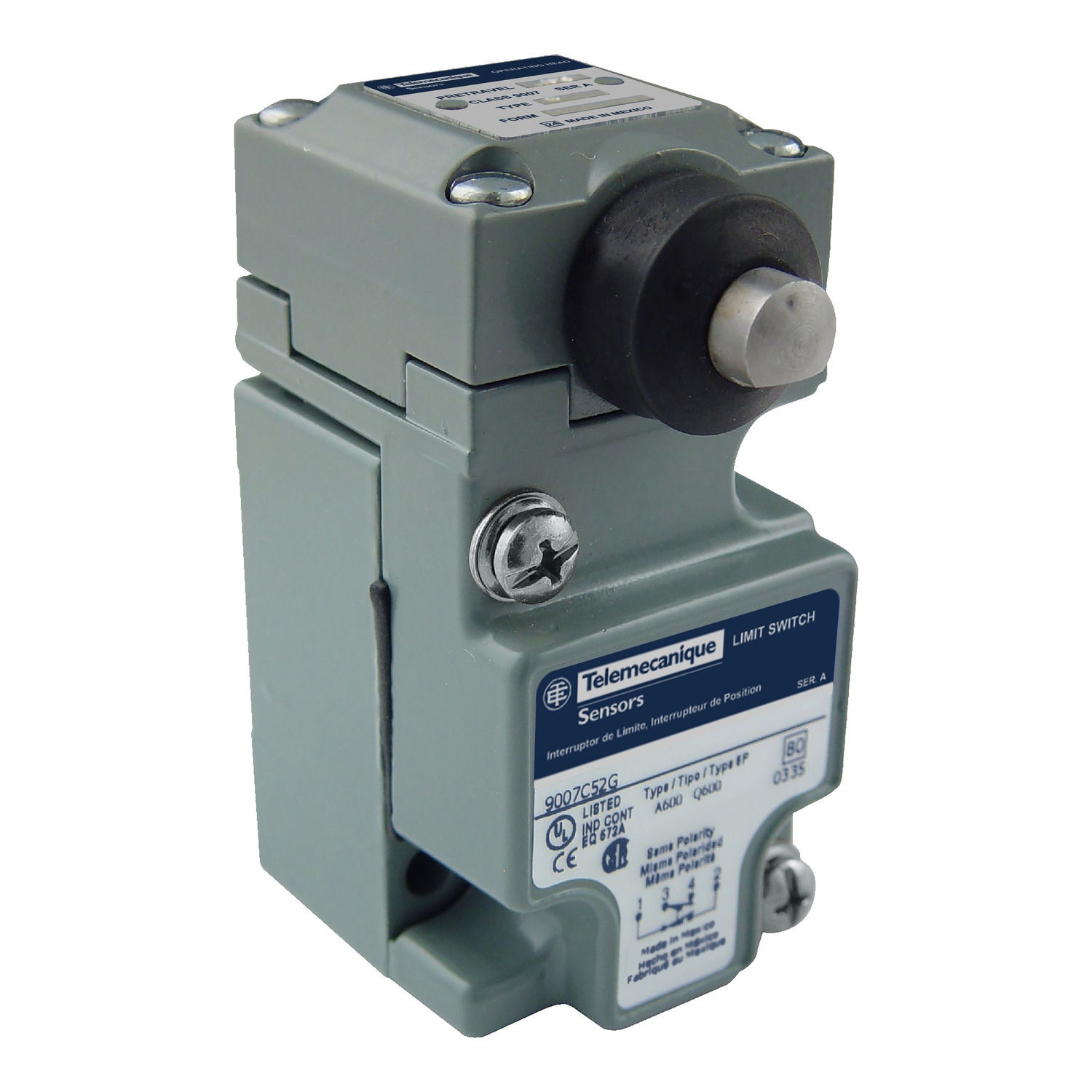

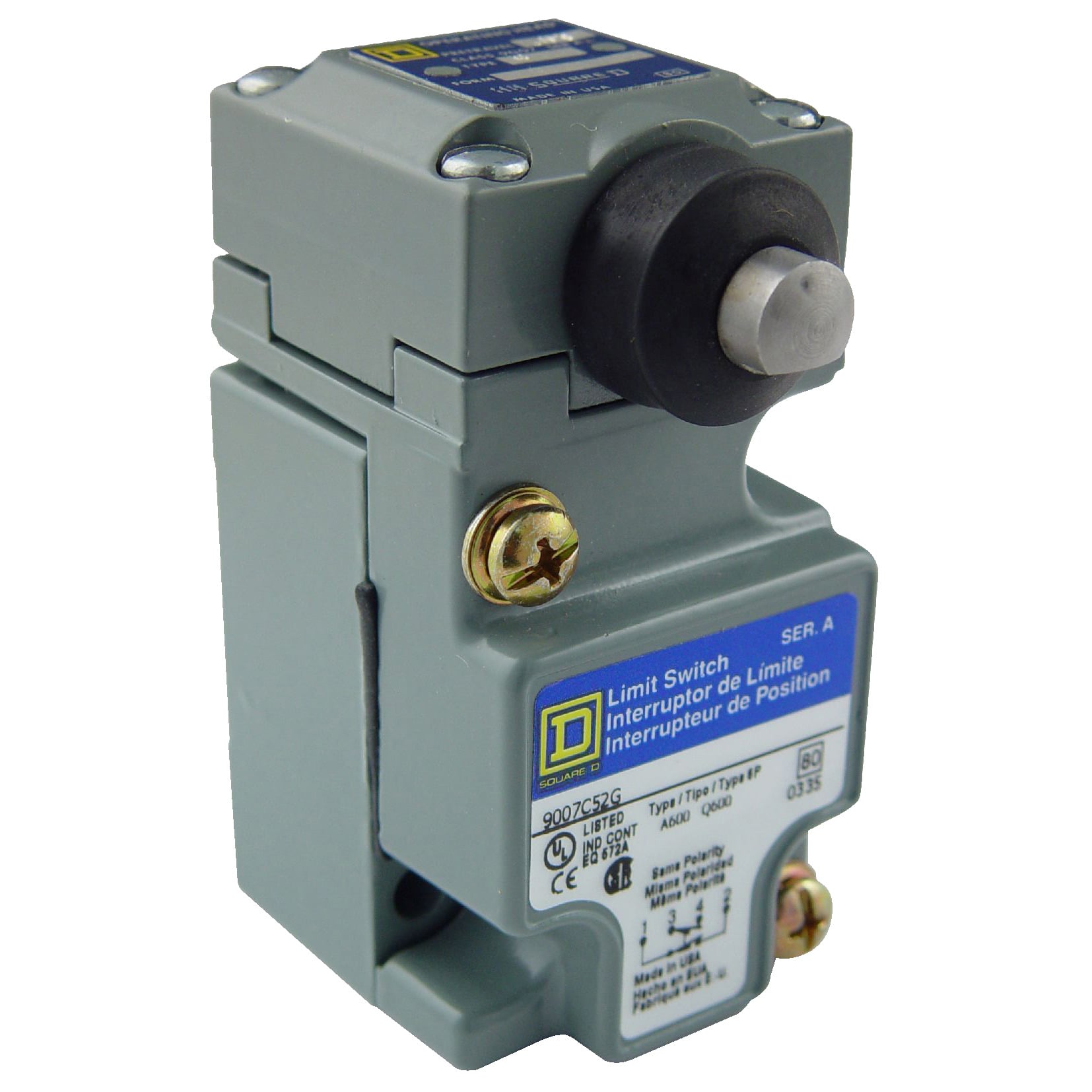

NEMA limit switch, 9007C, heavy duty, compact, steel spring return side plunger, 10A, 600V, 1NO/1NC, NEMA 4, 6P, 12, 13

MFR:
Telemecanique Sensors
MFR #:
9007C52G
UPC:
785901783459
Item #:
68499

Availability

Location Available Qty
Available Available to Order
$342.22 each

NEMA limit switch, 9007C, heavy duty, compact, steel spring return side plunger, 10A, 600V, 1NO/1NC, NEMA 4, 6P, 12, 13

Manuals and Documentation
Catalog Number 9007C52G
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action On end;Lateral approach, 1 direction;Snap action
Actuator Stainless steel spring return side plunger -)
Amperage Rating 10
Application Compact box
Connection Screw-clamp terminals AWG 22...AWG 12), 1-2
Contact Configuration NC-NO;Form Z
Contact Rating NEMA A600/Q600
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Number of Poles 1
Operating Cycles 1000000 CYCLES
Special Features without
Standard 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901783459
GTIN 00785901783459
Item Type Limit switch
Size 2.16
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F STANDARD ENVIRONMENT
Voltage Rating 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA-0.27 A 250 V AC, Q600 NEMA-0.55 A 125 V DC, Q600 NEMA
