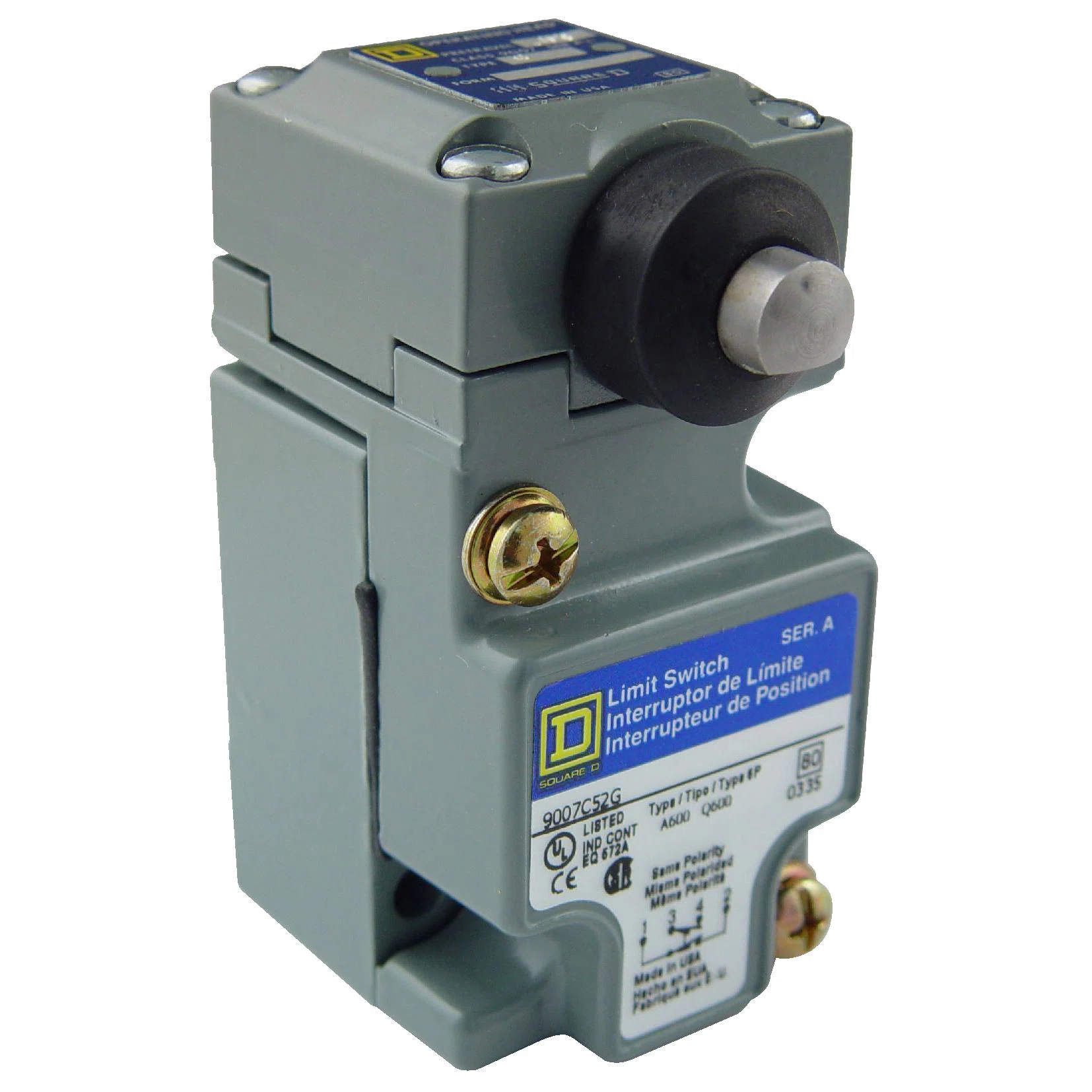

NEMA limit switch, 9007C, heavy duty, compact, steel spring return side plunger, 10A, 600V, 1NO/1NC, NEMA 4, 6P, 12, 13
- MFR:
- Schneider Electric
- MFR #:
- 9007C52G
- UPC:
- 785901783459
- Item #:
- 68499
NEMA limit switch, 9007C, heavy duty, compact, steel spring return side plunger, 10A, 600V, 1NO/1NC, NEMA 4, 6P, 12, 13
- MFR #:
- 9007C52G
- UPC:
- 785901783459
- Item #:
- 68499
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$342.22
each
Our proven line of 9007 Series limit switches can withstand the impact of heavy industry. We offer you the most comprehensive offer of limit switches, rugged and dependable, built with unparalleled quality.
Manuals and Documentation
Features
- 9007C heavy duty metal limit switches compact and standard 39 mm plug in bodies or 69 mm fixed body for hazardous location
- With more than 20 heads and 200 levers styles this family offer a wide range of options
- Heavy-duty industrial switch designed to meet domestic and international standards
- Miniature enclosed switches, potted and pre-wired with cable
- One cable entry for 1/2-14 NPT conforming to ANSI B1.20.1
- Without positive opening
- 1.2 A at 600 VAC for A600 NEMA, 1.5 A at 480 VAC for A600 NEMA, 3 A at 240 VAC for A600 NEMA, 6 A at 120 VAC for A600 NEMA, 0.1 A at 600 VDC for Q600 NEMA, 0.27 A at 250 VAC for Q600 NEMA, 0.55 A at 125 VDC for Q600 NEMA
| Manufacturer Part Number | 9007C52G |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901783459 |
| EAN | 0785901783459 |
| Country Of Origin | MX |
| Amperage Rating | 10 A |
| Enclosure Type | NEMA 2/4/6/6P/12/13/IP67 |
| Finish | Epoxy Powder Coated |
| Material | Metal/Zinc |
| Mounting Type | Plug-In |
| Series | 9007C |
| Type | Heavy Duty Linear |
| Voltage Rating | 600 V AC/DC |
| Size | 1.55 x 2.16 x 3.14 in |
| Alternative Part Number | 8029451 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | ANSI B1.20.1 | ECCN EAR99 | CE Marked | CSA Certified | IEC 60068-2-6 | IEC 60068-2-27 | IEC 60529 | IEC 61140 | REACH Compliant | UL Listed | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP) which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | For material handling such as mechanical conveying, automotive, machine tool and packaging |
| Action | Snap/Lateral |
| Actuator | Side Plunger |
| Connection Type | 1/2-14 NPT Cable Entry/Screw Clamp |
| Contact Configuration | 1CO SPDT-DB |
| Contact Rating | 1.2 A at 600 V AC/0.1 A at 600 V DC |
| Environmental Conditions | -20 to 185 deg F Storage Temperature |
| Number Of Poles | 1 |
| Operating Cycles | 1000000 Cycles |
| Operating Temperature | -20 to 185 deg F |
