Panduit

UTPCH1BUY PanNet TX5e U/UTP Patch Cord, Cat 5e, 24 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 1 ft L Cord

MFR:
Panduit
MFR #:
UTPCH1BUY
UPC:
074983062942
Item #:
67872

Availability

Location Available Qty
Available Available to Order
$11.09 each

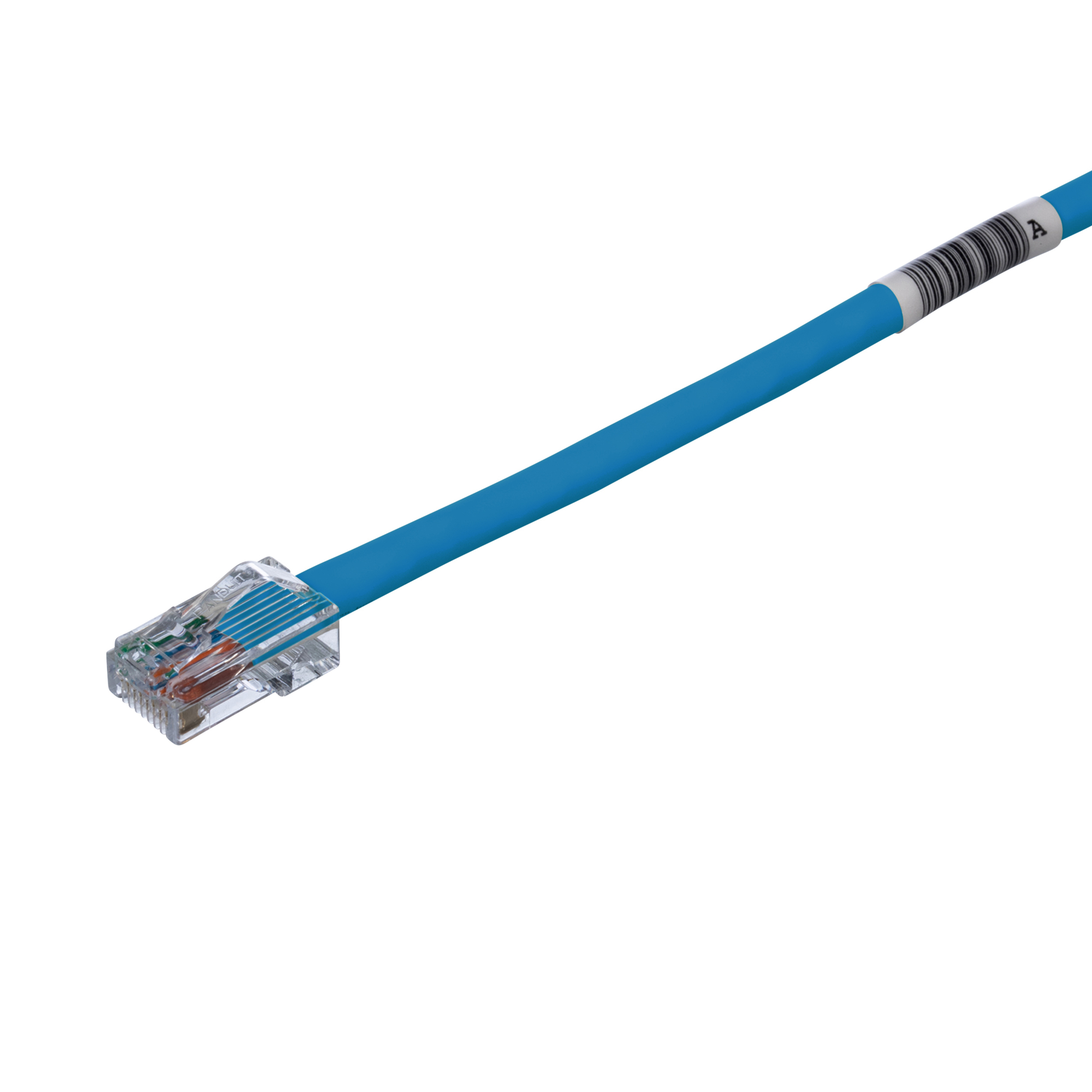

The TX5e Cat 5e UTP Patch Cord is a 1-Foot, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTPCH1BUY
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Color Blue
Conductor Material Copper
Jacket Material Polyvinyl Chloride
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/8
UPC 074983062942
GTIN 00074983062942
Item Type Patch Cord
Length 1.00
Length UOM Inch
Outside Diameter 0.215 IN
Temperature Rating 140 °F
Wire Size 24
