Appleton

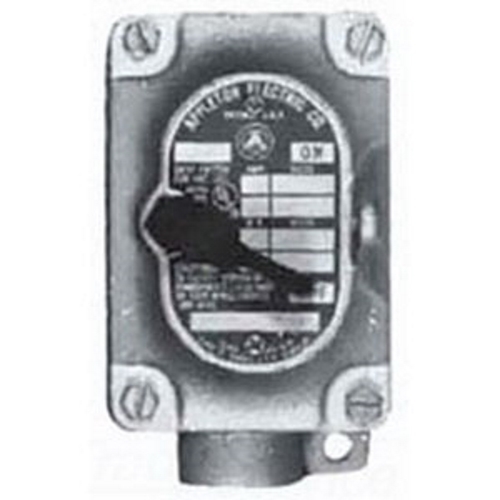

Dead-End Explosion-Proof Tumbler Switch, 120 - 277 VAC, 20 A, 2-Pole

MFR:
Appleton Electric
MFR #:
EFS175-F2
UPC:
781381279802
Item #:
67671

Availability

Location Available Qty
Available Available to Order
$405.25 each

EFS Series 1-Gang Tumble switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 2, Actuator: Front Operated, Enclosure: NEMA 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.53 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present

Manuals and Documentation
Catalog Number EFS175-F2
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Enclosure NEMA 7CD, 9EFG
Mounting Surface
Special Features Enclosures have external mounting lugs for ease of mounting; Furnished with Internal Ground Screw; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Explosionproof, dust-Ignitionproof; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; EFS Non-Sealed Front Operated Tumbler Switches
Standard UL 894, UL 1203, E10523, E81751 UL Listed; Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
UPC 781381279802
GTIN 00781381279802
Item Type EFS Series 1-Gang Tumble switch
Voltage Rating 120 - 277
