Mersen

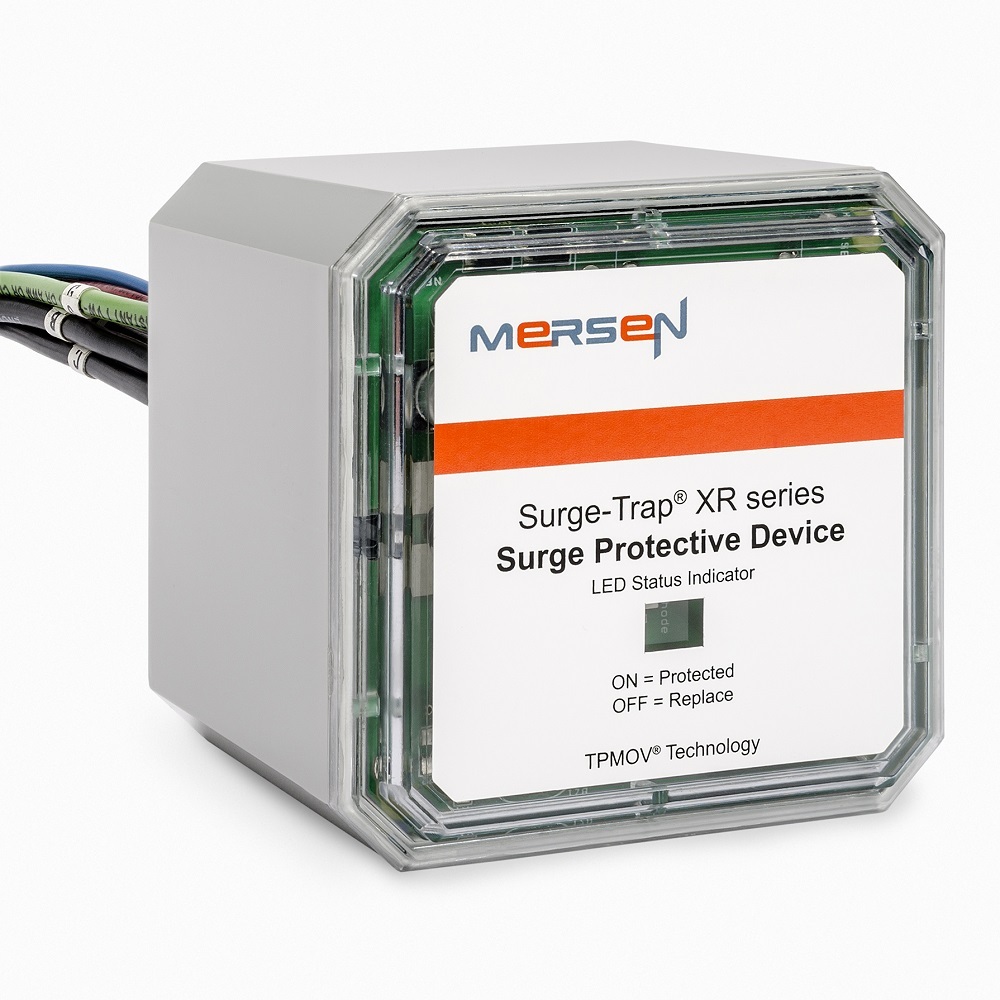

STXR480D05 Surge-Trap STXR Surge Protective Device, 480 V AC, 50/60 Hz, 200 kA SCCR, 3 Phase

MFR:
Mersen
MFR #:
STXR480D05
UPC:
782001469917
Item #:
675287

Availability

Location Available Qty
Available Available to Order
$642.03 each

The most popular range in the STX series offering, the Surge-Trap Type 1 STXR meets requirements for UL1449 Fourth Edition and is ideal for the replacement of older surge arrestors. The STXR Series SPD feature TPMOV technology inside making them the safest product available. With a small, compact design and line or load installation flexibility the STXR series is the perfect fit for branch panel and/or individual equipment protection., 480V, L-G, L-L, 3-Phase Delta, 50 kA per phase

Manuals and Documentation
Catalog Number STXR480D05
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Application Suitable for any Type 1 or 2 SPD application
Connection Pre-wired with 3 ft 12 AWG conductors
Insulation Polycarbonate
Mounting Panel Mount
Short Circuit Rating 200 KA
Special Features Designed with the industry leading Mersen TPMOV® Technology LED status indicator (ON = Good, OFF = Replace) NEMA 4X enclosure for outdoor or indoor use Fits 3/4" knockouts with 3' leads for easy installation Optional mounting bracket for surface mount applications Optional audible alarm and remote dry contacts For use in ANSI/UL Type 1 or 2 SPD installations Up to 10 modes of Protection (L-N, L-L, L-G optional, N-G optional) 5-year warranty
Standard ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection
UPC 782001469917
GTIN 00782001469917
Type of Indicators LED and Remote Audible Alarm
Voltage Rating 480
