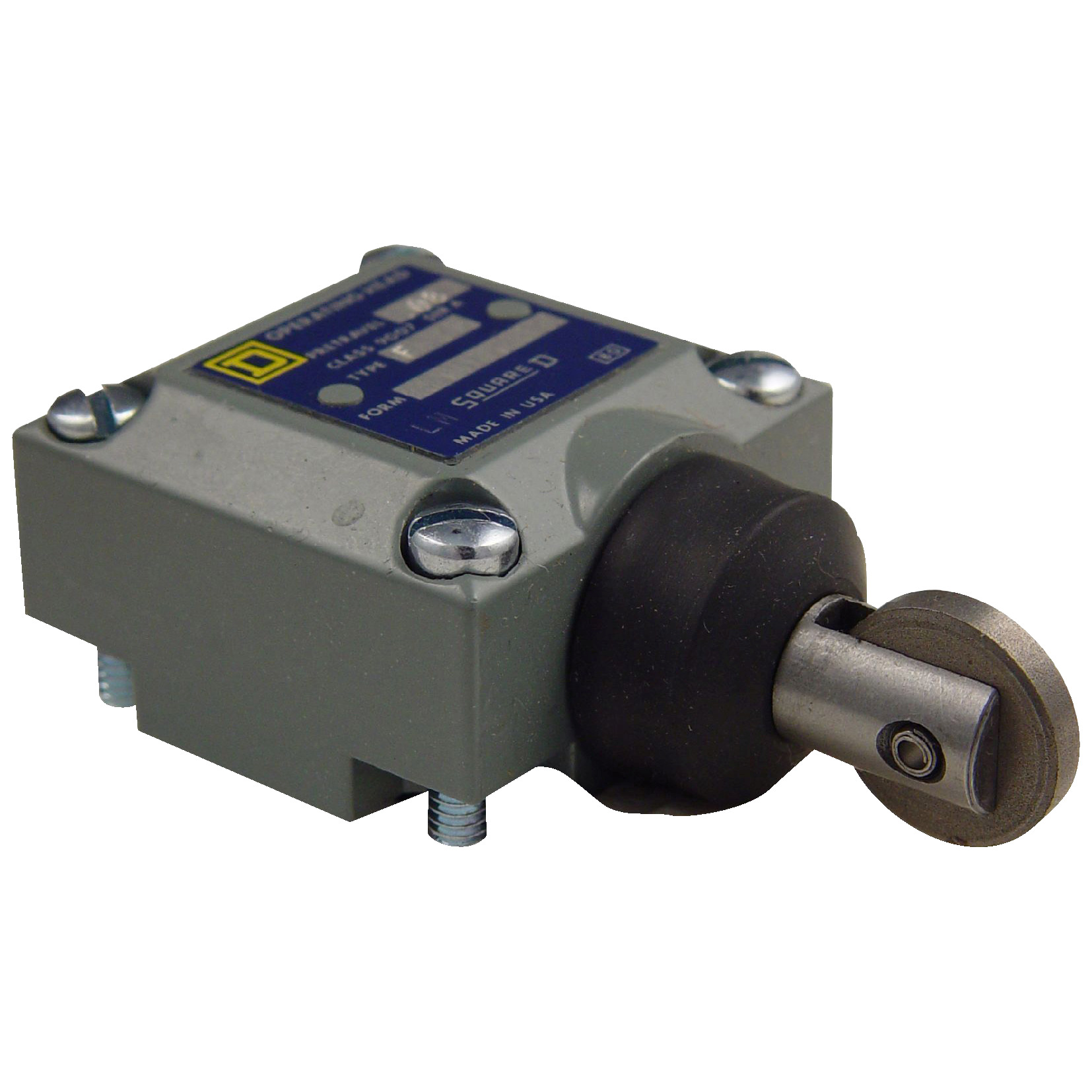

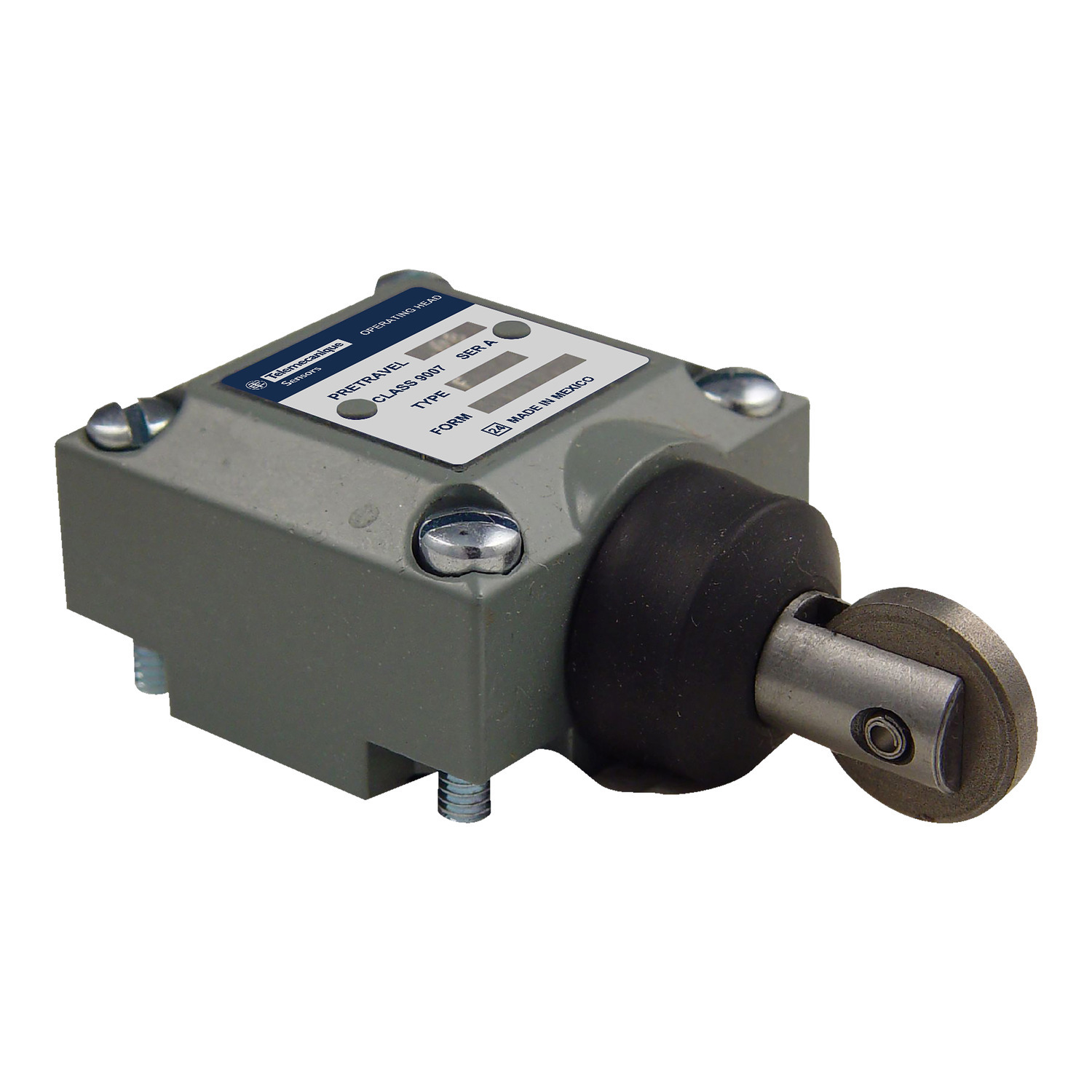

NEMA limit switch, 9007C, side roller plunger spring return head, vertical roller

MFR:
Telemecanique Sensors
MFR #:
9007F
UPC:
785901500780
Item #:
67315

Availability

Location Available Qty
Available Available to Order
$180.48 each

These industrial heavy duty limit switches are applied in almost any environments. This replacement side roller plunger limit switch head can be used on any of the 9007C bodies types. The limit switch head will actuate the snap action contacts as the side roller plunger comes in contact with a cam that forces the plunger to move. This limit switch head is NEMA 1, 2 4, 6, 6P, 12 and 13 rated when properly assembled to a 9007C body. It is also rated IP67. Limit switch head is UL listed and CSA certified. It weighs 0.16kg. It is compatible with 9007C heavy duty metal limit switches. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Manuals and Documentation
Catalog Number 9007F
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Vertical approach, 2 directions;By 30 Degrees cam
Actuator Spring return side roller plunger with vertical roller steel vertical convertible to horizontal
Application 9007C
Standard UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=377211&lang=en-us
UPC 785901500780
GTIN 00785901500780
Item Type Limit switch head
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature 0-185 A Degrees F
