Hubbell Wiring Device - Kellems

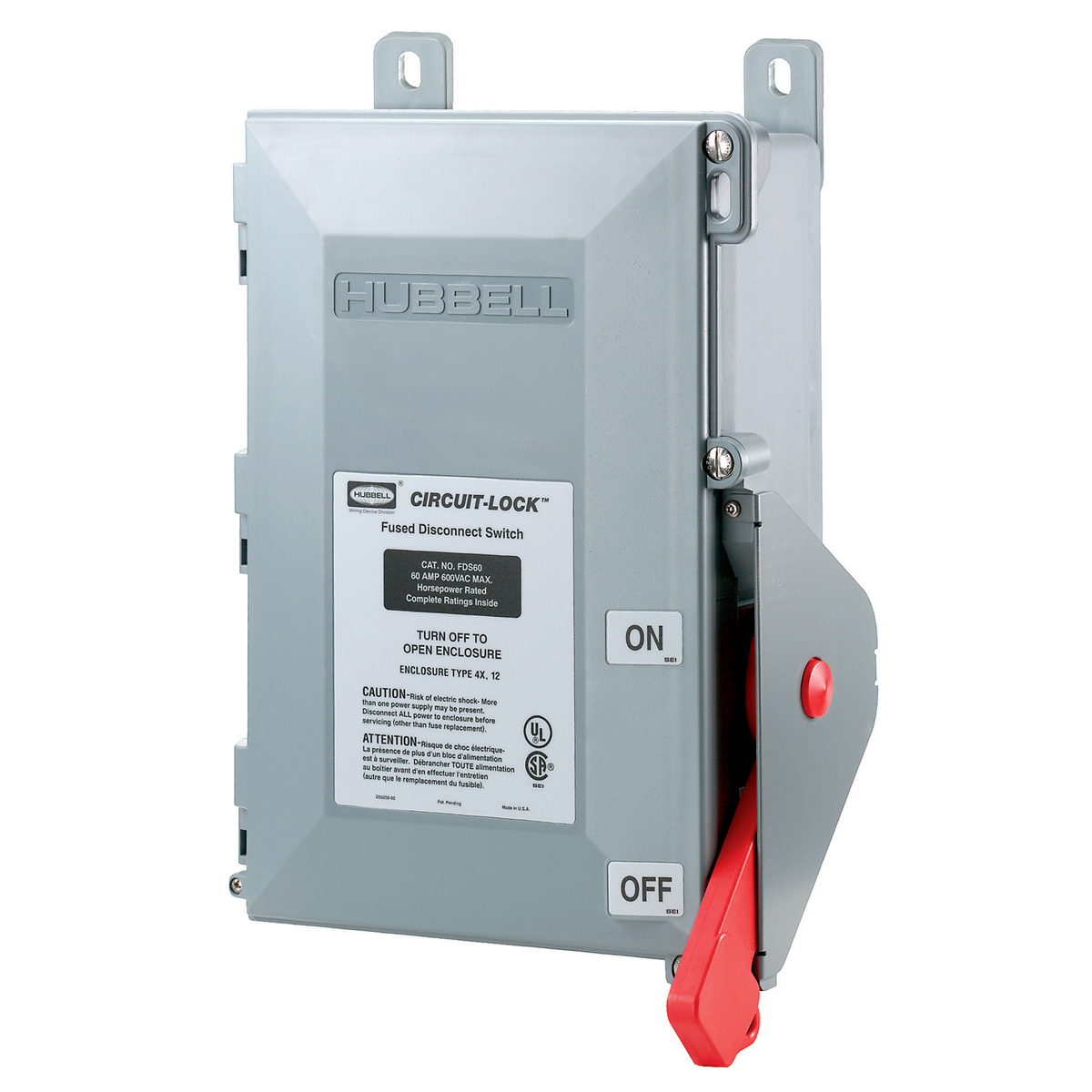

FDS60 Extra Heavy Duty Fused Non-Metallic Standard Disconnect Switch, 600 V AC, 60 A, 40 hp, 3 Poles

MFR:
Hubbell Wiring Device-Kellems
MFR #:
FDS60
UPC:
783585519609
Item #:
67250

Availability

Location Available Qty
Available Available to Order
$1,674.58 each

The Circuit-Lock Fused Disconnect Switch provides fused switched control of a directly wired load. The switch cannot be turned ON unless the enclosure cover is closed. The fuses cannot be accessed until the switch is turned OFF. The fuse holder accepts Class J fuses. This enclosure is non-metallic and is listed for Outdoor/Indoor (Type 4X Wash down, Corrosion resistant). The handle can be locked in the OFF position to comply with OSHA Lockout/Tagout regulations.

Manuals and Documentation
Catalog Number FDS60
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Poland
Made in USA No
Action Snap
Actuator Lever
Amperage Rating 60
Application Extra Heavy Duty Industrial
Connection Terminal Screws
Contact Rating 60A
Frequency Rating 60Hz
Material Composite
Mounting Mounting Feet
Number of Poles 3
Operating Cycles 6,000 Cycles
Special Features Fused
Standard UL Listed
UPC 783585519609
GTIN 00783585519609
Item Type Disconnect Switches
Size 15.36 in x 11.46 in x 8.43 in
Environmental Conditions Indoor Dry unless protected by additional means
Operating Temperature Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact
