Telemecanique

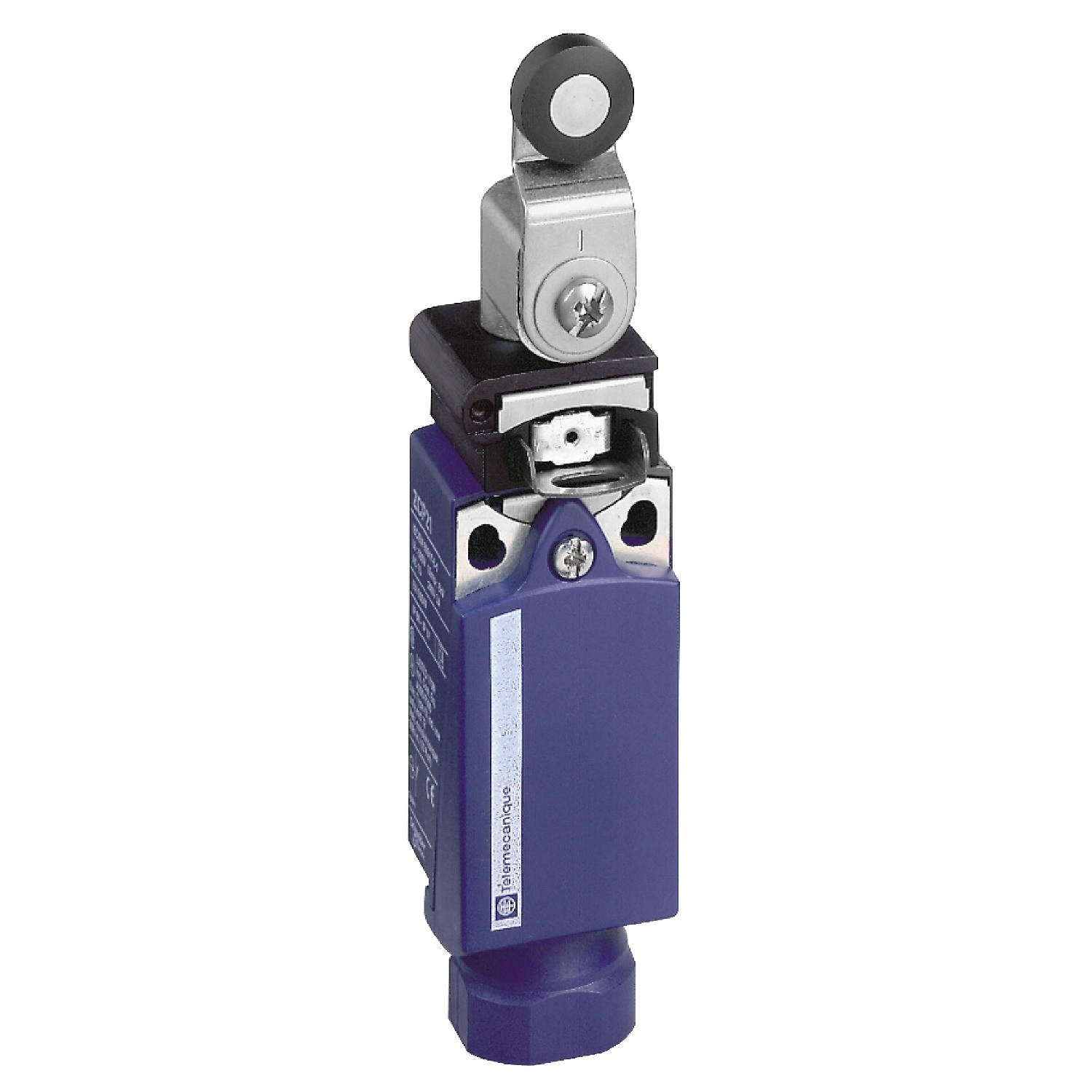

XCPR2518P20 OsiSense XC Standard Format Fixed Limit Switch, Roller Lever Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCPR2518P20
Item #:
669917

Availability

Location Available Qty
Available Available to Order
$92.63 each

limit switch XCPR - thermoplastic roller lever - 1NC+1NO - slow - M20

Manuals and Documentation
Catalog Number XCPR2518P20
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 2 directions;Slow-break, break before make;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic
Application COMPACT VARIABLE MANUAL RESET
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL,IEC 60204-1-IEC 60947-5-1-EN 60204-1-CSA C22.2 NO 14-UL 508-EN 60947-5-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858146&lang=en-us
GTIN 03389110210729
Item Type Limit switch
Size 1.18
Operating Temperature -25-70 A Degrees C
