Discontinued

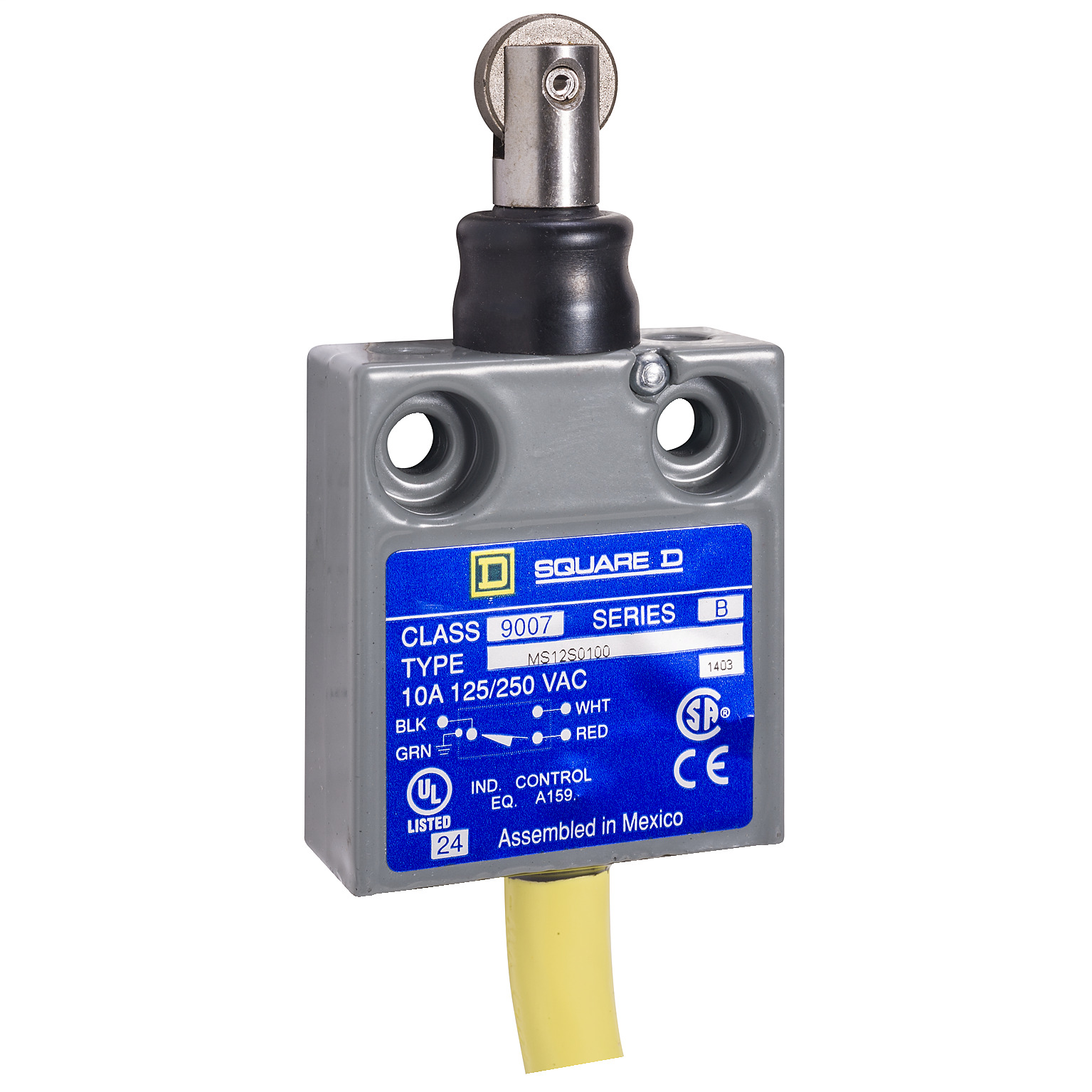

9007MS limit switch - parallel roller plunger - booted - 18' bottom cable
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007MS12S0500
- UPC:
- 785901428657
- Item #:
- 66972
Discontinued
9007MS limit switch - parallel roller plunger - booted - 18' bottom cable
- MFR #:
- 9007MS12S0500
- UPC:
- 785901428657
- Item #:
- 66972
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
9007MS limit switch - parallel roller plunger - booted - 18' bottom cable
Manuals and Documentation
| Catalog Number | 9007MS12S0500 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | BY 30A Degrees CAM,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION |
| Actuator | SPRING RETURN PARALLEL ROLLER PLUNGER STEEL BOOTED |
| Amperage Rating | 10 |
| Application | 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD |
| Connection | PRE-WIRED CABLE BOTTOM |
| Contact Configuration | NC-NO |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250 |
| Mounting | By The Body |
| Operating Cycles | 100000 CYCLES |
| Special Features | FIXED,METAL |
| Standard | 10 GN 75-1200 HZ)IEC 60529,35 GN 9 MS IEC 60068-2-27,CE-CSA-UL,E78403-LR 25490 CLASS 32 11 03,IP67 IEC 60529 |
| UPC | 785901428657 |
| GTIN | 00785901428657 |
| Item Type | LIMIT SWITCH,PLUNGER HEAD |
| Size | 0.62 IN,1.56 IN,1.75-1.75 IN |
| Operating Temperature | -40-220 A Degrees F |
| Voltage Rating | 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC |
